Toyota SUPRA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01121×6i198601-198808

PQ16R

main90919-01145×6i198608-198808

PQ20R

19500COIL ASSY, IGNITION

main90919-02154i198601-198808

main90919-02174×3i198608-198808

19519COVER, IGNITION COIL

main19509-42010i198608-198808

main19519-43010i198601-198808

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21384i198601-198808

main90919-22176i198608-198808

19901ACORD, COIL RESISTIVE

main90919-13252i198601-198808

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12640i198608-198808

main90919-12652i198601-198808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12641i198608-198808

main90919-12653i198601-198808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12642i198608-198808

main90919-12654i198601-198808

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12643i198608-198808

main90919-12655i198601-198808

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12644i198608-198808

main90919-12656i198601-198808

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12645i198608-198808

main90919-12657i198601-198808

19941CLAMP, RESISTIVE CORD, NO.1

main19941-42010i198601-198808

main90929-01140i198608-198808

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00424i198601-198808

main90929-01141i198608-198808

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00425×2i198601-198808

19949CLAMP, RESISTIVE CORD, NO.5

main90929-01129i198601-198808

9046400343

main90464-00343

9165140616

main91651-40616

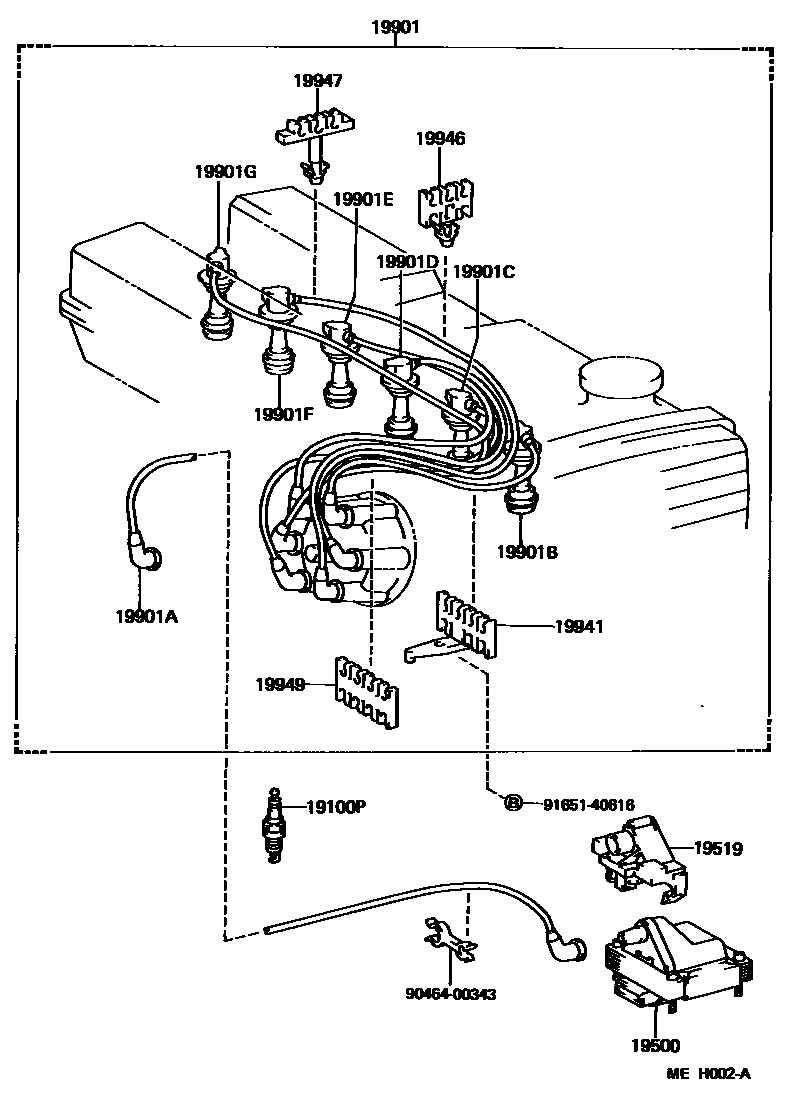

17 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota SUPRA

This section contains 31 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota SUPRA. Key components include: COIL ASSY, W/BRACKET & CORD, BUSH(FOR IGNITION COIL BRACKET), SPACER(FOR IGNITION COIL BRACKET), PLUG, SPARK, COIL ASSY, IGNITION.
