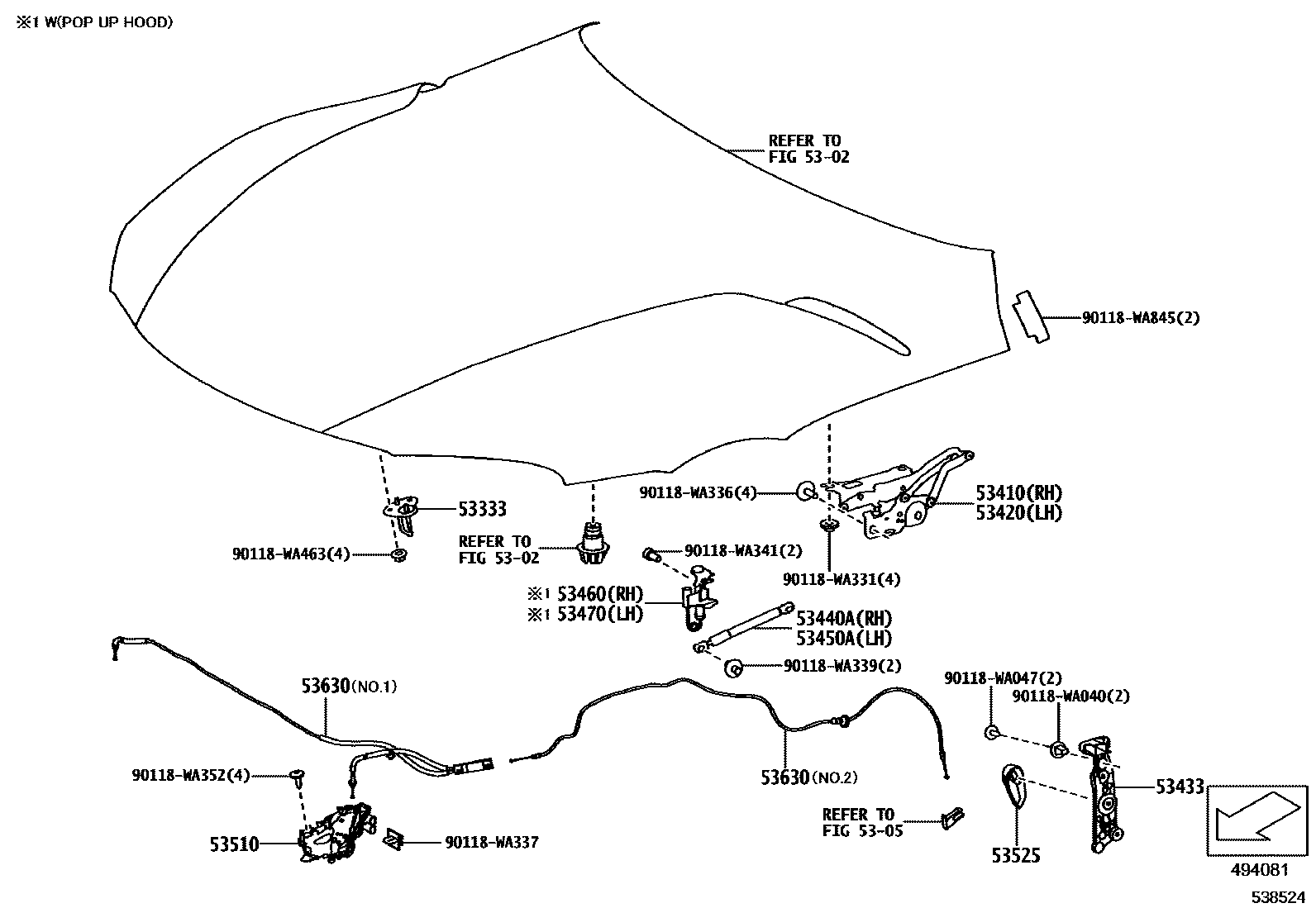

Toyota SUPRA — HOOD LOCK & HINGE

Parts diagram

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53333STRIKER, HOOD LOCK

main53306-WAA01×2i202207

53410HINGE ASSY, HOOD, RH

main53410-WAA01i202207

53420HINGE ASSY, HOOD, LH

main53420-WAA01i202207

53433BRACKET, HOOD SUPPORT

main55771-WAA01i202207

53440ASUPPORT ASSY, HOOD, RH

main53440-WAA01i202207

53450ASUPPORT ASSY, HOOD, LH

main53440-WAA01i202207

53510LOCK ASSY, HOOD

main53510-WAA01i202207

RH

main53510-WAA03i202207

LH

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53601-WAA01i202207

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WAA01i202207

NO.1

main63630-WAA01i202207

NO.2

90118WA040

main90118-WA040

90118WA047

main90118-WA047

90118WA331

main90118-WA331

90118WA336

main90118-WA336

90118WA339

main90118-WA339

90118WA352

main90118-WA352

90118WA463

main90118-WA463

90118WA845

main90118-WA845

19 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota SUPRA

This section contains 19 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota SUPRA. Key components include: HOOD & FRONT FENDER, FLOOR SIDE MEMBER, STRIKER, HOOD LOCK, HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH.
