Toyota SUPRA — HEADLAMP
81110HEADLAMP ASSY, RH
81110SSEALED BEAM UNIT, NO.1
12V 65/35W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905050
main90189-05050
9165160650
main91651-60650

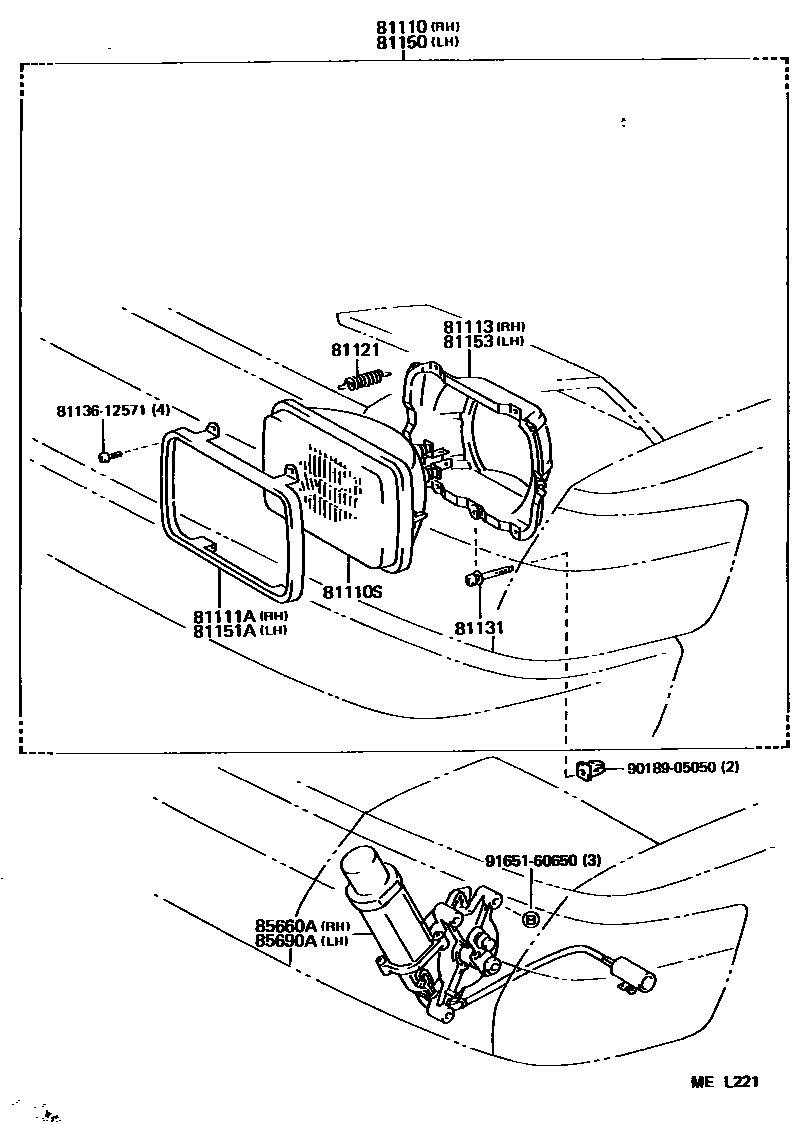

14 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota SUPRA
This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota SUPRA. Key components include: HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH, SPRING, HEADLAMP TENSION.
