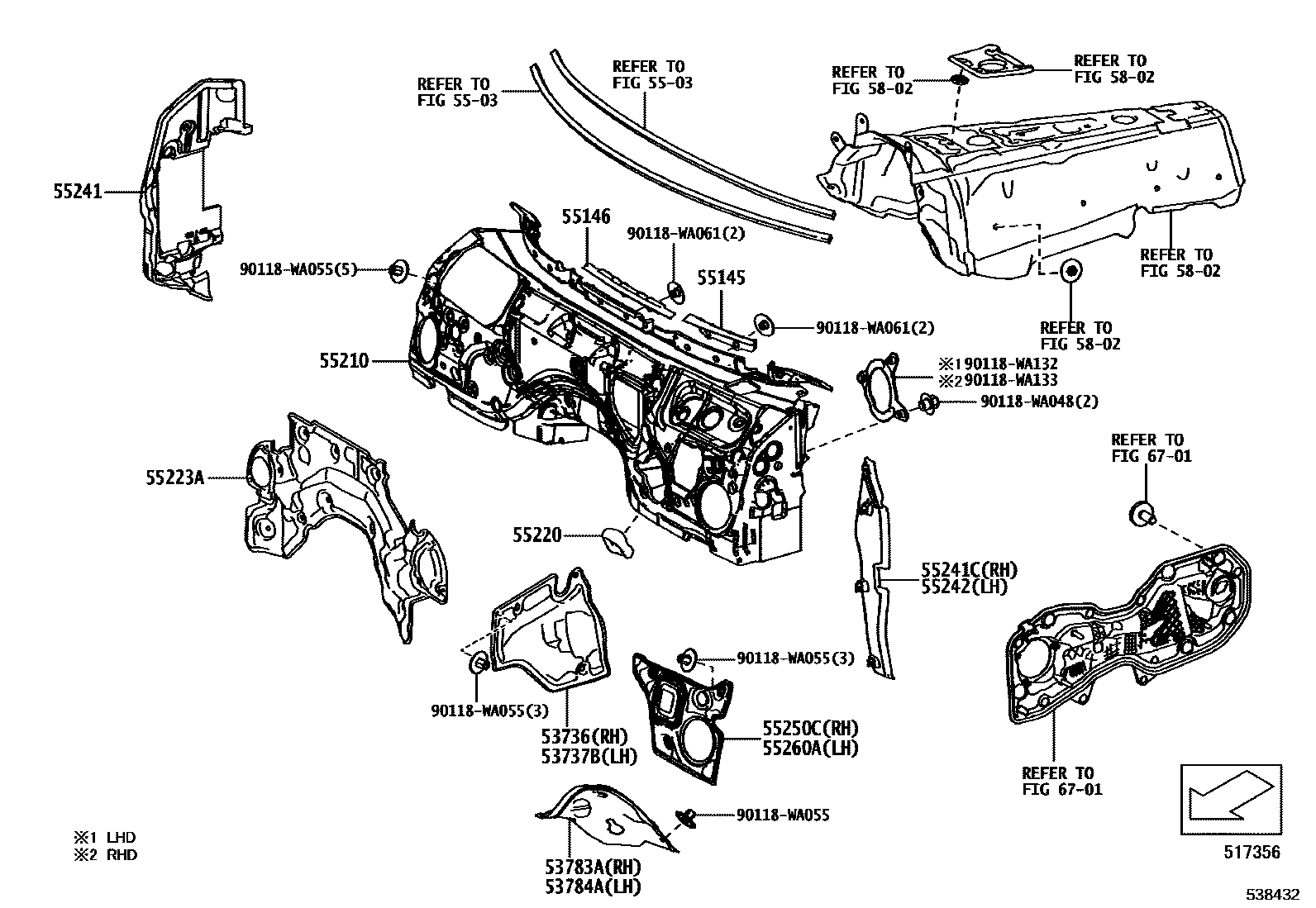

Toyota SUPRA — FRONT FENDER APRON & DASH PANEL
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53783AINSULATOR, APRON FRONT FENDER, RH
53784AINSULATOR, APRON FRONT FENDER, LH
5503COWL PANEL & WINDSHIELD GLASS
55145PLATE, DASH PANEL HEAT INSULATOR
LH
RH
55146INSULATOR, DASH PANEL HEAT
55220INSULATOR ASSY, DASH PANEL, NO.2
55223AINSULATOR, DASH PANEL, OUTER
55241SILENCER, FRONT PANEL SIDE, NO.1 RH
55241CSILENCER, FRONT PANEL SIDE, NO.1 RH
55242SILENCER, FRONT PANEL SIDE, NO.1 LH
55250CINSULATOR ASSY, DASH PANEL, LOWER RH
55260AINSULATOR ASSY, DASH PANEL, LOWER LH
5802FLOOR INSULATOR
6701FRONT DOOR PANEL & GLASS
90118WA048
main90118-WA048
90118WA055
main90118-WA055
90118WA061
main90118-WA061
90118WA132
main90118-WA132
90118WA133
main90118-WA133
22 parts on this diagram · 6 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota SUPRA
This section contains 79 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SUPRA. Key components include: ROD SUB-ASSY, RADIATOR BRACE, FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT, RADIATOR, RH, SUPPORT, RADIATOR, LH.
