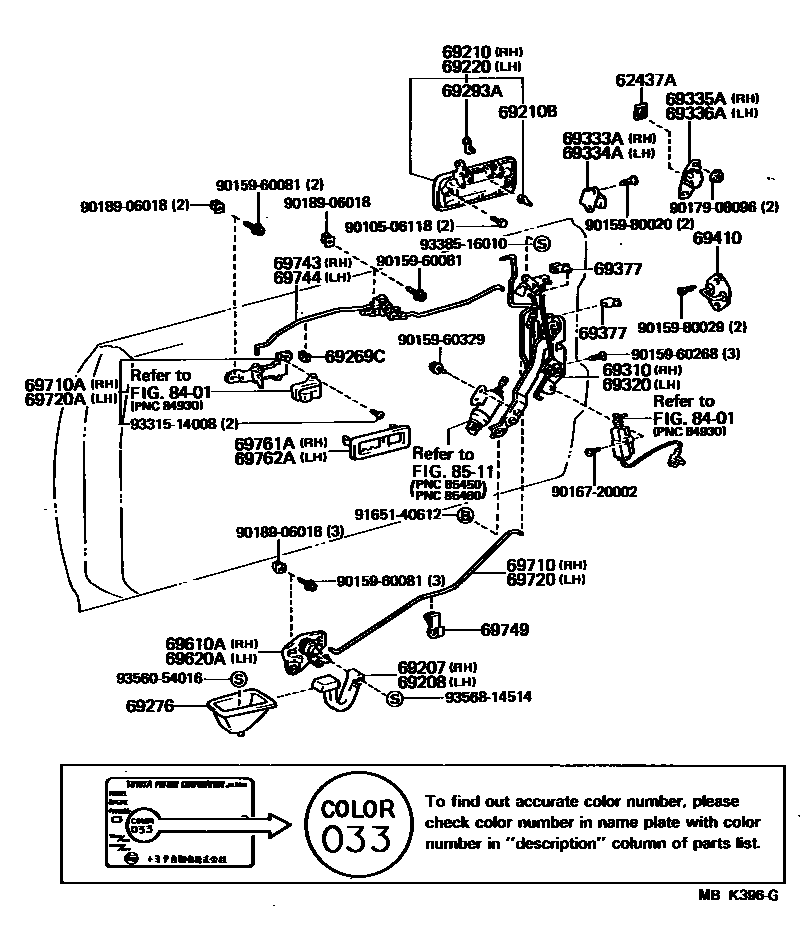

Toyota SUPRA — FRONT DOOR LOCK & HANDLE
62437APROTECTOR, BASE EDGE, NO.1
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69276BEZEL, FRONT DOOR INSIDE HANDLE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69333ASTABILIZER, DOOR MALE, RH
69334ASTABILIZER, DOOR MALE, LH
69335ASTABILIZER, DOOR FEMALE, RH
69336ASTABILIZER, DOOR FEMALE, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH
69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
8401SWITCH & RELAY & COMPUTER
8511DOOR MOTOR & DOOR SOLENOID
9010506118
main90105-06118
9015960081
main90159-60081
9015960268
main90159-60268
9015960329
main90159-60329
9015980020
main90159-80020
9015980029
main90159-80029
9016720002
main90167-20002
9017908096
main90179-08096
9018906018
main90189-06018
9165140612
main91651-40612
9331514008
main93315-14008
9338516010
main93385-16010
9356054016
main93560-54016
9356814514
main93568-14514
44 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota SUPRA
This section contains 44 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SUPRA. Key components include: PROTECTOR, BASE EDGE, NO.1, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
