Toyota SUPRA — FRONT AXLE HUB

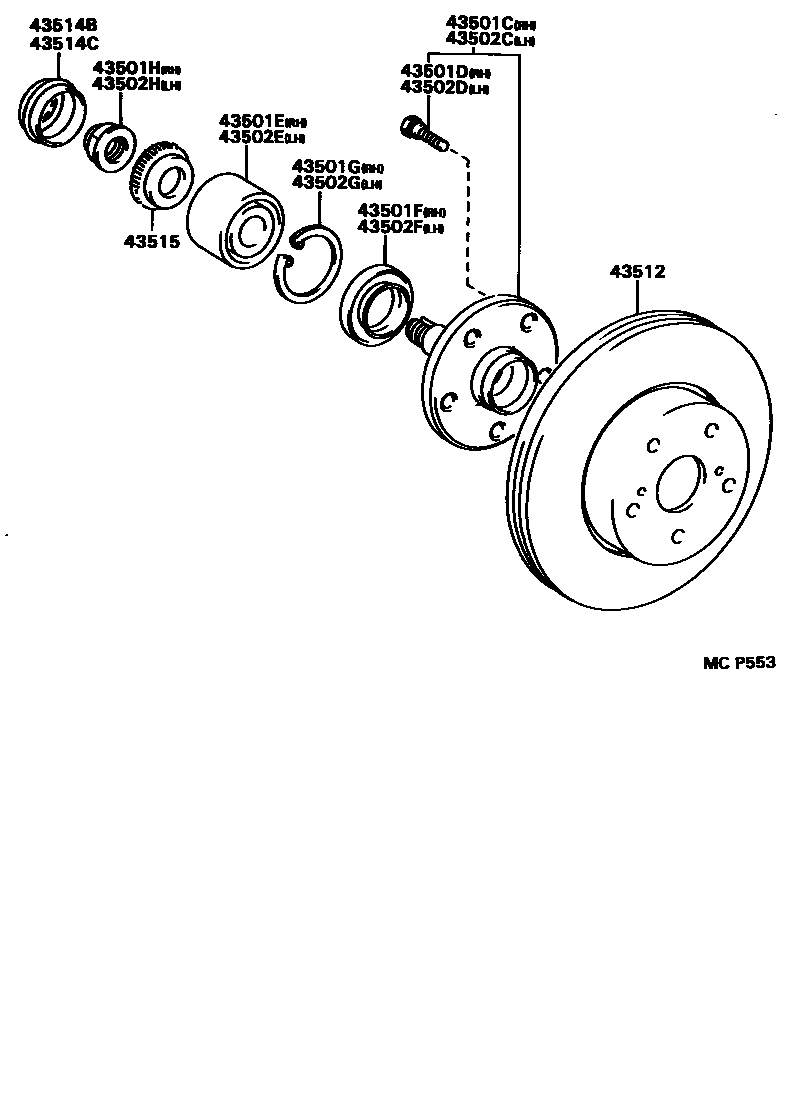

Parts diagram
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-30140i199305-199808
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02070×5i199305-199808
43501EBEARING (FOR FRONT AXLE HUB RH)
main90369-35034i199305-199310
main90903-63006i199310-199607
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90311-50008i199305-199808
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-82001i199305-199808
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90179-24005i199305-199808
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-30140i199305-199808
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02070×5i199305-199808
43502EBEARING (FOR FRONT AXLE HUB LH)
main90369-35034i199305-199310
main90903-63006i199310-199607
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
main90311-50008i199305-199808
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-82001i199305-199808
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90179-24005i199305-199808
43512DISC, FRONT
main43512-14190×2i199305-199808
main43512-14200i199305-199808
RH
main43516-14030i199305-199808
LH
43514BCAP, FRONT AXLE HUB GREASE, RH
main43514-24010i199305-199808
43514CCAP, FRONT AXLE HUB GREASE, LH
main43514-24010i199305-199808
43515ROTOR, SKID CONTROL, FRONT
main43515-24010×2i199305-199808

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SUPRA

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SUPRA. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), SEAL, OIL (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
