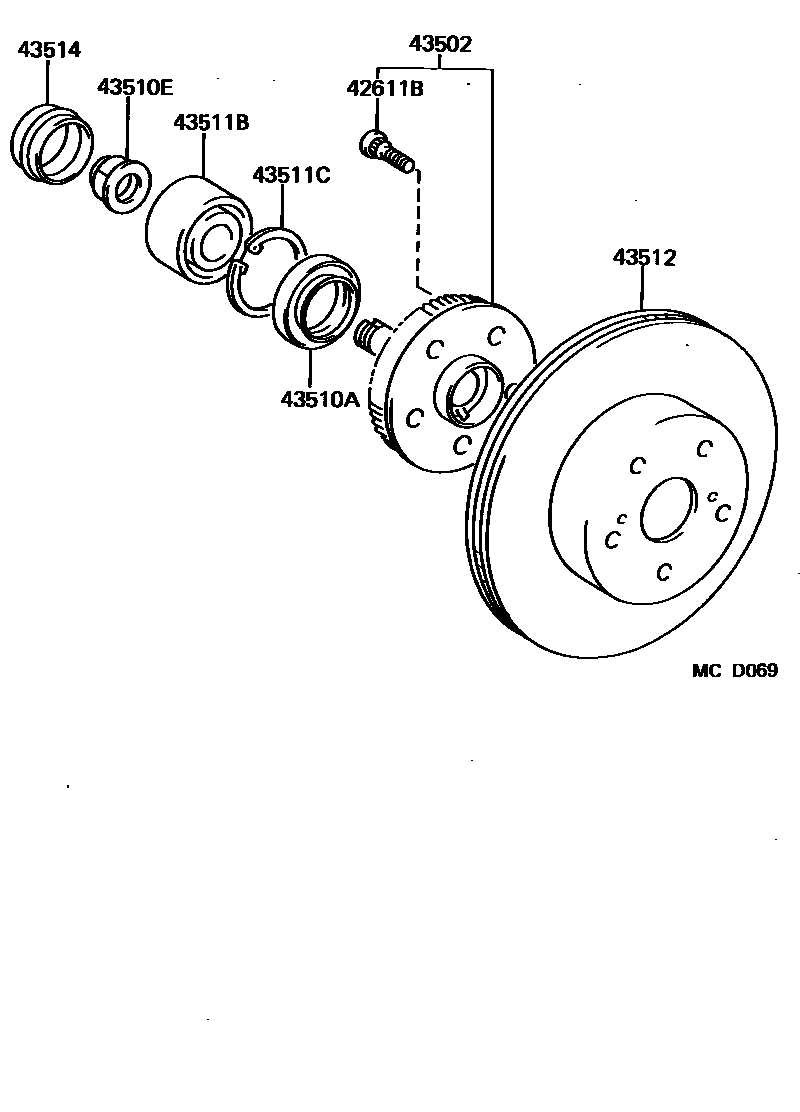

Toyota SUPRA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049×10i198601-198808

43502HUB SUB-ASSY, FRONT AXLE

main43502-14040×2i198601-198808

main43503-14020×2i198608-198808

W/*66

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50008i198601-198808

43510ENUT (FOR STEERING KNUCKLE)

main90179-24005i198601-198808

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35034i198601-198808

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82001i198601-198808

T=2.5

43512DISC, FRONT

main43512-14120×2i198601-198808

43514CAP, FRONT HUB GREASE

main43514-14020i198601-198808

8 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SUPRA

This section contains 8 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SUPRA. Key components include: BOLT, HUB (FOR FRONT AXLE), HUB SUB-ASSY, FRONT AXLE, SEAL, OIL (FOR FRONT AXLE HUB), NUT (FOR STEERING KNUCKLE), BEARING (FOR FRONT AXLE HUB).
