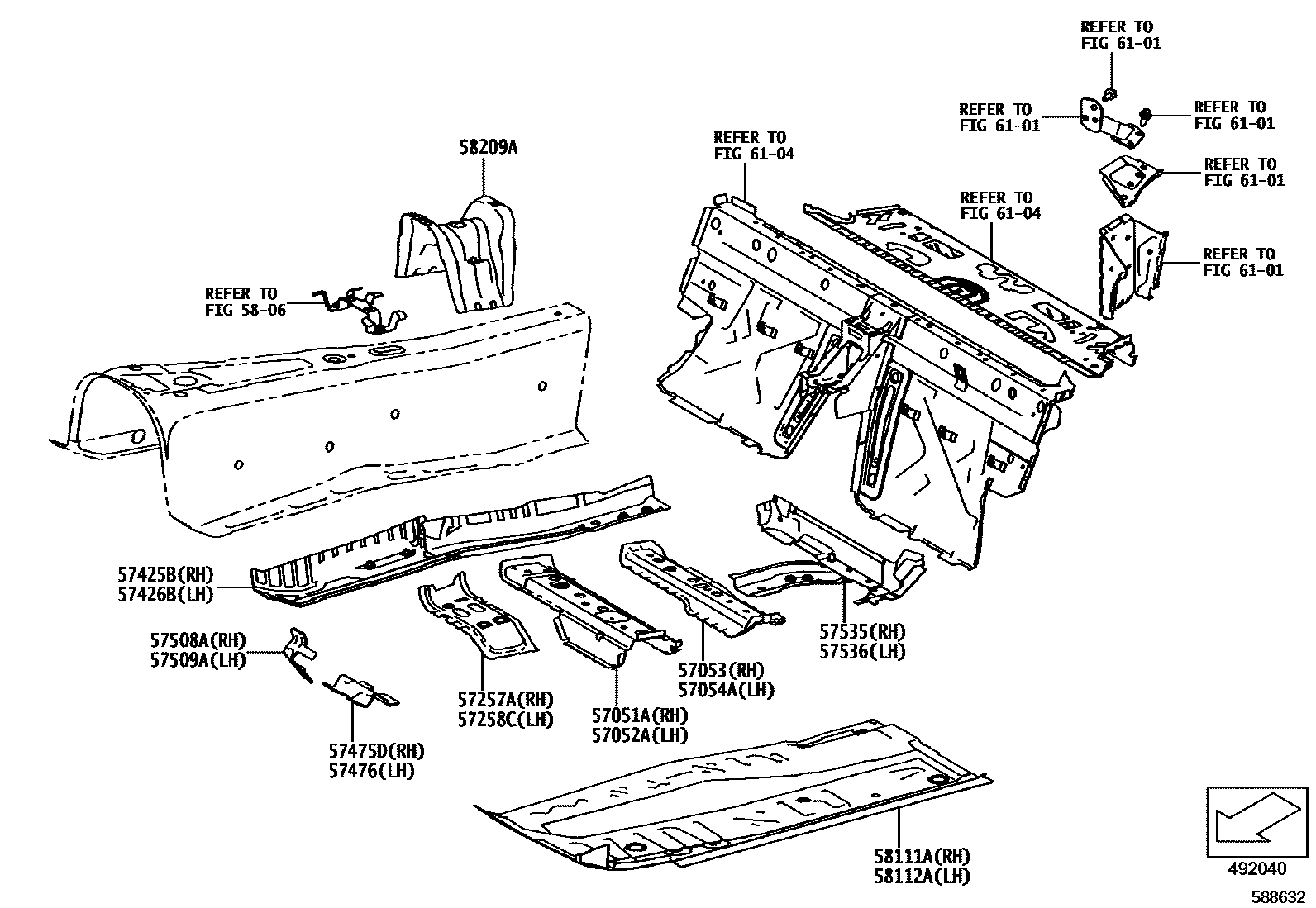

Toyota SUPRA — FLOOR PAN & LOWER BACK PANEL
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
5806CONSOLE BOX & BRACKET
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
6101SIDE MEMBER
6104ROOF PANEL & BACK WINDOW GLASS
20 parts on this diagram · 5 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota SUPRA
This section contains 60 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota SUPRA. Key components include: BRACKET, BODY SUPPORT, NO.1, BRACKET, BODY SUPPORT, NO.1 RH, FRONT FENDER APRON & DASH PANEL, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH.
