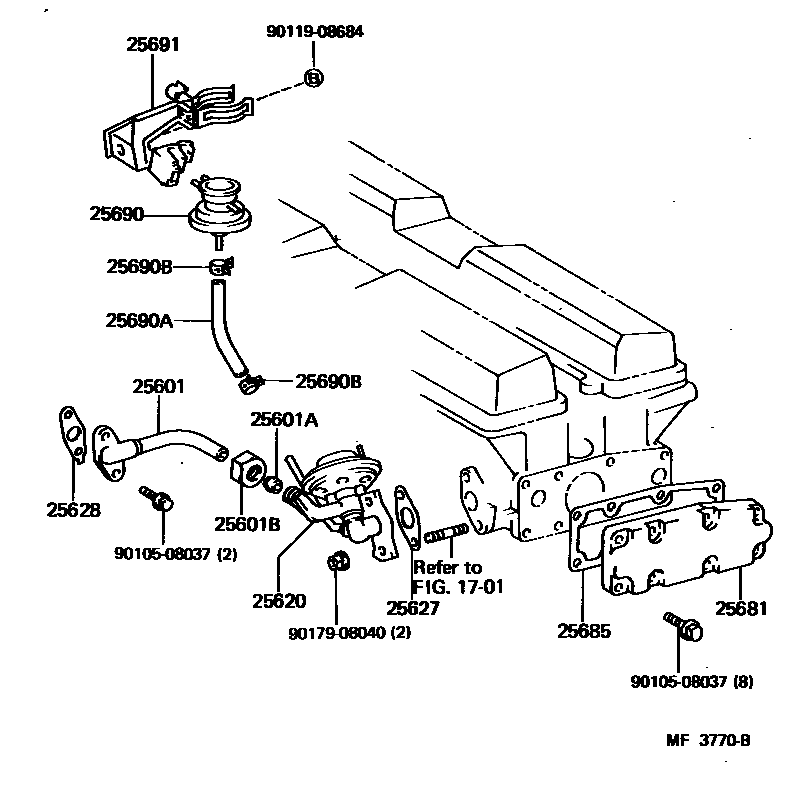

Toyota SUPRA — EXHAUST GAS RECIRCULATION SYSTEM
1701MANIFOLD
25601PIPE SUB-ASSY, EGR, NO.1
main25601-42010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25620VALVE ASSY, EGR
CALIFORNIA SPEC
CALIFORNIA SPEC
25627GASKET, EGR VALVE
main25627-42030i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
25628GASKET, EGR INLET
25681COOLER, EGR, NO.1
25685GASKET, EGR COOLER, NO.1
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
main25695-42010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
25690BCLIP(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9010508037
main90105-08037
9011908684
main90119-08684
9017908040
main90179-08040
16 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota SUPRA
This section contains 16 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota SUPRA. Key components include: MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR.
