Toyota SUPRA — ENGINE OIL PUMP

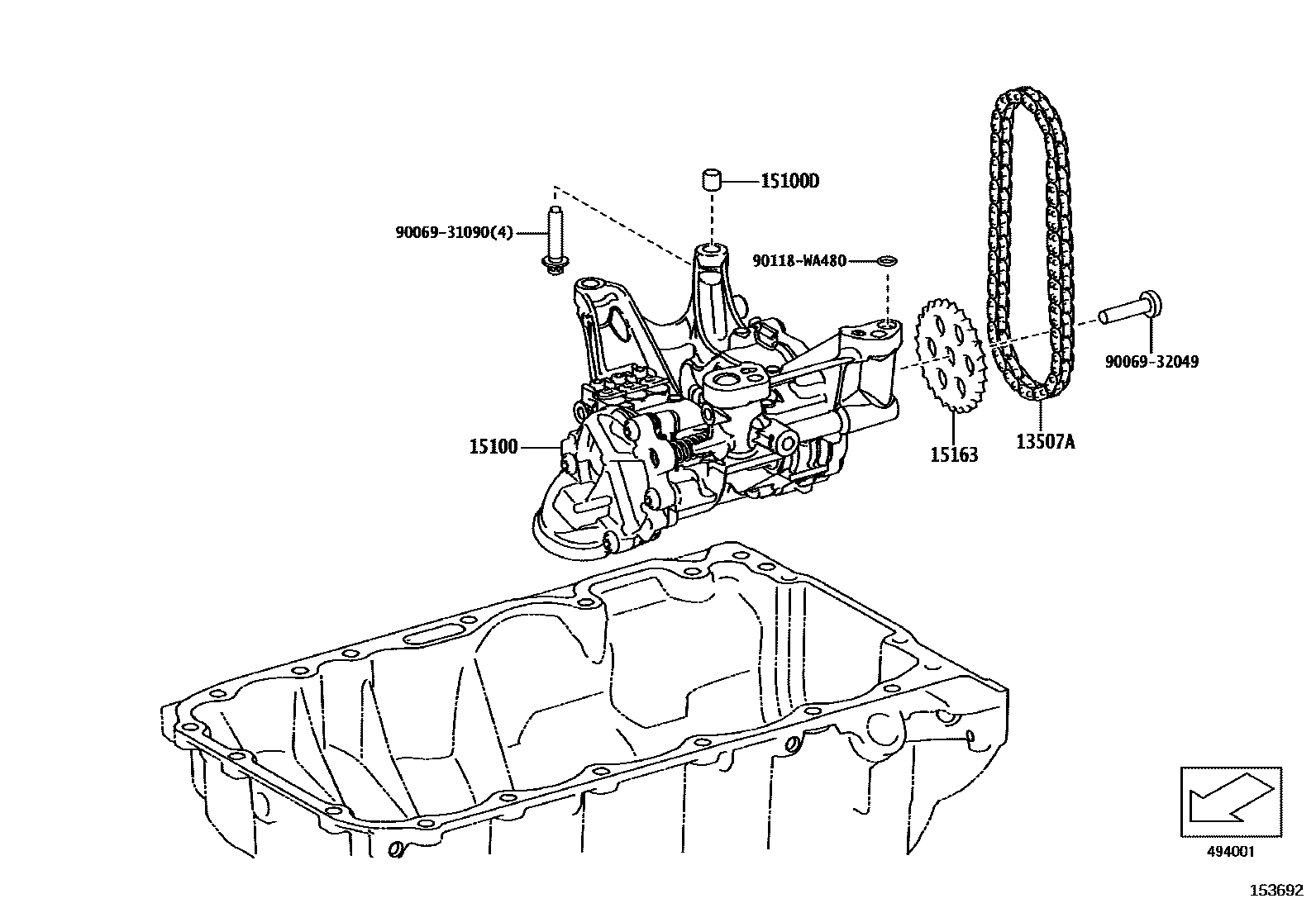

Parts diagram

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-WAA03i202207

main13507-WAA04i202207

15100PUMP ASSY, OIL

main15100-WAA01i202207

main15100-WAA03i202207

15100DPIN(FOR OIL PUMP SET)

main90069-35003×2i202207

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-WAA01i202207

9006931090

main90069-31090

9006932049

main90069-32049

90118WA480

main90118-WA480

7 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota SUPRA

This section contains 9 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota SUPRA. Key components include: CHAIN SUB-ASSY, OIL PUMP DRIVE, PUMP ASSY, OIL, PIN(FOR OIL PUMP SET), STRAINER SUB-ASSY, OIL, GEAR, OIL PUMP DRIVE SHAFT.
