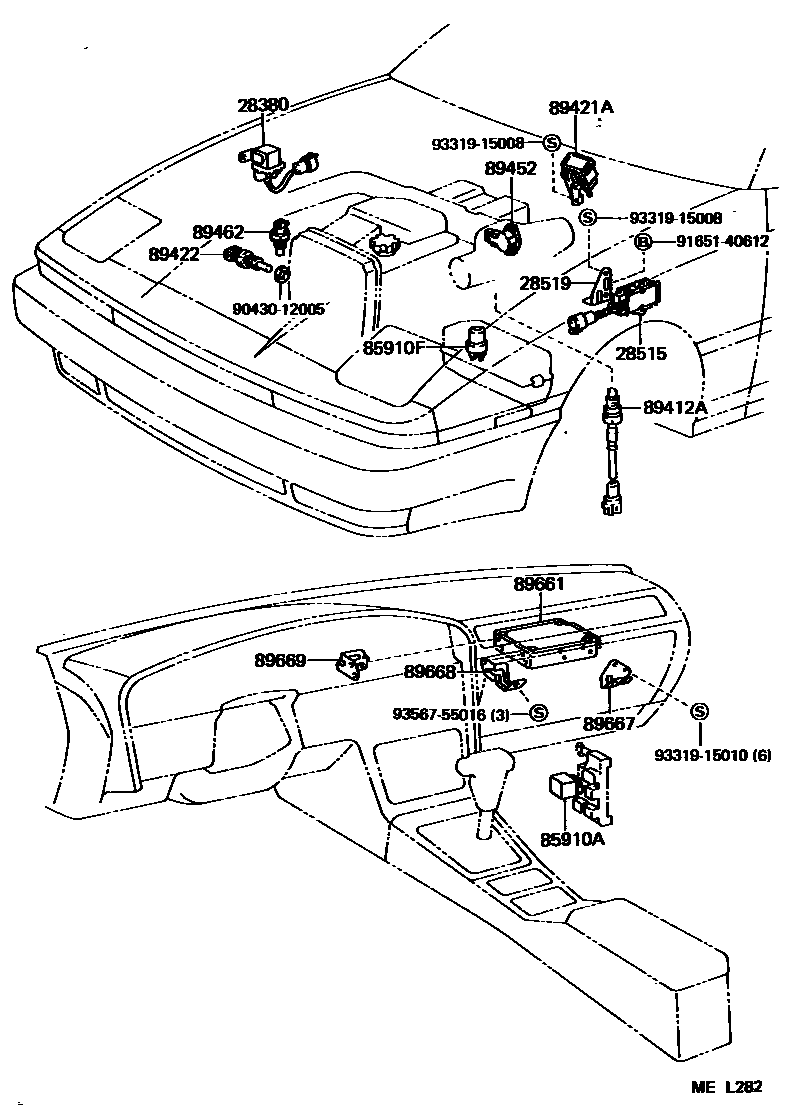

Toyota SUPRA — ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89412ASENSOR, E.G.R GAS TEMPERATURE
89421ASENSOR, TURBO PRESSURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
*CAL
*CAL
*CAL
*CAL
*CAL
*CAL
*CAL
*CAL
*CAL
*CAL
*CAL
*CAL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9043012005
main90430-12005
9165140612
main91651-40612
9331915008
main93319-15008
9331915010
main93319-15010
9356755016
main93567-55016
19 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota SUPRA
This section contains 19 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SUPRA. Key components include: RELAY ASSY, FUEL PUMP, RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI).
