Toyota SUPRA — COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-14800i199305-199808

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-14900i199305-199808

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-14900i199305-199808

55715ABRACE, COWL TOP TO APRON, RH

main55715-14110i199305-199808

55716ABRACE, COWL TOP TO APRON, LH

main55716-14110i199305-199808

55738ASTOPPER, HOOD, RH

main55738-14020i199305-199808

55739ASTOPPER, HOOD, LH

main55739-14040i199305-199808

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-14030i199305-199808

56111GLASS, WINDSHIELD

main56101-14040i199305-199607

*TL,T=4.7,BLUE

main56101-14060i199607-199808

*TL,T=4.0,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14030i199305-199808

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010i199305-199808

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-22030i199305-199808

7502FRONT MOULDING

→ Go to FIG 75-02

9010506175

main90105-06175

9016440096

main90164-40096

9018904208

main90189-04208

9018904218

main90189-04218

9033320001

main90333-20001

9046708056C0

main90467-08056C0

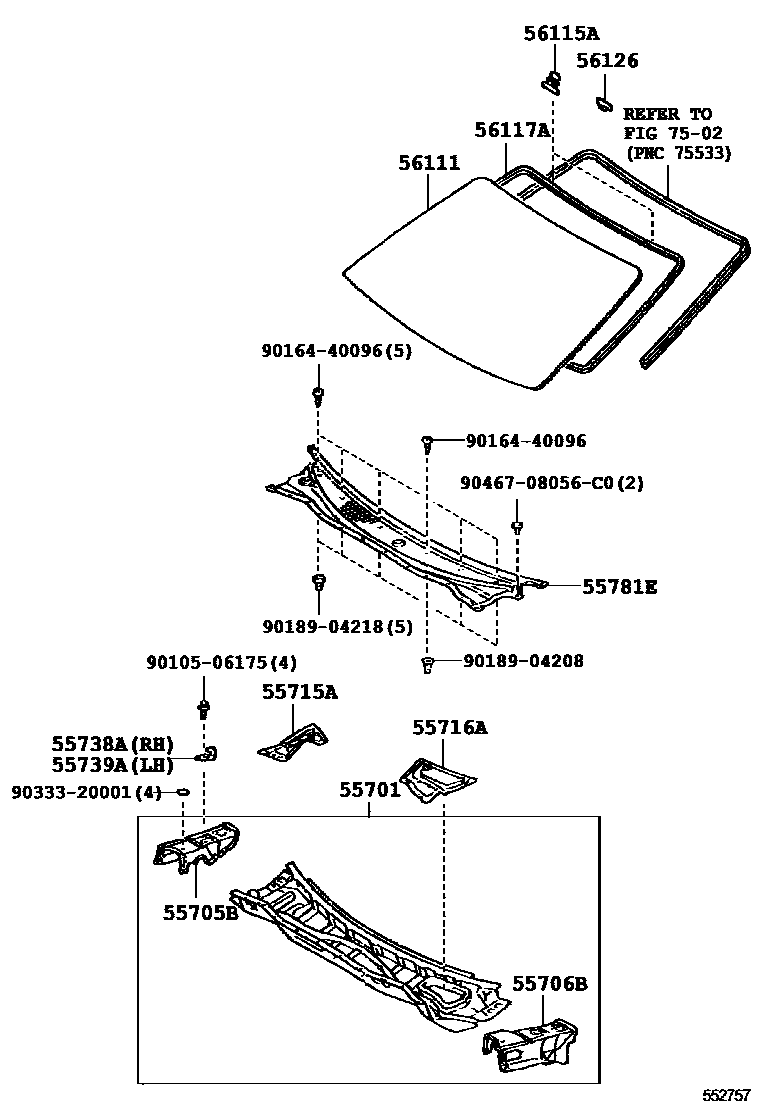

19 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SUPRA

This section contains 19 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SUPRA. Key components include: PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH, BRACE, COWL TOP TO APRON, LH.
