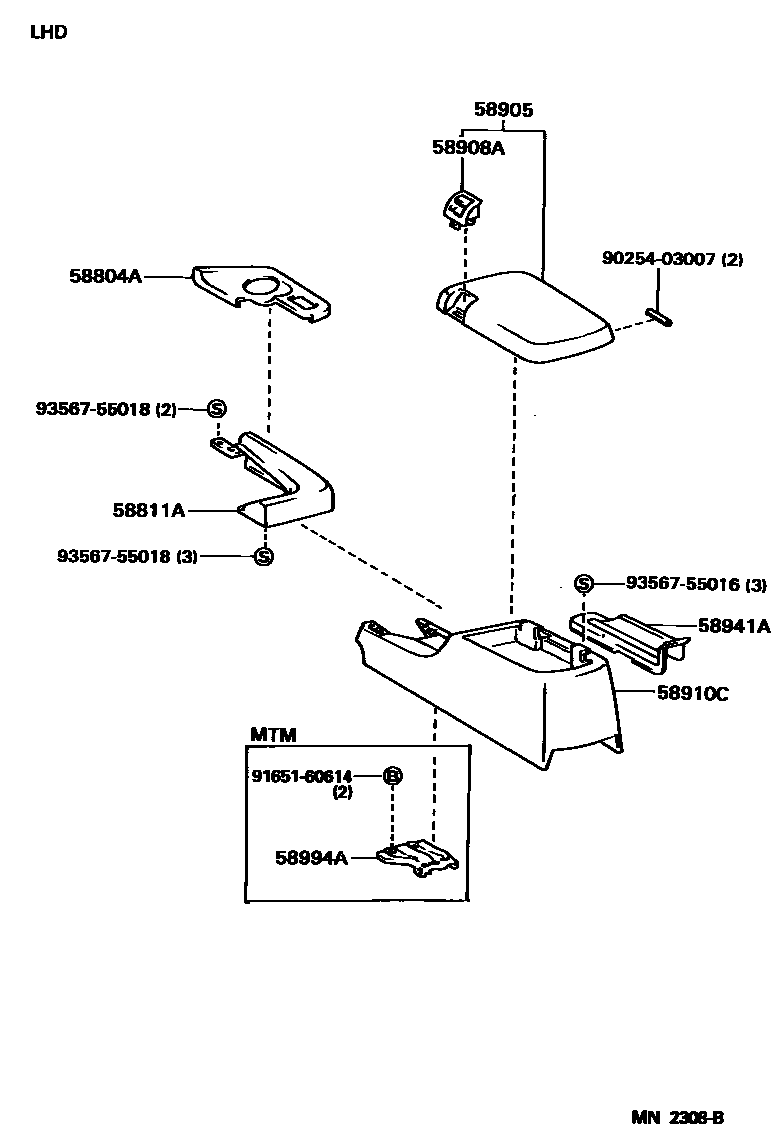

Toyota SUPRA — CONSOLE BOX & BRACKET

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-14060iJZA80..MTM199305-199607

main58804-14070iJZA80..4FC199305-199607

main58804-14100iJZA80..MTM199607-199808

main58804-14110iJZA80..4FC199607-199808

58811ABOX, CONSOLE, FRONT

main58802-14070-C0iJZA80199305-199808

BLACK,TRIM0#,2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14090-C0iJZA80199305-199404

BLACK,TRIM0#,2#

main58905-14091-C0iJZA80199404-199607

BLACK,TRIM0#,2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-14020-C0iJZA80199305-199808

BLACK,TRIM0#,2#

58910CBOX ASSY, CONSOLE, REAR

main58911-14130-C0iJZA80199305-199404

BLACK,TRIM0#,2#

sub58901-14H00

main58911-14131-C0iJZA80199404-199607

BLACK,TRIM0#,2#

58941ACOVER, PARKING BRAKE HOLE

main58904-14020iJZA80199305-199808

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-14010iJZA80..MTM199305-199808

9025403007

main90254-03007

9165160614

main91651-60614

9356755016

main93567-55016

9356755018

main93567-55018

11 parts on this diagram · 1 diagram in section
