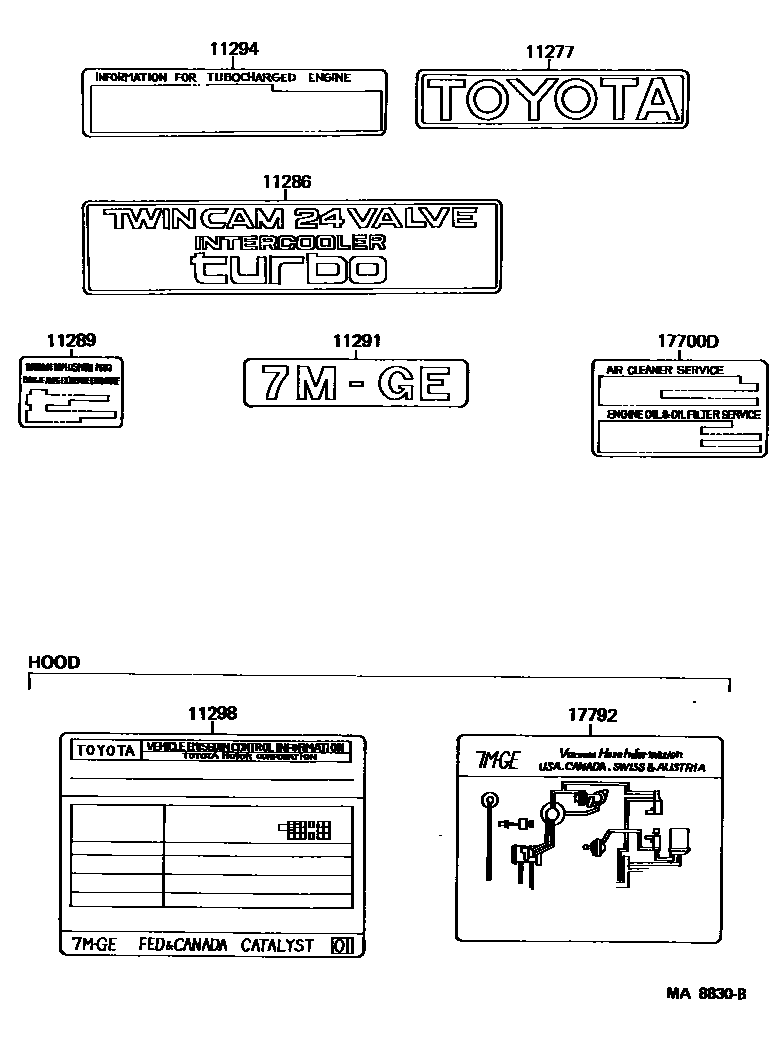

Toyota SUPRA — CAUTION PLATE & NAME PLATE (ENGINE)

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-42010i7MGTE..MA70198608-198808

11286PLATE, ENGINE SPECIFICATION

main11286-42010i7MGTE..MA70198608-198808

11289PLATE, SPARK PLUG CAUTION

main11289-13040i7MGE..MA70198601-198606

main11289-73020i7MG#..MA70198606-198808

11291PLATE, ENGINE NAME

main11291-42020i7MGTE..MA70198608-198808

main11291-42030i7MGE..MA70198601-198808

11294PLATE, ENGINE CAUTION, NO.2

main11294-42010i7MGTE..MA70198608-198708

main11294-42020i7MGTE..MA70..CND198708-198808

11298PLATE, EMISSION CONTROL INFORMATION

main11298-42010i7MGE..MA70198601-198608

main11298-42011i7MGE..MA70198608-198708

main11298-42020i7MGE..MA70..USA198601-198608

CALIFORNIA SPEC

main11298-42021i7MGE..MA70..USA198608-198708

CALIFORNIA SPEC

main11298-42050i7MGTE..MA70198608-198708

main11298-42060i7MGTE..MA70..USA198608-198708

CALIFORNIA SPEC

main11298-42070i7MGE..MA70198708-198808

main11298-42080i7MGE..MA70..USA198708-198808

CALIFORNIA SPEC

main11298-42100i7MGTE..MA70198708-198808

main11298-42110i7MGTE..MA70..USA198708-198808

CALIFORNIA SPEC

17700DPLATE, ENGINE CAUTION

main11293-74070i7MGE..MA70198601-198808

main17791-35010i7MGTE..MA70198608-198808

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-42010i7MGE..MA70198601-198808

main17792-42030i7MGTE..MA70198608-198708

main17792-42040i7MGTE..MA70198708-198808

8 parts on this diagram · 1 diagram in section
