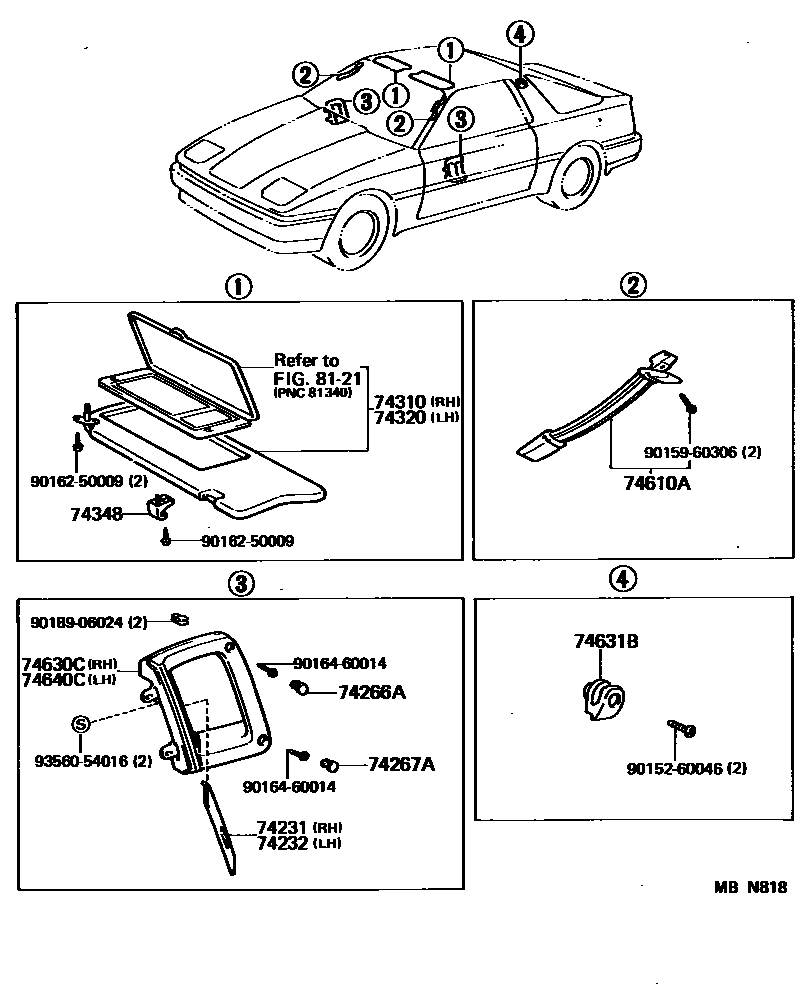

Toyota SUPRA — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-14101-02iMA70198808-198908

MAROON,TRIM3#

main74231-14101-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main74231-14101-04iMA70198808-198908

DEEP BLUE,TRIM8#

main74231-14101-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main74231-14101-12iMA70199008-199305

DEEP RED,TRIM3#

main74231-14101-13iMA70199008-199305

SHADOW GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-14091-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main74232-14091-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main74232-14091-04iMA70199008-199305

DEEP BLUE,TRIM8#

main74232-14091-06iMA70198808-198901

BROWN,TRIM4#

main74232-14091-12iMA70199008-199305

DEEP RED,TRIM3#

main74232-14091-13iMA70199008-199305

SHADOW GRAY,TRIM1#

74266ACAP, DOOR ARMREST, NO.1

main74266-14041-02×2iMA70198808-198908

MAROON,TRIM3#

main74266-14041-03×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main74266-14041-04×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main74266-14041-06×2iMA70..TWT198901-198908

BROWN,TRIM4#

main74266-14041-12×2iMA70199008-199305

DEEP RED,TRIM3#

main74266-14041-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

74267ACAP, DOOR ARMREST, NO.2

main74267-14021-02×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main74267-14021-03×2iMA70198808-198908

MEDIUM GRAY,TRIM1#

main74267-14021-04×2iMA70199008-199305

DEEP BLUE,TRIM8#

main74267-14021-06×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main74267-14021-12×2iMA70199008-199305

DEEP RED,TRIM3#

main74267-14021-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-14401-02iMA70..SPR198808-198809

MAROON,TRIM3#

main74310-14401-03iMA70..SPR198808-198809

MEDIUM GRAY,TRIM1#

main74310-14401-04iMA70..SPR198808-198809

DEEP BLUE,TRIM8#

main74310-14401-06iMA70..SPR198808-198809

BROWN,TRIM4#

main74310-14402-02iMA70..SPR198809-199008

MAROON,TRIM3#

main74310-14402-03iMA70..SPR198809-199008

MEDIUM GRAY,TRIM1#

main74310-14402-04iMA70..SPR198809-199305

DEEP BLUE,TRIM8#

main74310-14402-06iMA70..SPR198908-199008

BROWN,TRIM4#

main74310-14402-12iMA70..SPR199008-199305

DEEP RED,TRIM3#

main74310-14402-13iMA70..SPR199008-199305

SHADOW GRAY,TRIM1#

main74310-14402-16iMA70..SPR..USA199008-199108

LIGHT TAN,TRIM4#

main74310-14501-02iMA70..LB198808-198908

MAROON,TRIM3#

main74310-14501-03iMA70..LB..TWC;MA70..LB..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main74310-14501-04iMA70..LB199008-199305

DEEP BLUE,TRIM8#

main74310-14501-06iMA70..LB..TWC;MA70..LB..TWT..USA198908-199008

BROWN,TRIM4#

main74310-14501-12iMA70..LB199008-199305

DEEP RED,TRIM3#

main74310-14501-13iMA70..LB199008-199305

SHADOW GRAY,TRIM1#

main74310-14501-16iMA70..LB..USA199008-199108

LIGHT TAN,TRIM4#

74320VISOR ASSY, LH

main74320-14481-02iMA70..SPR198808-198809

MAROON,TRIM3#

main74320-14481-03iMA70..SPR198808-198809

MEDIUM GRAY,TRIM1#

main74320-14481-04iMA70..SPR198808-198809

DEEP BLUE,TRIM8#

main74320-14481-06iMA70..SPR198808-198809

BROWN,TRIM4#

main74320-14482-02iMA70..SPR..CND198908-199008

MAROON,TRIM3#

main74320-14482-03iMA70..SPR..CND198908-199008

MEDIUM GRAY,TRIM1#

main74320-14482-04iMA70..SPR198809-198908

DEEP BLUE,TRIM8#

main74320-14482-06iMA70..SPR198809-198901

BROWN,TRIM4#

main74320-14482-12iMA70..SPR..CND199008-199108

DEEP RED,TRIM3#

main74320-14482-13iMA70..SPR..CND199008-199108

SHADOW GRAY,TRIM1#

main74320-14571-02iMA70..LB..TWC..CND198908-199008

MAROON,TRIM3#

main74320-14571-03iMA70..LB198808-198908

MEDIUM GRAY,TRIM1#

main74320-14571-04iMA70..LB198808-198908

DEEP BLUE,TRIM8#

main74320-14571-06iMA70..LB198808-198901

BROWN,TRIM4#

main74320-14571-12iMA70..LB..CND199008-199108

DEEP RED,TRIM3#

main74320-14571-13iMA70..LB..CND199008-199108

SHADOW GRAY,TRIM1#

main74320-14580-02iMA70..SPR..USA198908-199008

MAROON,TRIM3#

main74320-14580-03iMA70..SPR..USA198908-199008

MEDIUM GRAY,TRIM1#

main74320-14580-04iMA70..SPR..USA198908-199108

DEEP BLUE,TRIM8#

main74320-14580-06iMA70..SPR..USA198908-199008

BROWN,TRIM4#

main74320-14580-12iMA70..SPR..USA199008-199108

DEEP RED,TRIM3#

main74320-14580-13iMA70..SPR..USA199008-199108

SHADOW GRAY,TRIM1#

main74320-14580-16iMA70..SPR..USA199008-199108

LIGHT TAN,TRIM4#

main74320-14581-D5iMA70..SPR199108-199305

DEEP RED,TRIM3#

main74320-14581-P0iMA70..SPR199108-199305

SHADOW GRAY,TRIM1#

main74320-14581-R5iMA70..SPR199108-199305

DEEP BLUE,TRIM8#

main74320-14590-02iMA70..LB..USA198908-199008

MAROON,TRIM3#

main74320-14590-03iMA70..LB..USA198908-199008

MEDIUM GRAY,TRIM1#

main74320-14590-04iMA70..LB..USA198908-199108

DEEP BLUE,TRIM8#

main74320-14590-06iMA70..LB..USA198908-199008

BROWN,TRIM4#

main74320-14590-12iMA70..LB..USA199008-199108

DEEP RED,TRIM3#

main74320-14590-13iMA70..LB..USA199008-199108

SHADOW GRAY,TRIM1#

main74320-14590-16iMA70..LB..USA199008-199108

LIGHT TAN,TRIM4#

main74320-14591-D5iMA70..LB199108-199305

DEEP RED,TRIM3#

main74320-14591-P0iMA70..LB199108-199305

SHADOW GRAY,TRIM1#

main74320-14591-R5iMA70..LB199108-199305

DEEP BLUE,TRIM8#

74348HOLDER, VISOR

main74348-12020-02×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

sub74348-60010

sub74348-26020

main74348-12020-13×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-12020-36×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

sub74348-60010

sub74348-26020

main74348-12020-42×2iMA70199008-199305

RED,TRIM3#

sub74348-60010

sub74348-26020

main74348-12020-44×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DARK BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-12020-46×2iMA70..USA199008-199108

LIGHT TAN,TRIM4#

sub74348-60010

sub74348-26020

main74348-12020-53×2iMA70199008-199305

SHADOW GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-20020-12×2iMA70198808-198908

MAROON,TRIM3#

main74348-20020-13×2iMA70198808-198908

MEDIUM GRAY,TRIM1#

main74348-20020-14×2iMA70198808-198908

DEEP BLUE,TRIM8#

main74348-20020-46×2iMA70198808-198901

BROWN,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-24020-02×2iMA70198808-198908

MAROON,TRIM3#

main74610-24020-03×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main74610-24020-04×2iMA70199008-199305

DEEP BLUE,TRIM8#

main74610-24020-12×2iMA70199008-199305

DEEP RED,TRIM3#

main74610-24020-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

main74610-24020-16×2iMA70..TWT198901-198908

BROWN,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-14021-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main74630-14021-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main74630-14021-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main74630-14021-06iMA70198808-198901

BROWN,TRIM4#

main74630-14021-12iMA70199008-199305

DEEP RED,TRIM3#

main74630-14021-13iMA70199008-199305

SHADOW GRAY,TRIM1#

74631BHOOK, COAT

main74631-14020-02×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main74631-14020-03×2iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main74631-14020-04×2iMA70198808-198908

DEEP BLUE,TRIM8#

main74631-14020-06×2iMA70..USA199008-199108

BROWN,TRIM4#

main74631-14020-12×2iMA70199008-199305

DEEP RED,TRIM3#

main74631-14020-13×2iMA70199008-199305

SHADOW GRAY,TRIM1#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-14011-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main74640-14011-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main74640-14011-04iMA70198808-198908

DEEP BLUE,TRIM8#

main74640-14011-06iMA70..USA199008-199108

BROWN,TRIM4#

main74640-14011-12iMA70199008-199305

DEEP RED,TRIM3#

main74640-14011-13iMA70199008-199305

SHADOW GRAY,TRIM1#

8121

9015260046

main90152-60046

9015960306

main90159-60306

9016250009

main90162-50009

9016460014

main90164-60014

9018906024

main90189-06024

9356054016

main93560-54016

18 parts on this diagram · 1 diagram in section
