Toyota SUPRA — ABS & VSC

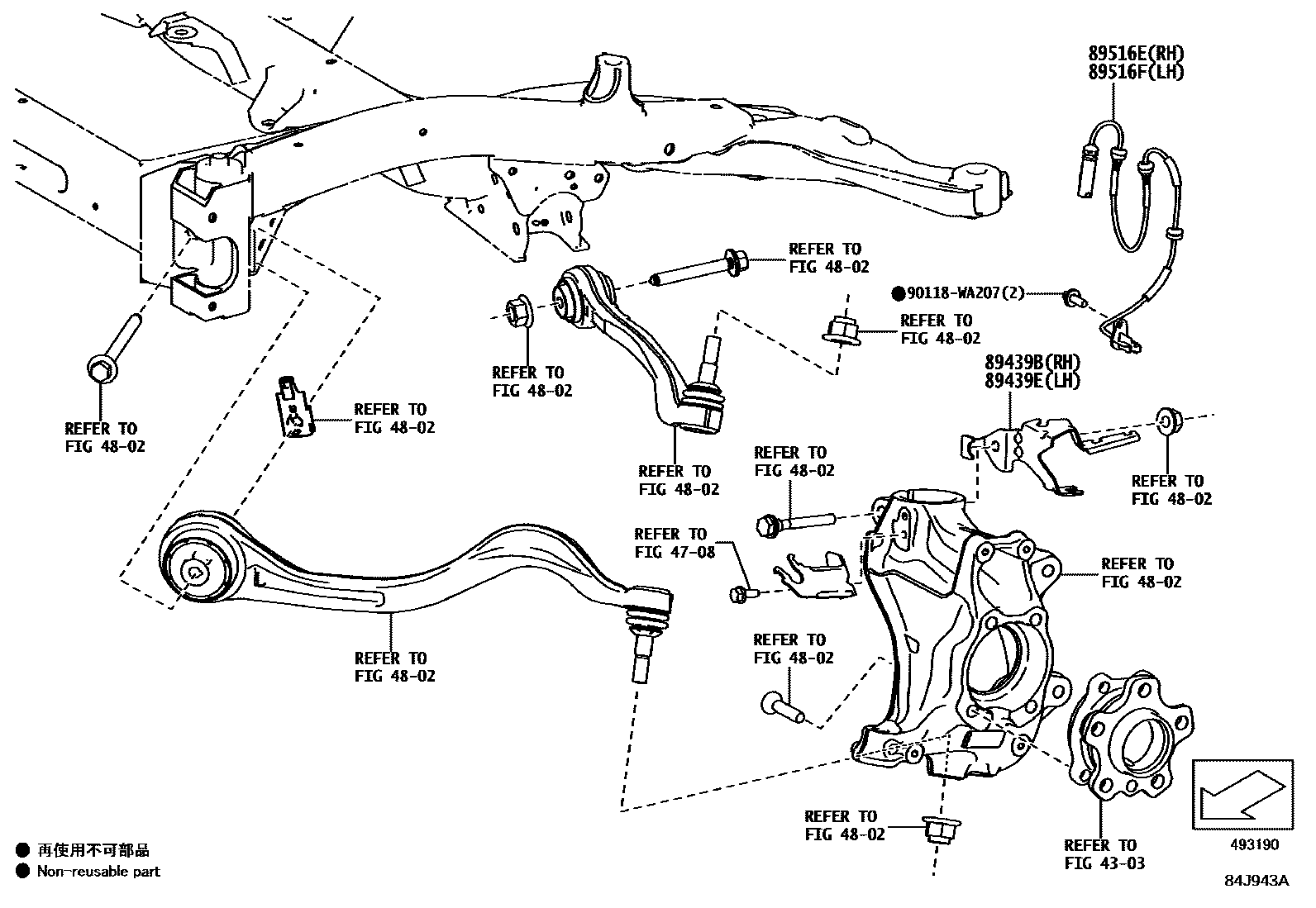

Parts diagram

4303FRONT AXLE HUB

→ Go to FIG 43-03

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

89439BBRACKET, SENSOR

main88266-WAA04i201903-202002

89439EBRACKET, SENSOR, NO.2

main88266-WAA03i201903-202002

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-WAA03i201903-202002

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-WAA03i201903-202002

90118WA207

main90118-WA207

8 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota SUPRA

This section contains 13 genuine Toyota parts for the ABS & VSC system of the Toyota SUPRA. Key components include: FRONT AXLE HUB, BRAKE TUBE & CLAMP, FRONT AXLE ARM & STEERING KNUCKLE, REAR SPRING & SHOCK ABSORBER, BRACKET, SENSOR.
