Toyota SUPRA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14310i199305-199908

85160LINK ASSY, WINDSHIELD WIPER

main85150-14310i199305-199908

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2i199305-199908

85211BARM, FRONT WIPER, RH

main85211-14300i199305-199908

85212ABLADE, FR WIPER, RH

main85212-14300i199305-199908

85213ARUBBER, WIPER BLADE, RH

main85213-20310i199305-199502

85214ARUBBER, WIPER, RH

main85214-33060i199502-199908

85214BRUBBER, WIPER, LH

main85214-30250i199502-199908

85221BARM, FRONT WIPER, LH

main85221-14300i199305-199908

85222ABLADE, FR WIPER, LH

main85222-14590i199305-199908

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-14590i199305-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050i199502-199908

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050i199502-199908

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60040i199502-199908

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60040i199502-199908

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22050i199305-199908

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-24060i199305-199908

9017908113

main90179-08113

18 parts on this diagram · 1 diagram in section

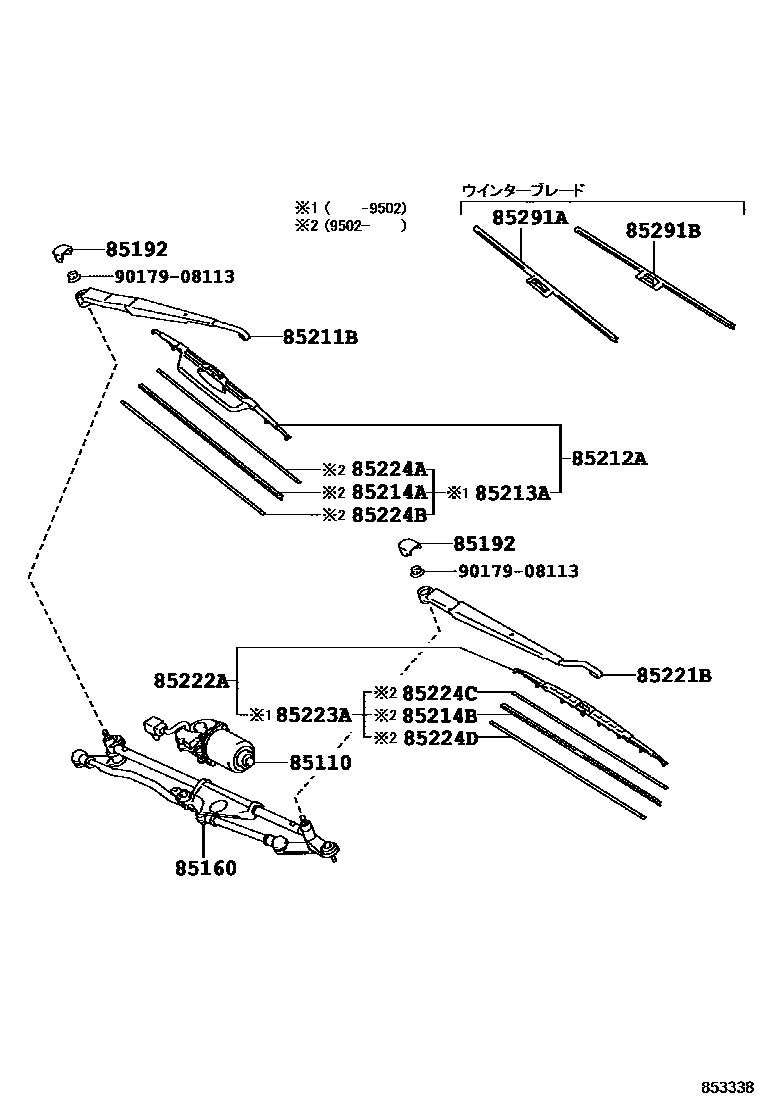

WINDSHIELD WIPER for Toyota SUPRA

This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SUPRA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
