Toyota SUPRA — WINDSHIELD WIPER

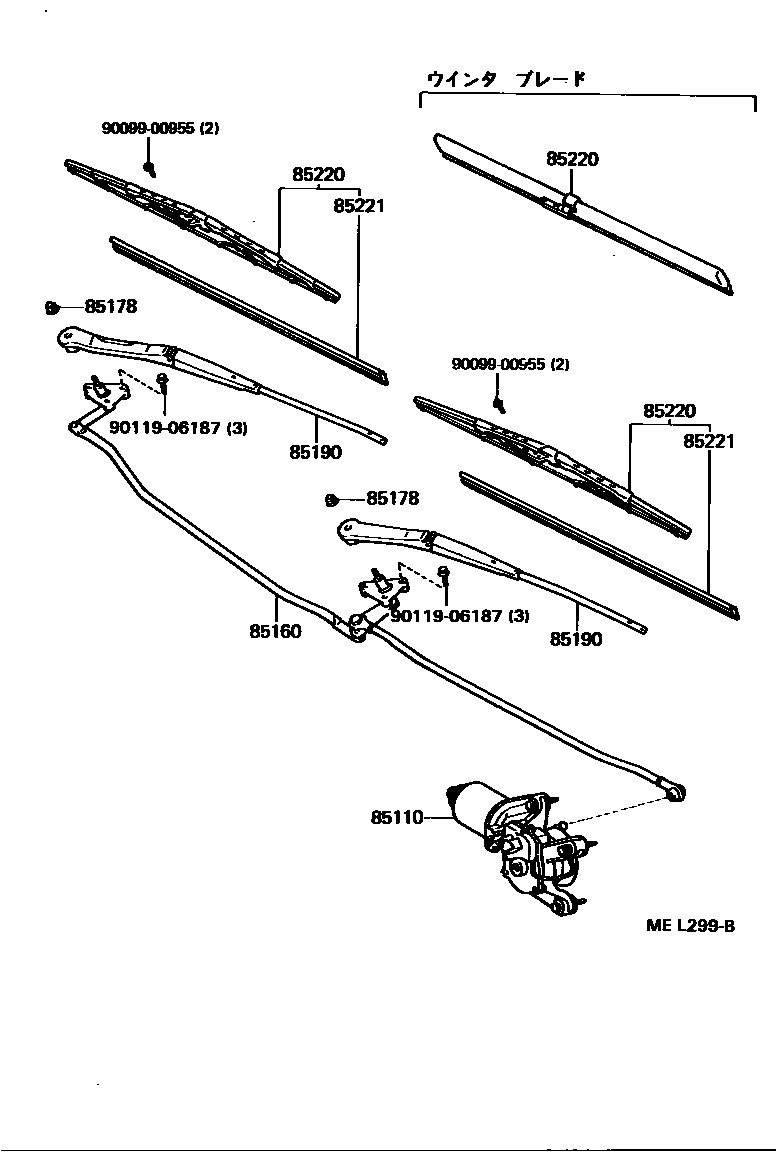

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14302i198808-199305

85160LINK ASSY, WINDSHIELD WIPER

main85160-14320i198808-199305

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2i198808-199305

85190ARM ASSY, WINDSHIELD WIPER

main85190-14740i198808-198911

main85190-14741i198911-199305

main85210-14260i198808-198911

main85210-14261i198911-199012

main85210-14262i199012-199305

85220BLADE ASSY, WINDSHIELD WIPER

main85212-24050i198911-199305

main85220-16550i198808-198911

main85220-16551i198911-199305

main85220-16580i198808-199003

main85220-32540i198808-198911

main85220-32550i198808-199003

main85291-16010i199003-199305

main85291-32030i199003-199305

85221BLADE, WINDSHIELD WIPER

main85221-14270i198808-199305

main85221-24040i198808-199305

9009900955

main90099-00955

9011906187

main90119-06187

8 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota SUPRA

This section contains 8 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SUPRA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
