Toyota SUPRA — WINDSHIELD WIPER

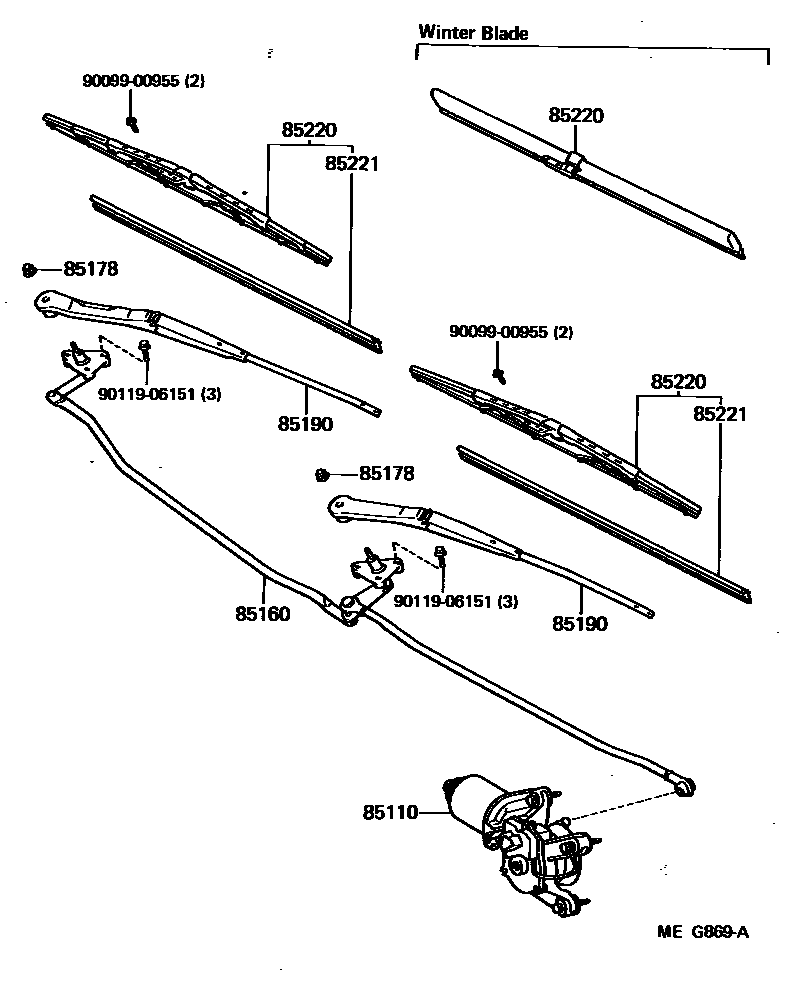

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-14210i198602-198801
main85110-14211i198801-198808
main85110-14300i198602-198801
COLD SPEC
main85110-14301i198801-198808
COLD SPEC
85160LINK ASSY, WINDSHIELD WIPER
main85160-14320i198602-198808
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-08033×2i198602-198808
85190ARM ASSY, WINDSHIELD WIPER
main85190-14610i198602-198808
RH
main85210-14190i198602-198808
LH
85220BLADE ASSY, WINDSHIELD WIPER
main85220-16550i198602-198808
LH
main85220-16580i198602-198808
LH,WINTER BLADE
main85220-32310i198612-198808
RH
main85220-32480i198602-198612
RH
main85220-32560i198602-198808
RH,WINTER BLADE
85221BLADE, WINDSHIELD WIPER
main85221-14220i198602-198612
RH
main85221-14240i198602-198612
LH
main85221-14270i198612-198808
LH
main85221-30110i198612-198808
RH
9009900955
main90099-00955
9011906151
main90119-06151

8 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota SUPRA

This section contains 8 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SUPRA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
