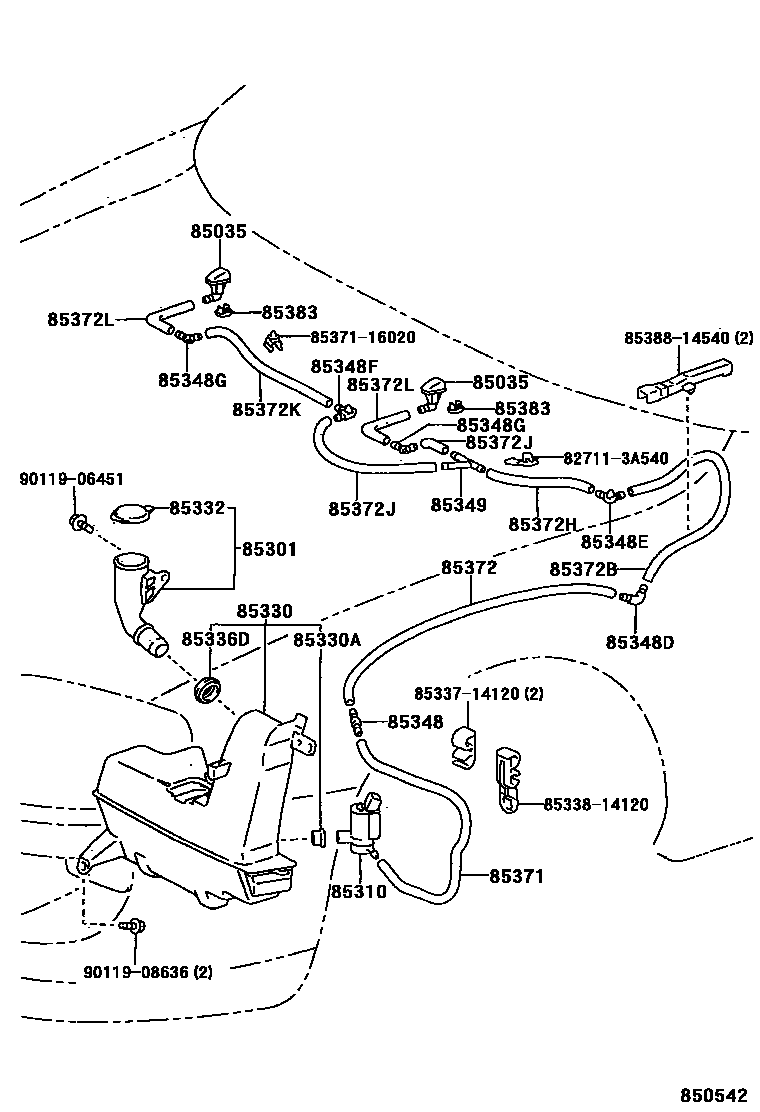

Toyota SUPRA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE,040
DK. BROWNISH GRAY M.,1A1
SILVER METALLIC,199
SILVER GR. SF.,1B9
BLACK,202
SUPER RED 4,3L2
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
DK.GREEN M.M.,6P3
GRAYISH GREEN M.M.,6N0
DEEP TEAL METALLIC,752
BLUE M.M.,8L5
SUPER WHITE,040
SILVER METALLIC,199
BLACK,202
SUPER RED 4,3L2
DEEP TEAL METALLIC,752
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
85383HOLDER, FRONT WASHER NOZZLE
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8533714120CASE, LEVEL WARNING SWITCH
main85337-14120
8533814120HOSE, BREATHER
main85338-14120
8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-16020
8538814540CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-14540
9011906451
main90119-06451
9011908636
main90119-08636
28 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota SUPRA
This section contains 28 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SUPRA. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
