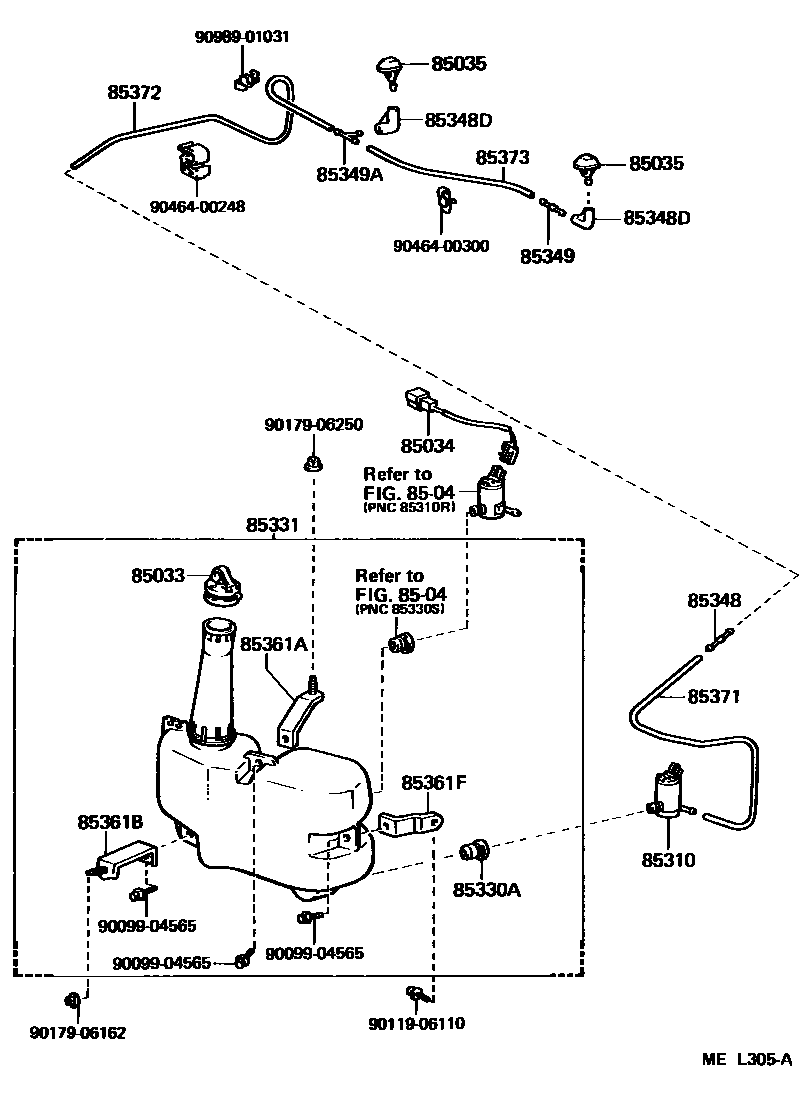

Toyota SUPRA — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-14770i199008-199305

main85332-32161i198808-199008

85034WIRE, WASHER

main85034-14680i198808-199305

85035NOZZLE SUB-ASSY, WASHER

main85035-14290×2i198808-199305

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198808-199305

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198808-199305

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-14770i198808-199305

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i198808-199305

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2i198808-199305

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i198808-199305

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14510i198808-199305

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-14340i198808-199305

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85362-14600i198808-199305

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85363-14600i198808-199305

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001i198808-199305

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33079i198808-199305

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i198808-199305

9009904565

main90099-04565

9011906110

main90119-06110

9017906162

main90179-06162

9017906250

main90179-06250

9046400248

main90464-00248

9046400300

main90464-00300

9098901031

main90989-01031

24 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SUPRA

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SUPRA. Key components include: CAP ASSY, WINDSHIELD WASHER, WIRE, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
