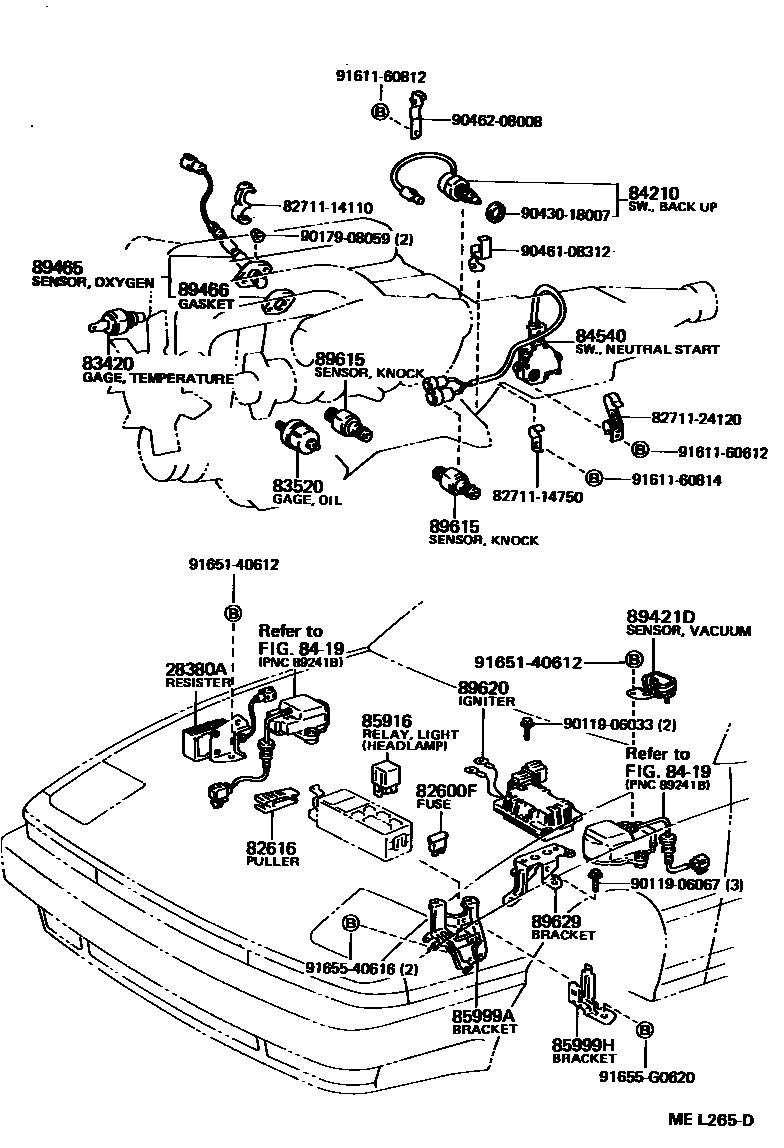

Toyota SUPRA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28380ARESISTER, FUEL PUMP

main23080-70010i1GGTEU,1JZGTE,7MGTEU..GA70,JZA70,MA70198808-199305

82600FFUSE, FUSE BLOCK

main90982-07011iGA70,JZA70,MA70198808-199305

main90982-09002iGA70,JZA70,MA70198808-199305

main90982-09003iGA70,JZA70,MA70198808-199305

main90982-09004iGA70,JZA70,MA70198808-199305

main90982-09005iGA70,JZA70,MA70198808-199305

82616PULLER, FUSE

main82616-12020iGA70,JZA70,MA70198808-199305

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iGA70,JZA70,MA70198808-199305

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iGA70,MA70198808-199305

sub83520-35030

main83520-55011iGA70,MA70198808-199305

8419

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGA70..5F198808-199305

main84210-35030iMA70..5F198808-198810

84540SWITCH ASSY, NEUTRAL START

main84540-14130iGA70..4FC..G198808-199008

sub84540-14131

main84540-30240iGA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR)198808-199202

main84540-30241iGA70,JZA70..4FC199202-199305

85916RELAY, LIGHT CONTROL

main90987-02002iGA70,JZA70,MA70198808-199305

MARUKO,TAIL LAMP

main90987-02004iGA70,JZA70,MA70198808-199305

*ND,TAIL LAMP

main90987-02006iGA70,JZA70,MA70198808-199305

HEADLAMP

85999ABRACKET, RELAY, NO.2

main85999-24020iGA70,JZA70,MA70198808-199305

85999HBRACKET, RELAY

main85999-24030iGA70,MA70198808-199305

89421DSENSOR, TURBO PRESSURE

main89420-14040iGA70..GTT198808-198908

89465SENSOR, OXYGEN

main89465-19565iGA70..GTT199008-199305

main89465-29155iMA70198808-198908

main89465-29156iMA70198908-199008

main89465-29175iGA70..G,GT198808-198908

main89465-29176iGA70..G,GT198908-199305

main89465-29255iGA70..GTT198808-198908

main89465-29256iGA70..GTT198908-199008

main89465-29435iJZA70199008-199305

89466GASKET, OXYGEN SENSOR

main89466-20020iGA70,JZA70,MA70..GTL,GTT,GTTR198810-199305

main89466-30010iGA70,MA70..GTL,GTT,GTTL198808-198810

main89466-30030iGA70..G,GT198908-199305

main89466-32010iGA70..G,GT198808-198908

89615SENSOR, KNOCK CONTROL

main89615-22040×2iJZA70199008-199305

main89615-30020×2iGA70,MA70..GTL,GTT,GTTL198808-199108

main89615-33010iGA70..GTT199108-199208

MATUSITA

main89615-33020iGA70..GTT199108-199305

sub89615-32030

89620IGNITER ASSY

main89620-14410iGA70..G198808-199008

sub89620-22420

main89620-14420iGA70..GTT198808-199305

main89620-14440iMA70198808-199008

main89620-14460iJZA70199008-199305

sub89621-22030

sub89629-14060

sub90159-50163

main89621-30010iGA70..GT198808-199305

sub89621-12010

89629BRACKET, IGNITER ASSY

main89629-14050iGA70,MA70198808-199305

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9011906033

main90119-06033

9011906067

main90119-06067

9017908059

main90179-08059

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161160612

main91611-60612

9161160812

main91611-60812

9161160814

main91611-60814

9165140612

main91651-40612

9165540616

main91655-40616

91655G0620

main91655-G0620

32 parts on this diagram · 6 diagrams in section
