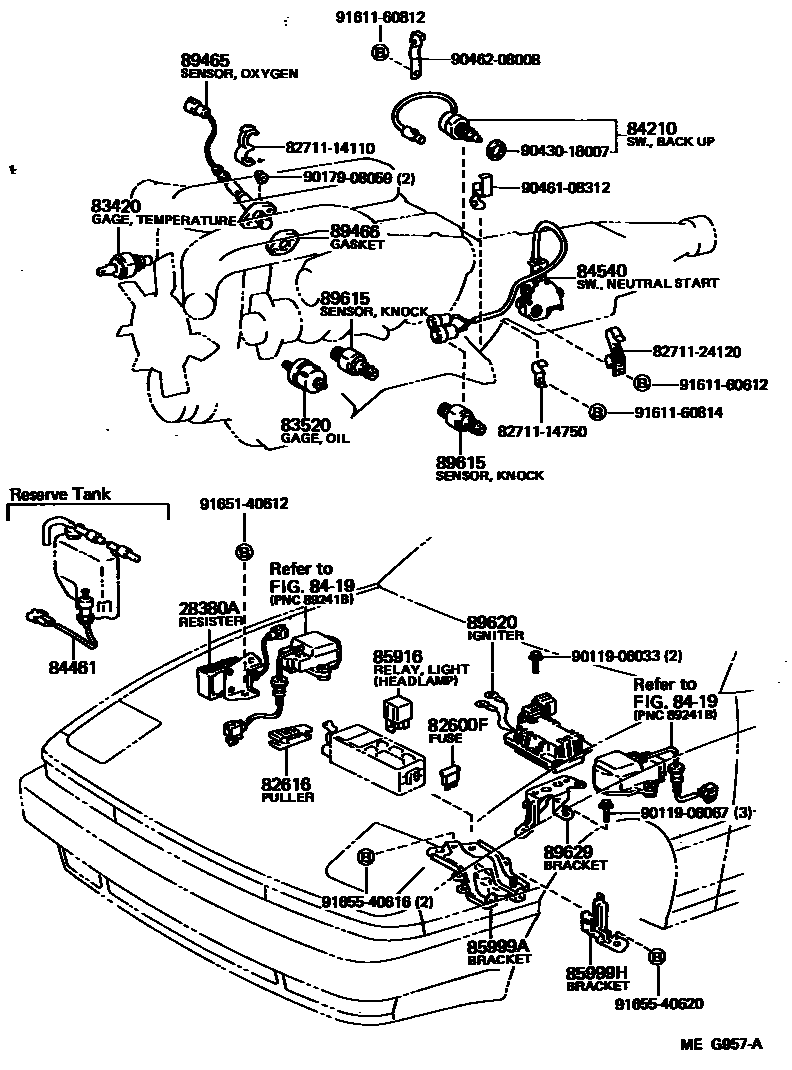

Toyota SUPRA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28380ARESISTER, FUEL PUMP

main23080-70010i1GG#,7MGTEU..GA70,MA70198602-198808

82600FFUSE, FUSE BLOCK

main90982-07011iGA70,MA70198602-198808

main90982-09002×3iGA70,MA70198602-198808

main90982-09003×6iGA70,MA70198602-198808

main90982-09004×2iGA70,MA70198602-198808

main90982-09005×4iGA70,MA70198602-198808

82616PULLER, FUSE

main82616-12020iGA70,MA70198602-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iGA70,MA70198602-198808

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iGA70,MA70198602-198705

DENSO

main83520-14023iGA70,MA70198705-198808

DENSO

sub83520-35030

main83520-55011iGA70,MA70198602-198808

YAZAKI

8419

84210SWITCH ASSY, BACK-UP LAMP

main84210-35030iMA70..5F198701-198808

main84210-60021iGA70..5F198602-198808

84461SWITCH, LEVEL WARNING

main85335-42030iGA70,MA70198602-198808

84540SWITCH ASSY, NEUTRAL START

main84540-14130iGA70..4FC..(G,GT,S)198602-198808

sub84540-14131

main84540-30240iGA70,MA70..4FC..(GTL,GTT)198602-198808

sub84540-30241

85916RELAY, LIGHT CONTROL

main90987-02002iGA70,MA70198602-198808

TAIL LAMP,MARUKO

main90987-02004iGA70,MA70198602-198808

TAIL LAMP,DENSO

main90987-02006iGA70,MA70198602-198808

HEADLAMP

85999ABRACKET, RELAY, NO.2

main85999-24020iGA70,MA70198602-198808

85999HBRACKET, RELAY

main85999-24030iGA70,MA70198602-198808

89465SENSOR, OXYGEN

main89465-19075iGA70..G,S198602-198808

sub89465-19076

main89465-29155iGA70,MA70..GTL,GTT198602-198808

sub89465-29156

main89465-29175iGA70..GT198602-198808

sub89465-29176

89466GASKET, OXYGEN SENSOR

main89466-30010iGA70,MA70..GTL,GTT198602-198808

sub89466-20020

main89466-32010iGA70..G,GT,S198602-198808

sub89466-30030

89615SENSOR, KNOCK CONTROL

main89615-30020×2iGA70,MA70..GTL,GTT198602-198808

89620IGNITER ASSY

main89620-14410iGA70..G,GT,S198602-198808

sub89620-22420

main89620-14420iGA70..GTT198602-198808

main89620-14440iMA70198602-198808

89629BRACKET, IGNITER ASSY

main89629-14050iGA70,MA70198602-198808

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9011906033

main90119-06033

9011906067

main90119-06067

9017908059

main90179-08059

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161160612

main91611-60612

9161160812

main91611-60812

9161160814

main91611-60814

9165140612

main91651-40612

9165540616

main91655-40616

9165540620

main91655-40620

32 parts on this diagram · 5 diagrams in section
