Toyota SUPRA — STANDARD TOOL

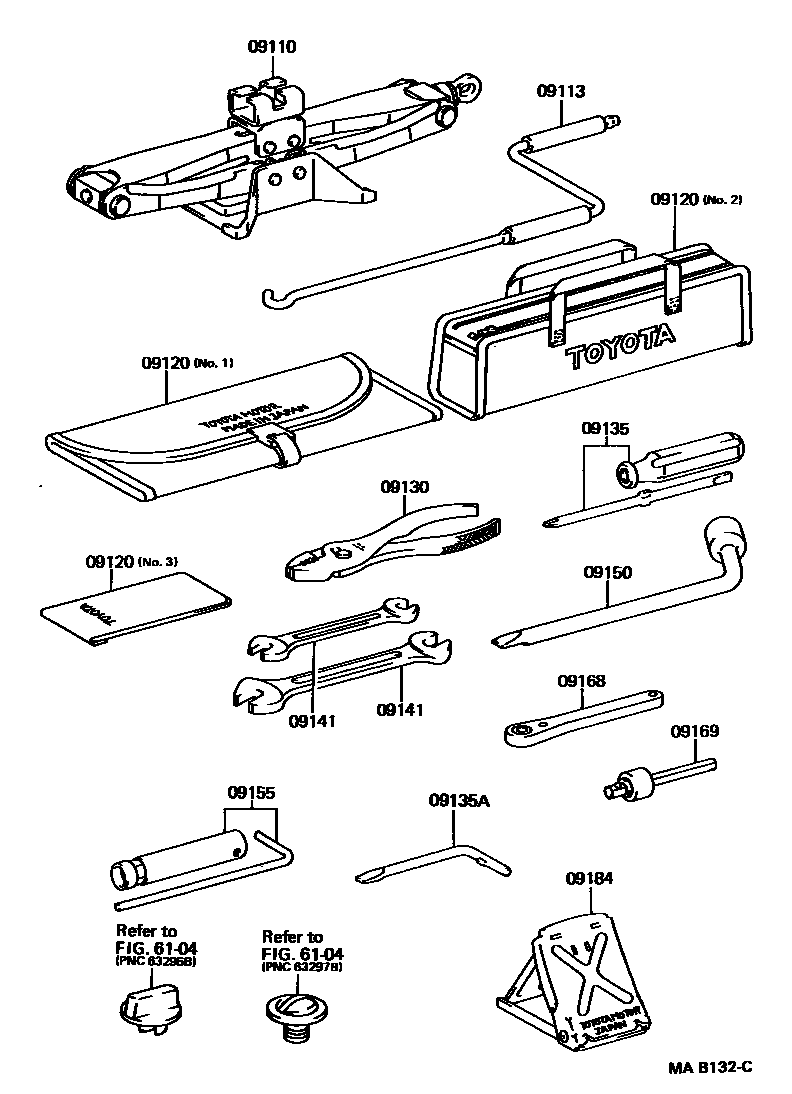

Parts diagram
09110JACK ASSY
main09111-14060i199010-199305
main09111-24030i198808-199010
09113HANDLE, JACK
main09113-24020i198808-199305
09120BAG, TOOL
main09120-12011i198808-199305
NO.1
main09120-14011i198808-199305
NO.3
main09120-14040i198808-199305
NO.2
09130PLIERS
main99913-11500i198808-199305
09135DRIVER, SCREW
main99915-10700i198808-199305
09135ABIT, SCREW DRIVER
main09135-00012i199008-199305
09141SPANNER
main99914-10810i198808-199305
main99914-11214i198808-199305
09150WRENCH, HUB NUT BOX
main09150-40010i198808-199305
09155WRENCH, SPARK PLUG
main09155-00100i198808-199305
main09155-70020i198808-199305
main09155-74010i198808-199305
09168WRENCH, ROOF PANEL
main09168-14010i198808-199305
09169HANDLE, ROOF PANEL
main09169-14010i198808-199305
09184STOPPER, WHEEL
main09184-00010i198808-199305
6104ROOF PANEL & BACK WINDOW GLASS
→ Go to FIG 61-04

13 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SUPRA

This section contains 13 genuine Toyota parts for the STANDARD TOOL system of the Toyota SUPRA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
