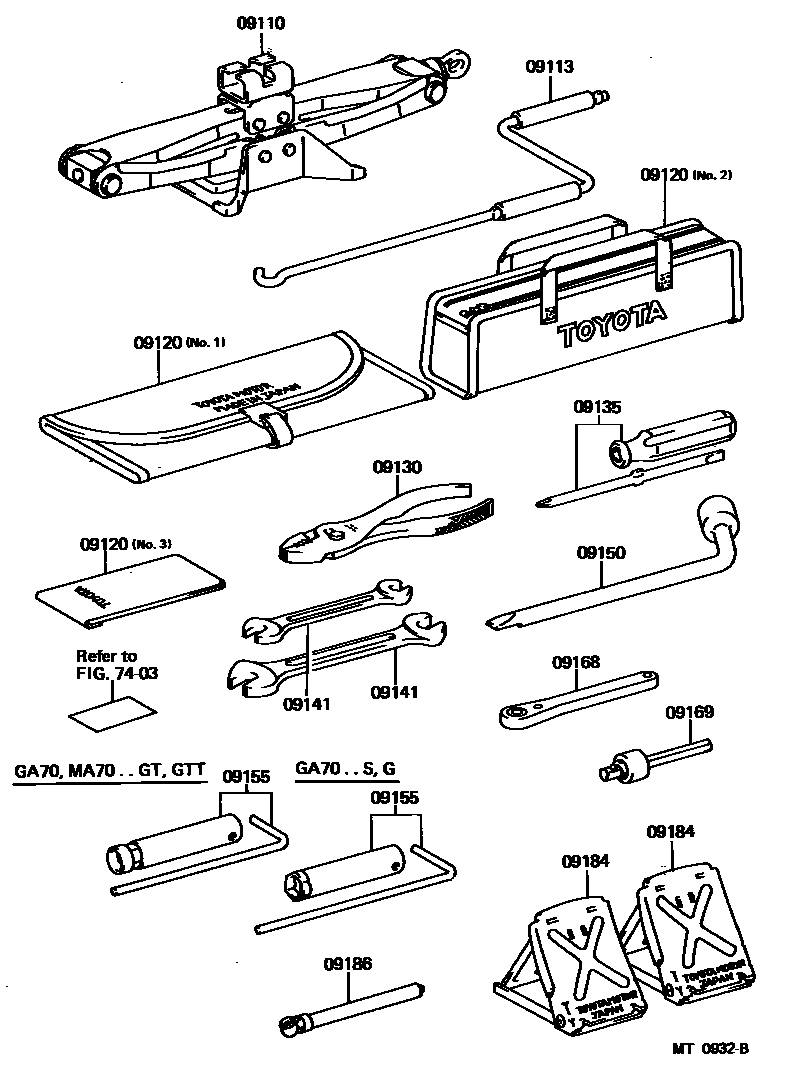

Toyota SUPRA — STANDARD TOOL

09110JACK ASSY

main09111-24030i198602-198808

09113HANDLE, JACK

main09113-24020i198602-198808

09120BAG, TOOL

main09120-12011i198602-198808

NO.1

main09120-14010i198606-198708

NO.3

main09120-14011i198708-198808

NO.3

main09120-14020i198602-198808

NO.2

09130PLIERS

main99913-11500i198602-198808

09135DRIVER, SCREW

main99915-10700i198602-198808

09141SPANNER

main99914-10810i198602-198808

main99914-11214i198602-198808

09150WRENCH, HUB NUT BOX

main09150-40010i198602-198808

09155WRENCH, SPARK PLUG

main09155-00100i198602-198808

main09155-41010i198602-198808

main09155-70020i198602-198808

09168WRENCH, ROOF PANEL

main09168-14010i198606-198808

09169HANDLE, ROOF PANEL

main09169-14010i198606-198808

09184STOPPER, WHEEL

main09184-00010×2i198602-198808

09186GAGE, TIRE

main09186-00010i198602-198701

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

13 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SUPRA

This section contains 13 genuine Toyota parts for the STANDARD TOOL system of the Toyota SUPRA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
