Toyota SUPRA — SEAT BELT & CHILD RESTRAINT SEAT

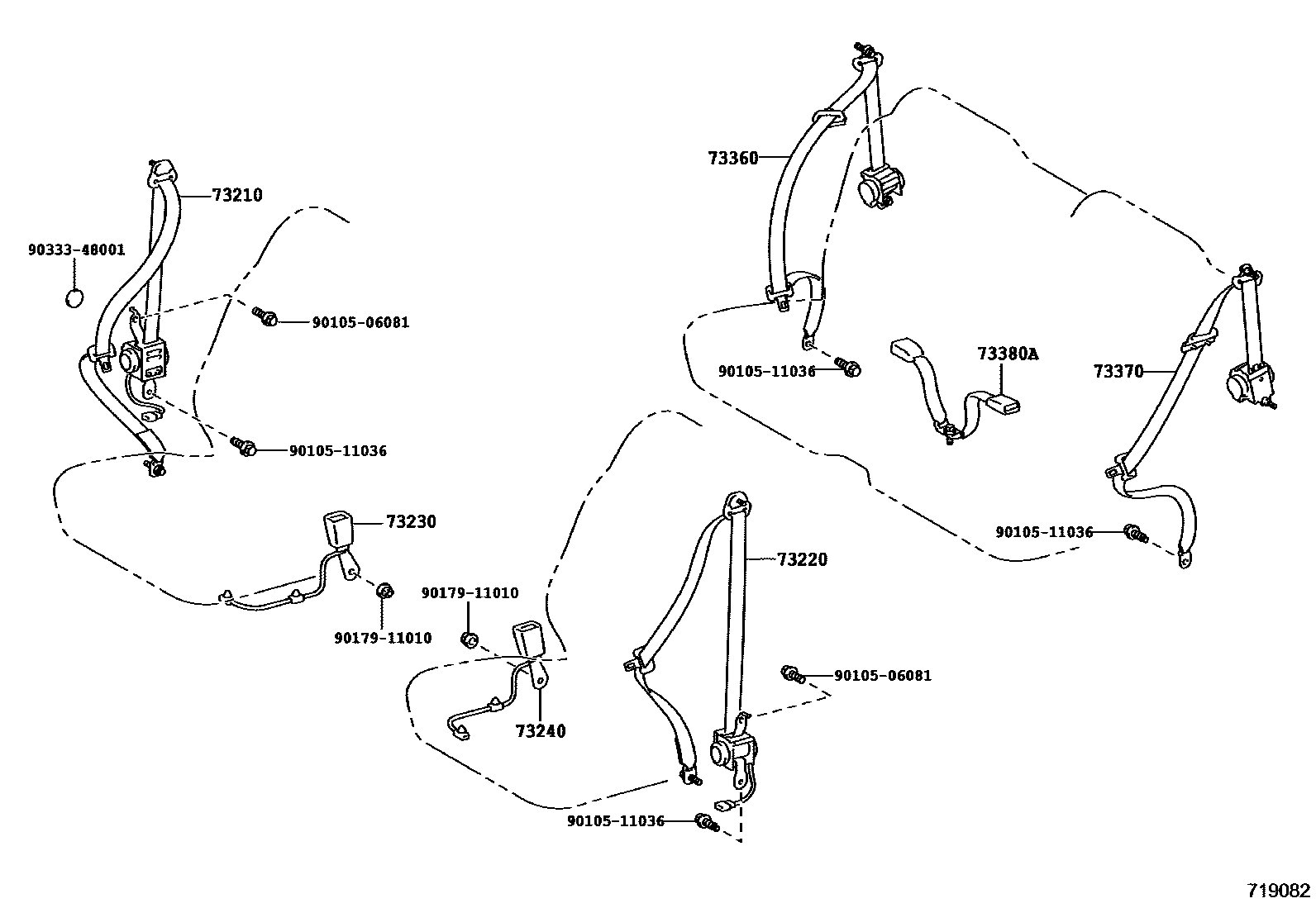

Parts diagram
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-14540-C0i199305-199312
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73210-14541-C0i199312-199505
BLACK,TRIM2#
main73210-14570-C0i199505-199605
main73210-14580-C0i199605
BLACK,TRIM2#
main73210-14590-C0i199605
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-14480-C0i199305-199312
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73220-14481-C0i199312-199505
BLACK,TRIM2#
main73220-14510-C0i199505-199605
main73220-14520-C0i199605
BLACK,TRIM2#
main73220-14530-C0i199605
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-14480-C0i199305-199605
BLACK,TRIM0#,2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-14490-C0i199305-199605
BLACK,TRIM0#,2#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-14290-C0i199305-199312
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73360-14291-C0i199312-199505
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73360-14292-C0i199505-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73360-14293-C0i199605-199709
BLACK,TRIM2#
main73360-14304-C0i199709
BLACK,TRIM2#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-14170-C0i199305-199312
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73370-14171-C0i199312-199505
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73370-14172-C0i199505-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73370-14173-C0i199605-199709
BLACK,TRIM2#
main73370-14184-C0i199709
BLACK,TRIM2#
73380ABELT ASSY, REAR SEAT, INNER
main73380-14210-C0i199305-199505
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73380-14211-C0i199505-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
main73380-14212-C0i199605
BLACK,TRIM2#
9010506081
main90105-06081
9010511036
main90105-11036
9017911010
main90179-11010
9033348001
main90333-48001

11 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota SUPRA

This section contains 11 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota SUPRA. Key components include: BELT ASSY, FRONT SEAT OUTER, RH, BELT ASSY, FRONT SEAT OUTER, LH, BELT ASSY, FRONT SEAT INNER, RH, BELT ASSY, FRONT SEAT INNER, LH, BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH.
