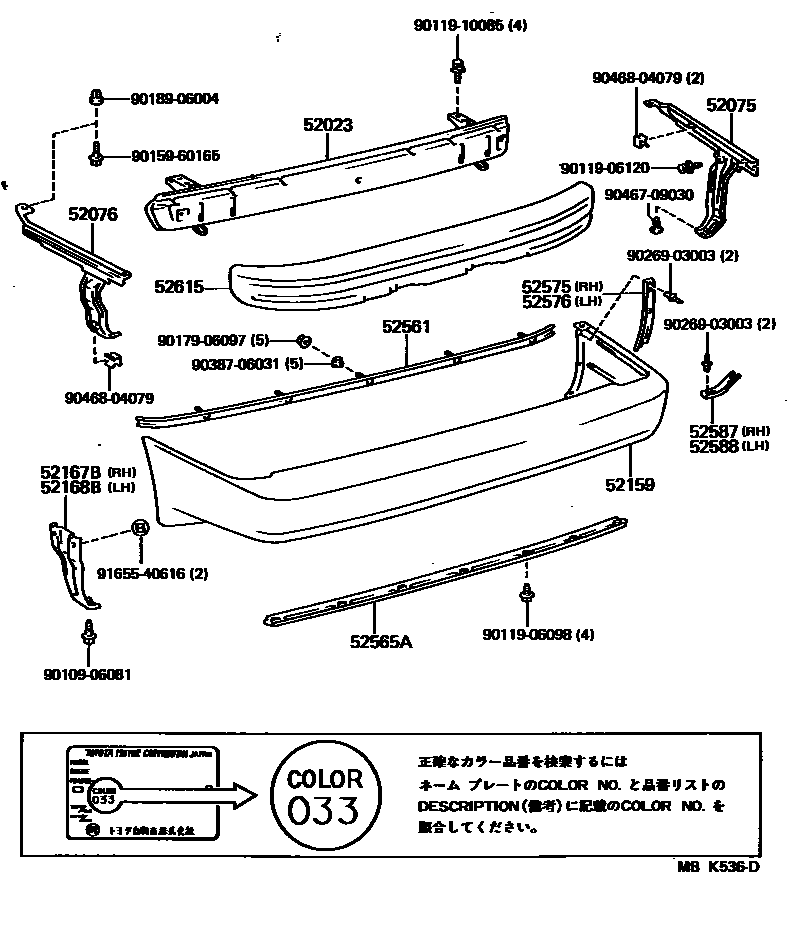

Toyota SUPRA — REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
BLACK LIMITED,BLACK-M,BLACK M,204
RED MICA,RED MICA,3H1
SILVER-M,AMETHYST SILVER M,920
BROWN-M,MEDIUM BROWN M,27A
WHITE,SUPER WHITE 2,040
BLUE MICA,BLUE MICA,8E3
RED MICA,RED MICA,3H1
SILVER-M,AMETHYST SILVER M,920
BLUE MICA,BLUE MICA,8E3
WHITE,SUPER WHITE 2,040
WHITE PEARL MICA,WHITE PEARL MICA,042
52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52615ABSORBER, REAR BUMPER ENERGY
9010906081
main90109-06081
9011906098
main90119-06098
9011906120
main90119-06120
9011910085
main90119-10085
9015960165
main90159-60165
9017906097
main90179-06097
9018906004
main90189-06004
9026903003
main90269-03003
9038706031
main90387-06031
9046709030
main90467-09030
9046804079
main90468-04079
9165540616
main91655-40616
25 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota SUPRA
This section contains 25 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota SUPRA. Key components include: REINFORCEMENT SUB-ASSY, REAR BUMPER, RETAINER SUB-ASSY, REAR BUMPER SIDE, RH, RETAINER SUB-ASSY, REAR BUMPER SIDE, LH, COVER, REAR BUMPER, BRACKET, REAR BUMPER EXTENSION MOUNTING, RH.
