Toyota SUPRA — RADIATOR GRILLE

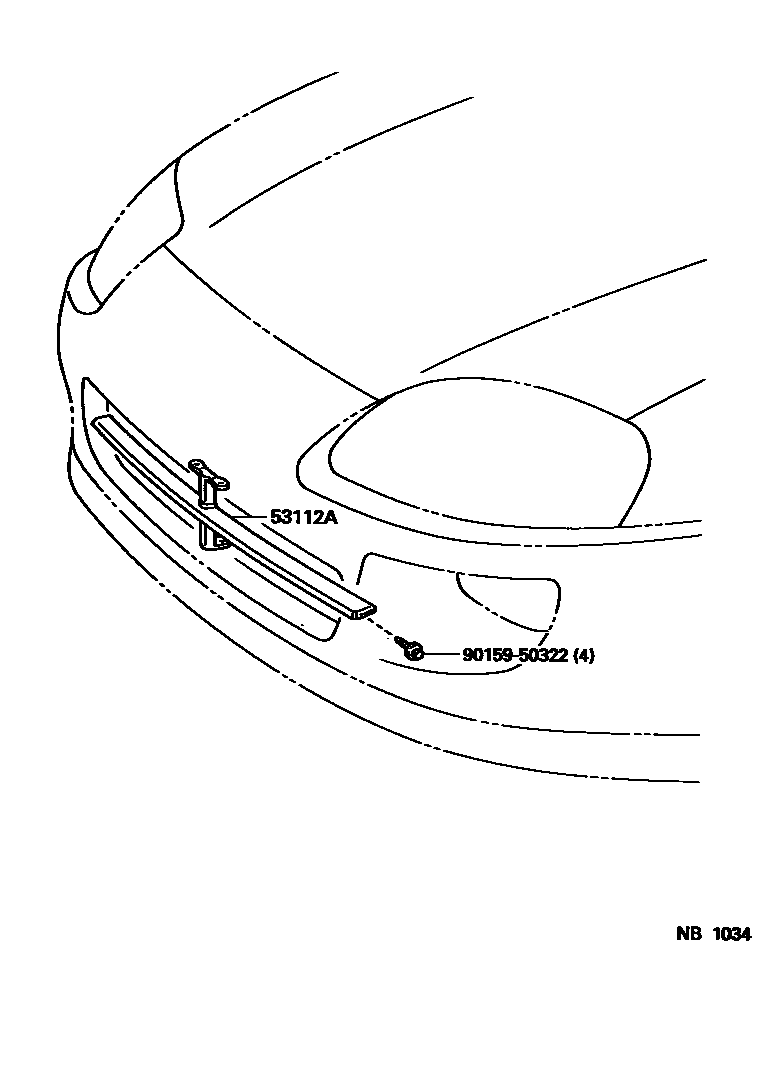

Parts diagram
53112AGRILLE, RADIATOR, LOWER
main53112-14070-A0i199605
SUPER WHITE 2,040
main53112-14070-B0i199605-199709
SILVER ME,199
main53112-14070-B1i199709
SILVER GR.SF.,1B9
main53112-14070-C0i199605
BLACK,202
main53112-14070-D0i199605-200012
SUPER RED 4,3L2
main53112-14070-D1i200012
SUPER RED 5,3P0
main53112-14070-F0i199808
SUPER BRIGHT YELLOW,576
main53112-14070-G0i199605
GRAYISH GREEN M.M.,6N0
main53112-14070-G1i199605-199709
DK GREEN M.M.,6P3
main53112-14070-G2i199709-199808
DK. GREEN MC.,6Q7
main53112-14070-J0i199605
BLUE M.M.,8L5
9015950322
main90159-50322

2 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota SUPRA

This section contains 2 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota SUPRA. Key components include: GRILLE, RADIATOR, LOWER.
