Toyota SUPRA — PARTIAL ENGINE ASSEMBLY

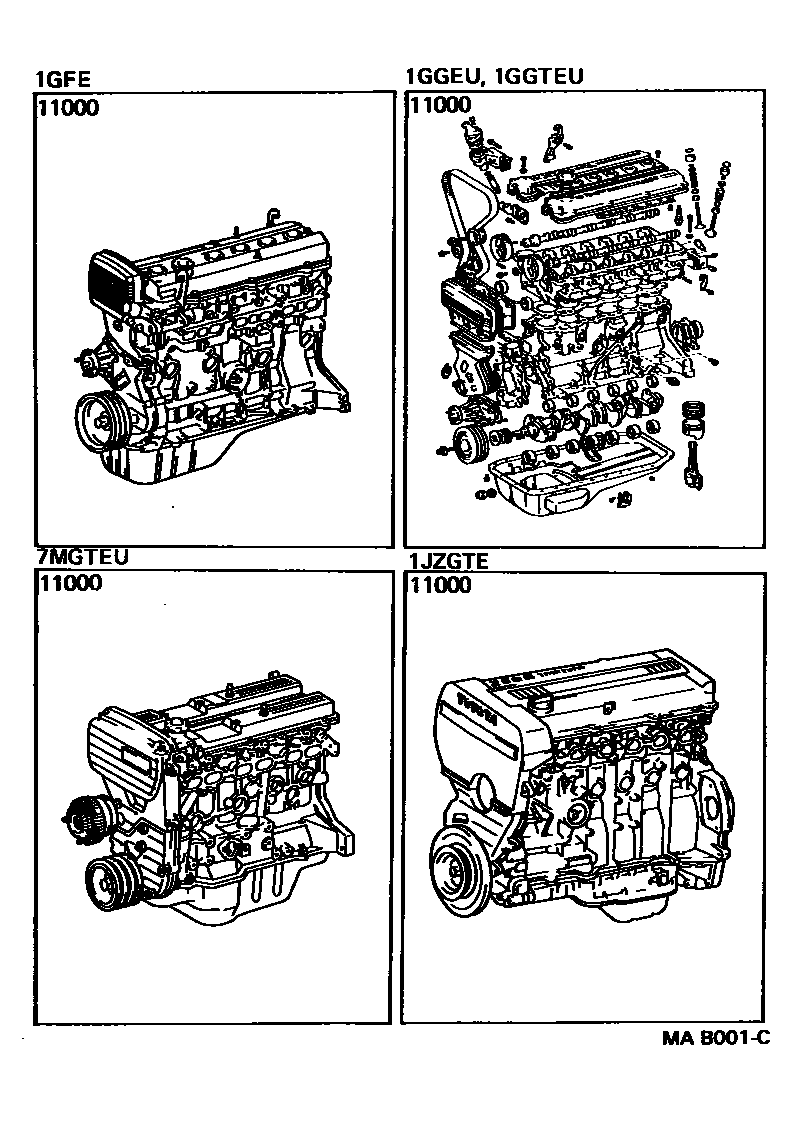

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-42230i198808-198903
main19000-42231i198903-198908
main19000-42232i198908-199008
main19000-70200i198808-199005
sub17303-70051
main19000-70201i199005-199105
sub19000-70202
main19000-70210i198808-199110
main19000-88329i199110-199305
main19000-88354i198808-199305
main19000-88401i199008-199210
main19000-88404i199210-199305

1 parts on this diagram · 1 diagram in section
