Toyota SUPRA — PARTIAL ENGINE ASSEMBLY

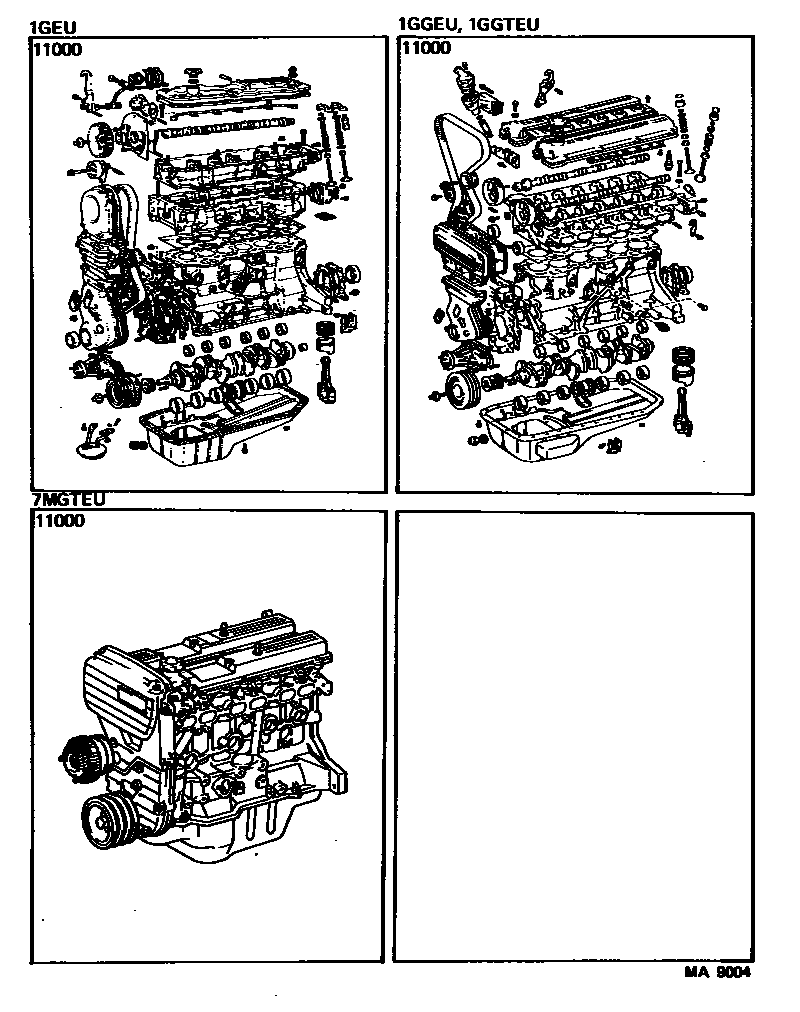

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-42090i198602-198608

main19000-42091i198608-198703

main19000-42092i198703-198808

main19000-70110i198602-198801

main19000-70111i198801-198808

main19000-70130i198611-198701

main19000-70140i198701-198808

main19000-88323i198602-198609

main19000-88351i198602-198808

1 parts on this diagram · 1 diagram in section
