Toyota SUPRA — MOUNTING

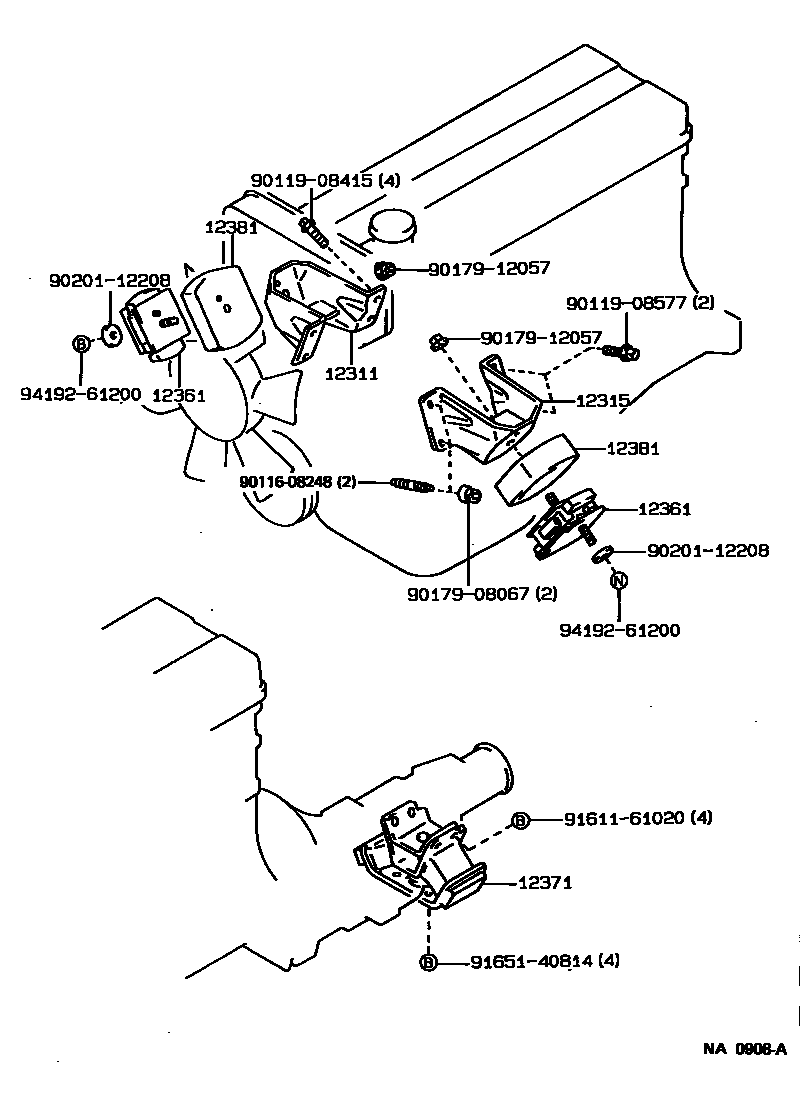

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-42020i198808-198901

main12311-42040i198901-199008

main12311-70070i198808-198901

main12311-70080i198808-198812

WHITE

main12311-70110i198901-199305

main12311-88400i199008-199305

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-42020i198808-198901

main12315-42040i198901-199008

main12315-70050i198812-198901

main12315-70080i198901-199305

main12315-88400i199008-199305

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-42030×2i198808-198901

main12361-42050×2i198901-199305

main12361-46040×2i199008-199305

main12361-70060×2i198812-198901

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-42020i198901-199305

main12371-70020i198812-198901

12381STABILIZER, ENGINE MOUNTING

main12381-42010×2i198808-198812

main12381-42030×2i198812-198901

9011608248

main90116-08248

9011908415

main90119-08415

9011908577

main90119-08577

9017908067

main90179-08067

9017912057

main90179-12057

9020112208

main90201-12208

9161161020

main91611-61020

9165140814

main91651-40814

9419261200

main94192-61200

14 parts on this diagram · 8 diagrams in section

MOUNTING for Toyota SUPRA

This section contains 38 genuine Toyota parts for the MOUNTING system of the Toyota SUPRA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
