Toyota SUPRA — MOUNTING

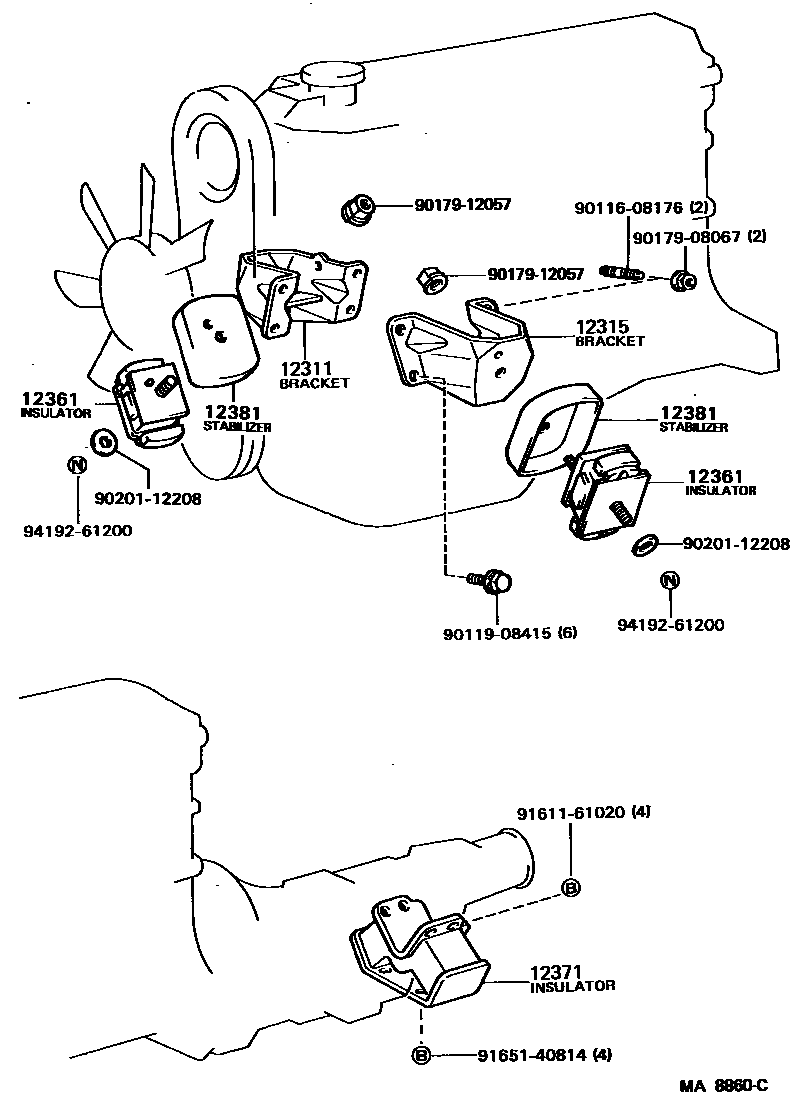

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-42020i198602-198808

main12311-70070i198602-198808

BLUE

main12311-70080i198602-198808

WHITE

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-42020i198602-198808

main12315-70050i198602-198808

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-42030×2i198602-198808

main12361-70060×2i198602-198808

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-70020i198602-198808

12381STABILIZER, ENGINE MOUNTING

main12381-42010×2i198602-198808

9011608176

main90116-08176

9011908415

main90119-08415

9017908067

main90179-08067

9017912057

main90179-12057

9020112208

main90201-12208

9161161020

main91611-61020

9165140814

main91651-40814

9419261200

main94192-61200

13 parts on this diagram · 3 diagrams in section

MOUNTING for Toyota SUPRA

This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota SUPRA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
