Toyota SUPRA — MIRROR

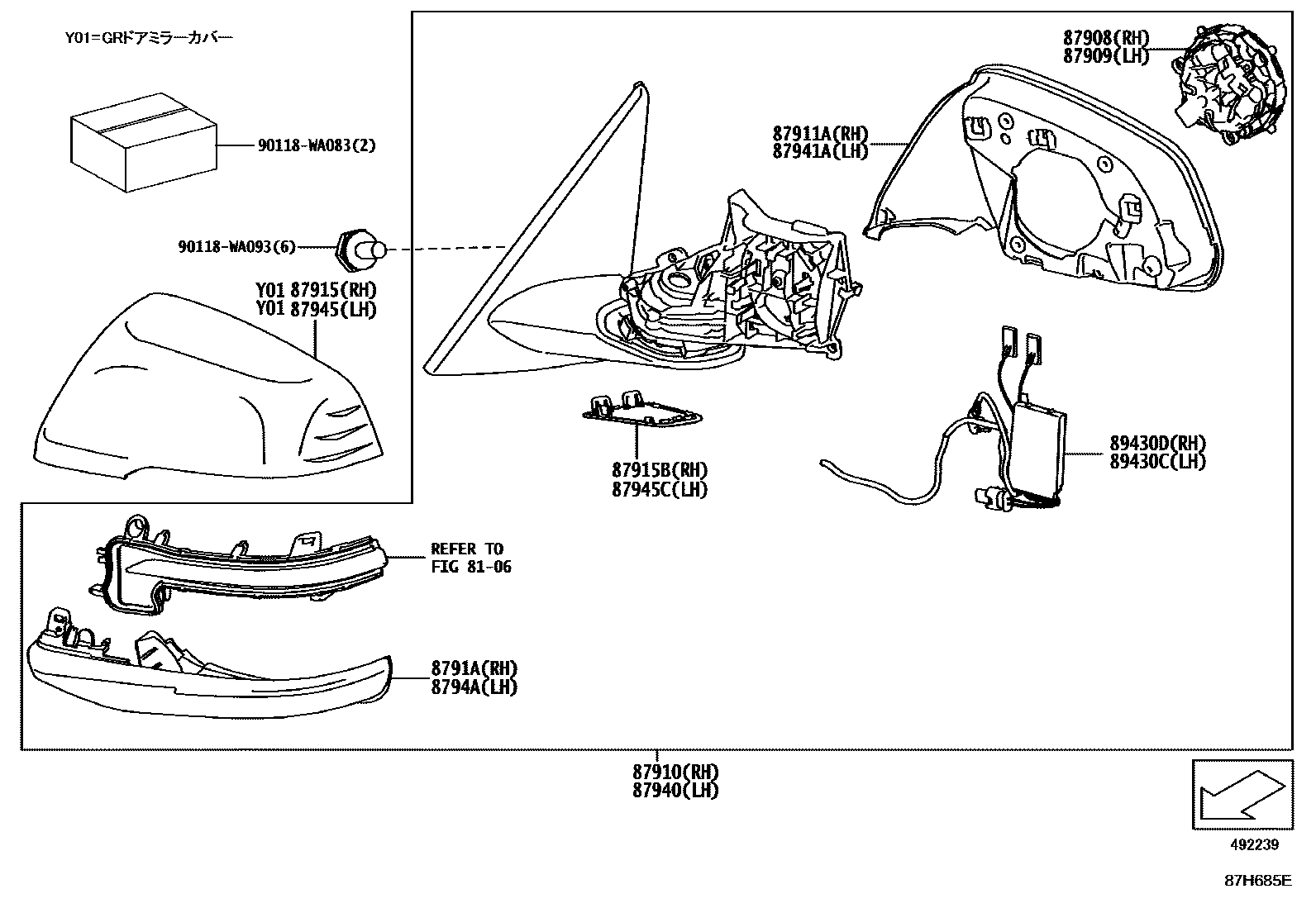

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-WAA02i202007

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-WAA02i201903

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-WAA10supersedes 87910-WAA02i201903

main87910-WAA12supersedes 87910-WAA04i202007

87911AVISOR, OUTER MIRROR, RH

main87911-WAA01i201903

main87911-WAA02i201903-202002

87915COVER, OUTER MIRROR, RH

main87915-WAA15supersedes 87915-WAA14i201903

main87915-WAA12i201903

main87915-WAA14i201903

87915BCOVER, OUTER MIRROR, LOWER RH

main87914-WAA01i202007

8791ACOVER, OUTER MIRROR, RH NO.2

main87939-WAA02i201903

main87939-WAA03i201903-202002

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-WAA10supersedes 87940-WAA02i201903

main87940-WAA12supersedes 87940-WAA04i201903-202002

87941AVISOR, OUTER MIRROR, LH

main87941-WAA01i201903

main87941-WAA02i201903-202002

87945COVER, OUTER MIRROR, LH

main87945-WAA15supersedes 87945-WAA14i201903

main87945-WAA12i201903

main87945-WAA14i201903

87945CCOVER, OUTER MIRROR, LOWER LH

main87944-WAA01i201903-202002

8794ACOVER, OUTER MIRROR, LH NO.2

main87948-WAA02i201903

main87948-WAA03i201903-202002

89430CCOMPUTER ASSY, OUTER MIRROR CONTROL, LH

main89430-WAA17supersedes 89430-WAA25i201903-202002

main89430-WAA27supersedes 89430-WAA25i202012

89430DCOMPUTER ASSY, OUTER MIRROR CONTROL, RH

main89430-WAA32supersedes 89430-WAA30i201903

90118WA083

main90118-WA083

90118WA093

main90118-WA093

17 parts on this diagram · 5 diagrams in section

MIRROR for Toyota SUPRA

This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota SUPRA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
