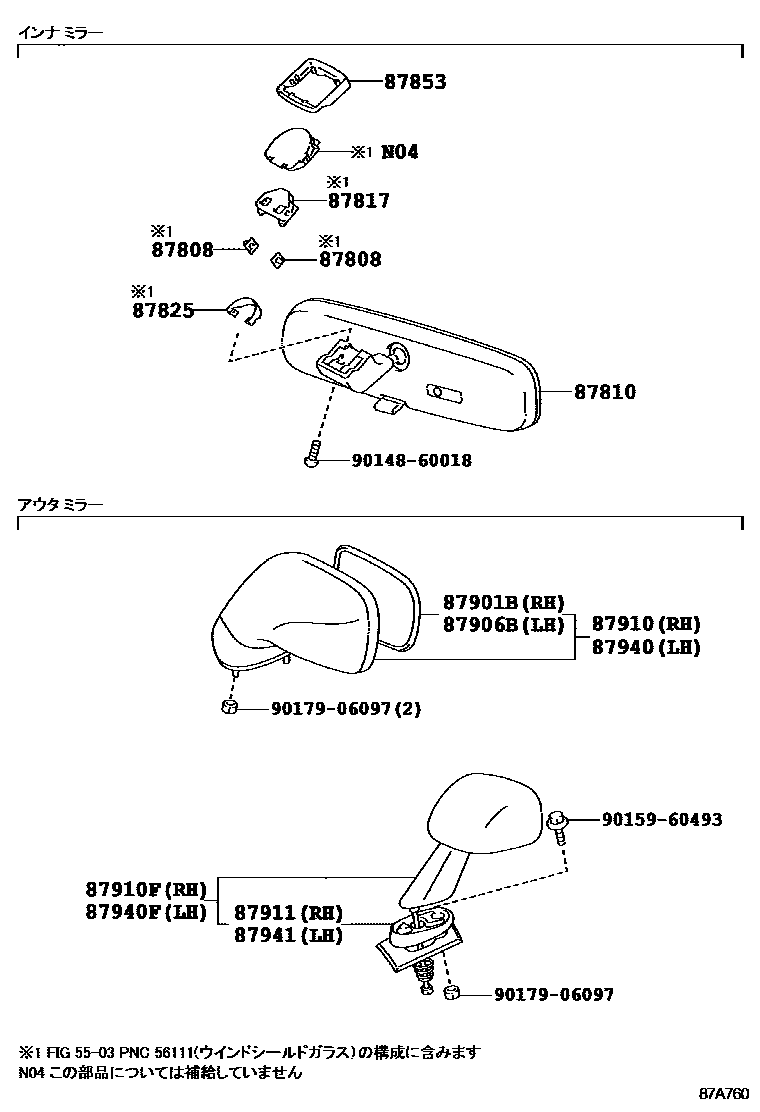

Toyota SUPRA — MIRROR

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2i199305

87810MIRROR ASSY, INNER REAR VIEW

main87810-14180-C0i199305-199605

BLACK,TRIM0#,2#

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010i199305

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010i199305

87853BASE, INNER REAR VIEW MIRROR

main87853-24020i199305

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-14590i199305-199408

main87931-1B140i199408

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1B130i199305-199408

main87961-1B170i199408

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-14590-A0i199305-199408

SUPER WHITE 2,040

main87910-14590-B0i199305-199408

DK.BROWNISH GRAY M M,1A1

main87910-14590-B1i199305-199408

SILVER METALLIC,199

main87910-14590-C0i199305-199408

BLACK,202

main87910-14590-D0i199305-199408

SUPER RED 4,3L2

main87910-14590-H0i199305-199408

DEEP TEAL METALLIC,752

main87910-1B140-A0i199408-199605

SUPER WHITE 2,040

main87910-1B140-B0i199408-199505

DK BROWNISH GRAY MM,1A1

main87910-1B140-B1i199408-199605

SILVER ME,199

main87910-1B140-C0i199408-199605

BLACK,202

main87910-1B140-D0i199408-199605

SUPER RED 4,3L2

main87910-1B140-G0i199505-199605

DK.GREEN M.M.,6P3

main87910-1B140-H0i199408-199605

DEEP TEAL ME,752

main87910-1B170-A0i199605

SUPER WHITE 2,040

main87910-1B170-B0i199605-199709

SILVER ME,199

main87910-1B170-B1i199709

SILVER GR.SF.,1B9

main87910-1B170-C0i199605

BLACK,202

main87910-1B170-D0i199605-200012

SUPER RED 4,3L2

main87910-1B170-D1i200012

SUPER RED 5,3P0

main87910-1B170-F0i199808

SUPER BRIGHT YELLOW,576

main87910-1B170-G0i199605

GRAYISH GREEN M.M.,6N0

main87910-1B170-G1i199605-199709

DK.GREEN M.M.,6P3

main87910-1B170-J0i199605

BLUE M.M.,8L5

87910FMIRROR ASSY, FENDER, RH

main87910-1B120i199305-199408

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-14270i199305-199408

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1B130-A0i199305-199408

SUPER WHITE 2,040

main87940-1B130-B0i199305-199408

DK.BROWNISH GRAY M M,1A1

main87940-1B130-B1i199305-199408

SILVER METALLIC,199

main87940-1B130-C0i199305-199408

BLACK,202

main87940-1B130-D0i199305-199408

SUPER RED 4,3L2

main87940-1B130-H0i199305-199408

DEEP TEAL METALLIC,752

main87940-1B170-A0i199408-199605

SUPER WHITE 2,040

main87940-1B170-B0i199408-199505

DK BROWNISH GRAY MM,1A1

main87940-1B170-B1i199408-199605

SILVER ME,199

main87940-1B170-C0i199408-199605

BLACK,202

main87940-1B170-D0i199408-199605

SUPER RED 4,3L2

main87940-1B170-G0i199505-199605

DK.GREEN M.M.,6P3

main87940-1B170-H0i199408-199605

DEEP TEAL ME,752

main87940-1B200-A0i199605

SUPER WHITE 2,040

main87940-1B200-B0i199605-199709

SILVER ME,199

main87940-1B200-B1i199709

SILVER GR.SF.,1B9

main87940-1B200-C0i199605

BLACK,202

main87940-1B200-D0i199605-200012

SUPER RED 4,3L2

main87940-1B200-D1i200012

SUPER RED 5,3P0

main87940-1B200-F0i199808

SUPER BRIGHT YELLOW,576

main87940-1B200-G0i199605

GRAYISH GREEN M.M.,6N0

main87940-1B200-G1i199605-199709

DK.GREEN M.M.,6P3

main87940-1B200-J0i199605

BLUE M.M.,8L5

87940FMIRROR ASSY, FENDER, LH

main87940-1B160i199305-199408

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-14270i199305-199408

9014860018

main90148-60018

9015960493

main90159-60493

9017906097

main90179-06097

16 parts on this diagram · 1 diagram in section

MIRROR for Toyota SUPRA

This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota SUPRA. Key components include: HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING, BASE, INNER REAR VIEW MIRROR.
