Toyota SUPRA — METER

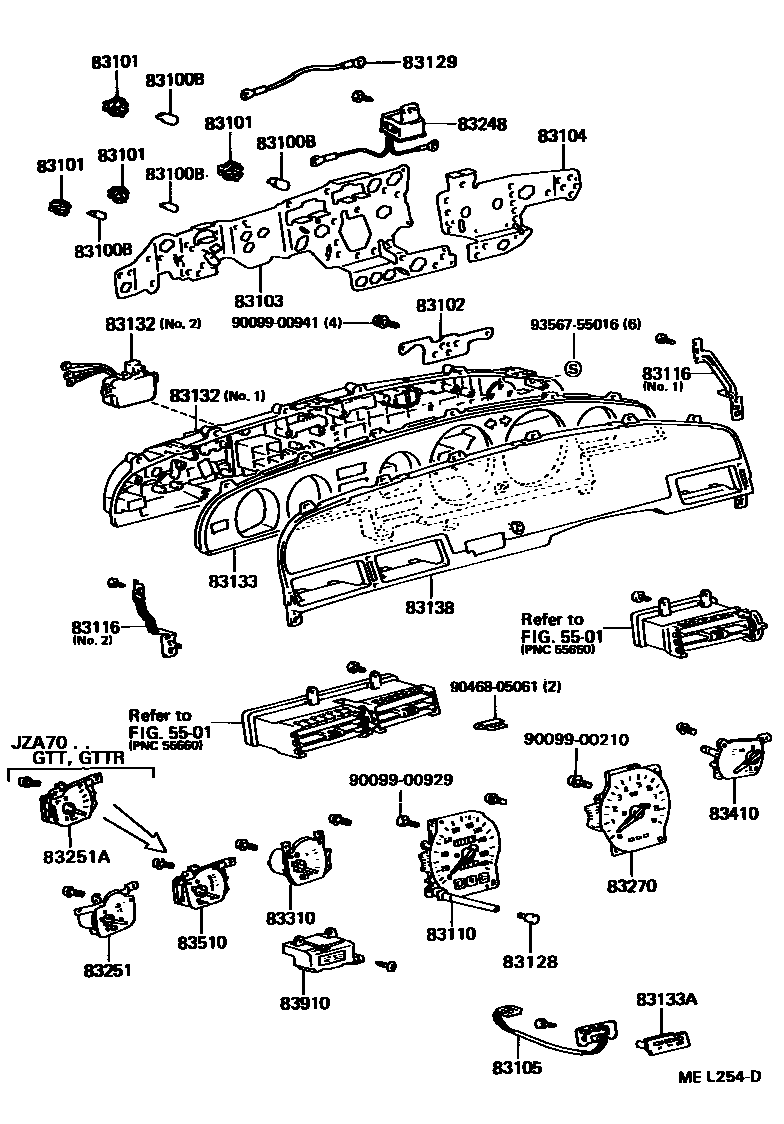

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

83100BBULB, COMBINATION METER, NO.1

main83109-24010i198808-199305

main83109-24020×4i198808-199305

main83119-24010×4i199008-199305

main90981-11018i198808-199305

main99132-12034×4i198908-199008

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×8i199008-199108

main83101-14040i198808-199305

BULB=12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1J200i198808-198908

main83247-1J510i198908-199008

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-15290i199008-199305

main83247-15310i199008-199305

main83247-15470i199008-199305

main83247-15490i199008-199305

main83247-1B120i198908-199008

main83247-1B280i198808-198908

main83247-1B300i198908-199008

main83247-1J670i198808-199008

main83247-1J720i198808-199008

83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3

main83247-15190i199008-199108

main83247-15210i199008-199305

main83247-15230i199008-199305

main83247-15250i199008-199305

main83247-15270i199008-199305

main83247-15670i199108-199305

main83247-15690i199108-199305

main83247-1J550i198902-198904

main83247-1J570i198902-198904

main83247-1J590i198808-199008

main83247-1J610i198808-199008

main83247-1J630i198908-199008

83105PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4

main83247-1J140i198808-198908

83110SPEEDOMETER ASSY

main83110-1B111i198908-199208

main83110-1B112i199208-199305

83116BRACKET, SPEEDOMETER

main83116-14110i198808-199305

main83116-14130i198808-199305

83128KNOB, TRIP COUNTER

main83128-10260i198808-198908

83129WIRE, METER

main83129-14230i198808-198908

main83129-14290i199008-199305

main83129-14310i199008-199305

83132CASE, COMBINATION METER

main83132-1B040i198902-198904

main83132-1B180i198908-199008

main83132-1B720i199008-199305

main83132-1B740i199108-199305

main83132-1B760i199008-199305

main83132-1J020i199008-199108

main83132-1J550i198808-199008

main83132-1J830i198808-199305

83133PLATE, COMBINATION METER, NO.1

main83133-14600i198808-198908

main83133-14620i198808-199008

main83133-14640i198908-199008

main83133-1D050i199008-199305

main83133-1D070i199008-199305

83133APLATE, COMBINATION METER, NO.2

main83133-14820i198908-199305

main83133-14840i198908-199008

83138GLASS, SPEEDOMETER

main83138-1B170i198908-199008

main83138-1B210i198808-198908

83248CHIME, SPEED WARNING

main86640-14090i199008-199305

main86640-14100i198808-198908

83251METER, VOLTAGE

main83251-14770i198808-199305

main83251-14790i198908-199008

83251APRESSURE METER, TURBO

main83251-14890i199008-199305

83270TACHOMETER ASSY, ENGINE

main83242-15010i198902-198904

main83242-15530i198908-199008

main83242-15550i198908-199008

main83242-1D410i198808-199008

main83242-1D430i198808-199108

main83242-1D450i198808-199008

main83242-1D470i198808-199008

main83242-1D490i198808-199008

main83242-1D510i198808-198809

main83242-1D890i198902-198904

main83242-1J170i199008-199108

main83242-1J190i199008-199305

main83242-1J210i199008-199305

main83242-1J230i199008-199305

main83242-1J250i199008-199305

main83242-1U190i199108-199305

main83242-1U210i199108-199305

83310GAGE ASSY, FUEL RECEIVER

main83243-1B010i198808-198908

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B330i198808-198908

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14810i198808-198908

83910CLOCK ASSY

main83910-14340i198808-198908

main83910-14361i198908-199008

9009900210

main90099-00210

9009900929

main90099-00929

9009900941

main90099-00941

9046805061

main90468-05061

9356755016

main93567-55016

28 parts on this diagram · 4 diagrams in section

METER for Toyota SUPRA

This section contains 64 genuine Toyota parts for the METER system of the Toyota SUPRA. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2.
