Toyota SUPRA — INSTRUMENT PANEL & GLOVE COMPARTMENT

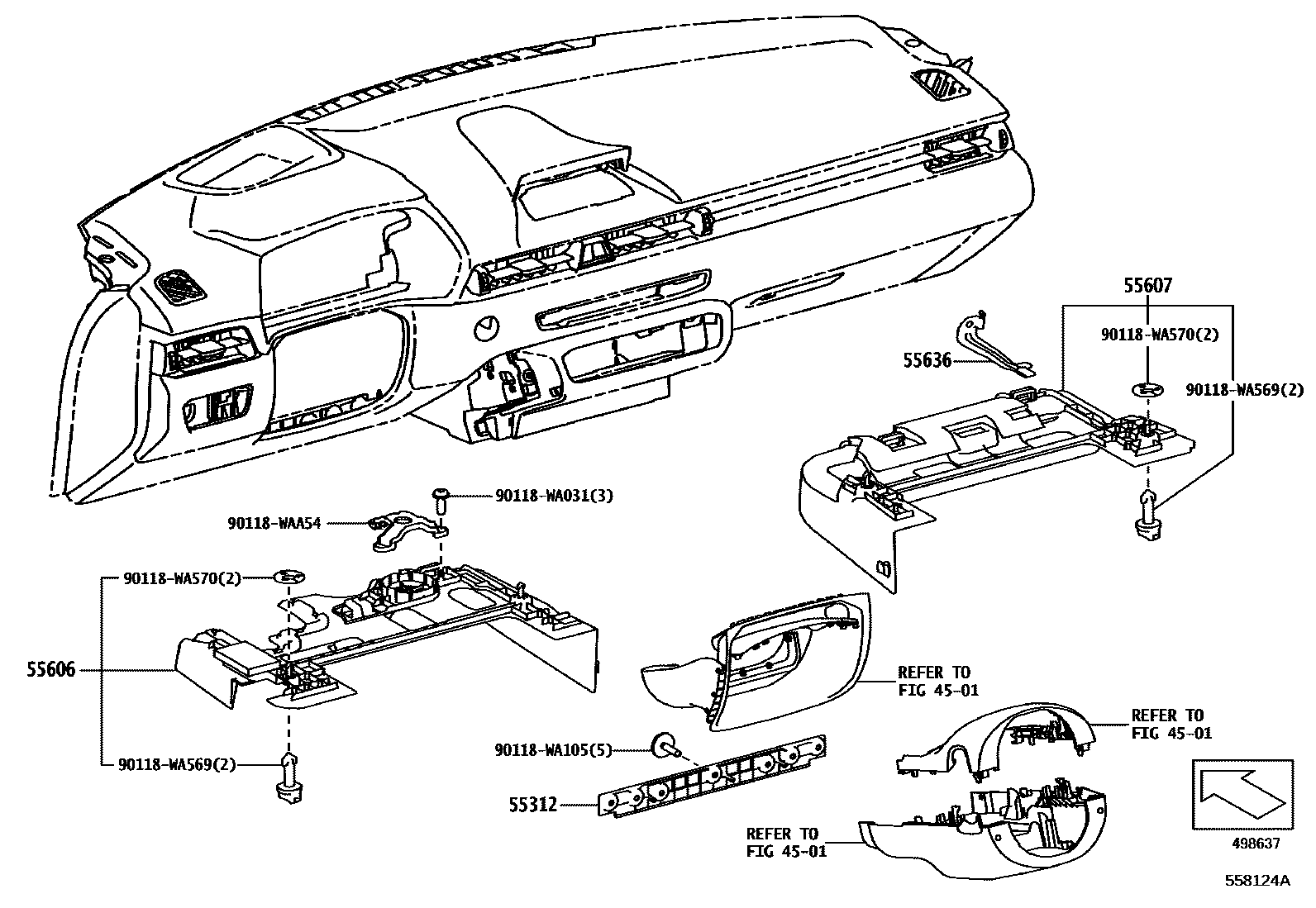

Parts diagram

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

55312PANEL, INSTRUMENT, LOWER

main73900-WAA05i202207

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-WAA02i202207

main55606-WAA04i202207

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-WAA02i202207

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55374-WAA02i202207

90118WA031

main90118-WA031

90118WA105

main90118-WA105

90118WA569

main90118-WA569

90118WA570

main90118-WA570

90118WAA54

main90118-WAA54

10 parts on this diagram · 8 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SUPRA

This section contains 61 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SUPRA. Key components include: STEERING COLUMN & SHAFT, GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL ASSY, INSTRUMENT, UPPER, REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL.
