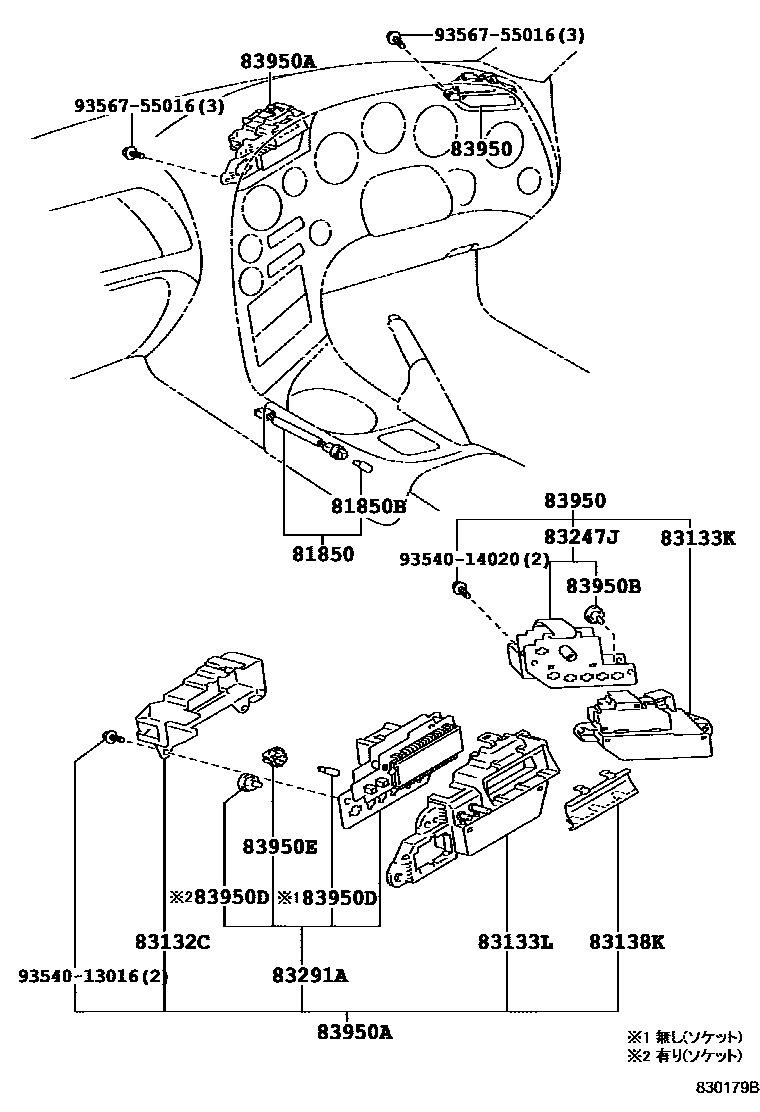

Toyota SUPRA — INDICATOR

0001 1 0002 1

81850LAMP ASSY, INDICATOR

main81850-33010iJZA80199305-199908

81850BBULB, INDICATOR LAMP

main90981-11014iJZA80199305-199908

83132CCASE, TELLTALE LAMP

main83132-1J360iJZA80199305-199605

83133KPLATE, TELLTALE LAMP

main83133-1D470iJZA80199305-199605

sub83133-1D490

main83133-1D471iJZA80199605-199908

83133LPLATE SUB-ASSY, TELLTALE LAMP

main83133-1D370iJZA80199305-199605

83138KGLASS, TELLTALE LAMP

main83138-1B290iJZA80199305-199605

83247JCIRCUIT SUB-ASSY, TELLTALE LAMP

main83247-1U310iJZA80199305-199908

83291ACOMPUTER, COMBINATION METER

main83291-14060iJZA80199305-199605

83950LAMP ASSY, TELLTALE

main83950-14010iJZA80199305-199605

main83950-14011iJZA80199605-199908

83950ALAMP ASSY, TELLTALE

main83950-14070iJZA80199305-199605

main83950-14130iJZA80199605-199709

main83950-14131iJZA80199709-199908

83950BBULB, TELLTALE LAMP

main83119-24070×4iJZA80199908

83950DBULB, TELLTALE LAMP

main83109-30070iJZA80199305-199605

main83119-24070×6iJZA80199605-199908

main83119-24670×4iJZA80199908

main90981-11018×4iJZA80199305-199605

83950ESOCKET, TELLTALE LAMP

main83101-14040×5iJZA80199305-199605

9354013016

main93540-13016

9354014020

main93540-14020

9356755016

main93567-55016

16 parts on this diagram · 2 diagrams in section
