Toyota SUPRA — IGNITION COIL & SPARK PLUG / GLOW PLUG

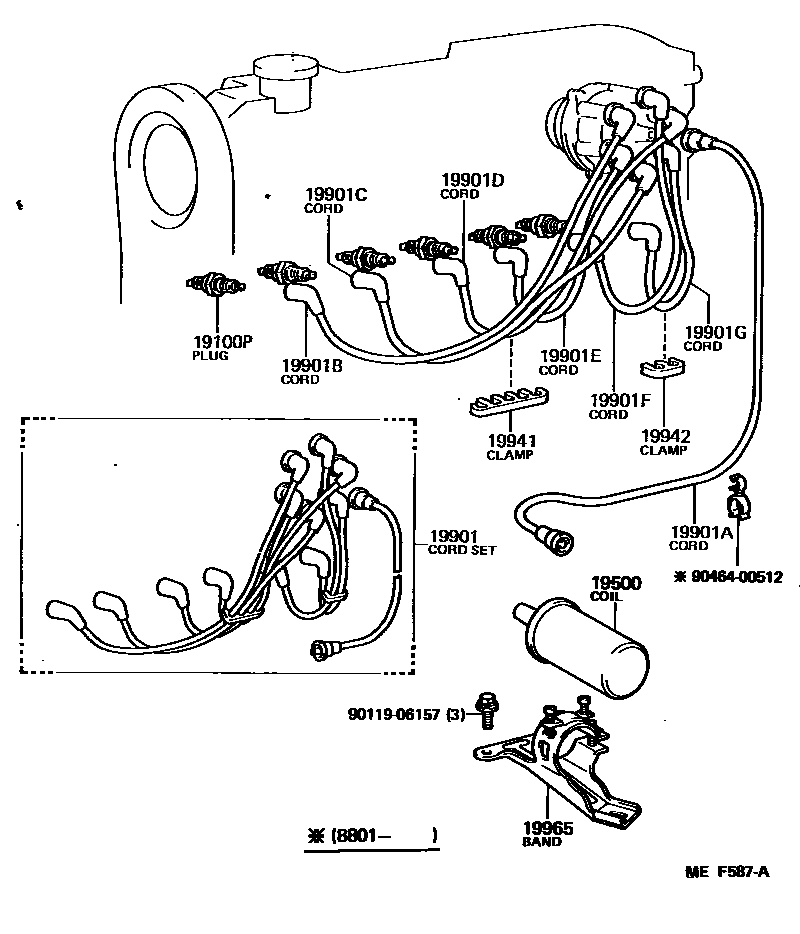

Parts diagram

19100PPLUG, SPARK

main90919-01119×6i198602-198808

main90919-01120×6i198602-198808

main90919-01121×6i198602-198701

main90919-01122×6i198602-198701

main90919-01127×6i198701-198808

main90919-01128×6i198701-198808

main90919-01145×6i198602-198808

main90919-01146×6i198602-198808

19500COIL ASSY, IGNITION

main90919-02113i198602-198808

main90919-02146i198602-198808

main90919-02174×3i198602-198808

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21254i198602-198808

main90919-21385i198602-198808

main90919-21390i198602-198710

main90919-21420i198710-198808

main90919-22176i198602-198808

19901ACORD, COIL RESISTIVE

main90919-13153i198602-198808

main90919-13204i198602-198710

main90919-13260i198602-198808

main90919-13291i198710-198808

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12330i198602-198705

main90919-12336i198705-198808

main90919-12451i198602-198806

main90919-12596i198602-198710

main90919-12640i198602-198808

main90919-12841i198710-198808

main90919-12930i198806-198808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12331i198602-198705

main90919-12336i198705-198808

main90919-12452i198602-198806

main90919-12597i198602-198710

main90919-12641i198602-198808

main90919-12842i198710-198808

main90919-12931i198806-198808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12332i198602-198705

main90919-12338i198705-198808

main90919-12453i198602-198806

main90919-12598i198602-198710

main90919-12642i198602-198808

main90919-12843i198710-198808

main90919-12932i198806-198808

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12333i198602-198705

main90919-12339i198705-198808

main90919-12454i198602-198806

main90919-12599i198602-198710

main90919-12643i198602-198808

main90919-12844i198710-198808

main90919-12933i198806-198808

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12334i198602-198705

main90919-12340i198705-198808

main90919-12455i198602-198806

main90919-12600i198602-198710

main90919-12644i198602-198808

main90919-12845i198710-198808

main90919-12934i198806-198808

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12335i198602-198705

main90919-12341i198705-198808

main90919-12456i198602-198806

main90919-12601i198602-198710

main90919-12645i198602-198808

main90919-12846i198710-198808

main90919-12935i198806-198808

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00208×2i198602-198808

main90929-01044i198602-198808

main90929-01100i198602-198808

main90929-01140i198602-198808

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00214×2i198602-198808

main90464-00307i198602-198808

main90464-00425×2i198602-198808

main90929-01143i198602-198808

19965BAND, IGNITION COIL, NO.1

main90919-03086i198602-198808

9011906157

main90119-06157

9046400512

main90464-00512

15 parts on this diagram · 4 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota SUPRA

This section contains 34 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota SUPRA. Key components include: COIL ASSY, W/BRACKET & CORD, BUSH(FOR IGNITION COIL BRACKET), SPACER(FOR IGNITION COIL BRACKET), PLUG, SPARK, COIL ASSY, IGNITION.
