Toyota SUPRA — HEATING & AIR CONDITIONING - SET

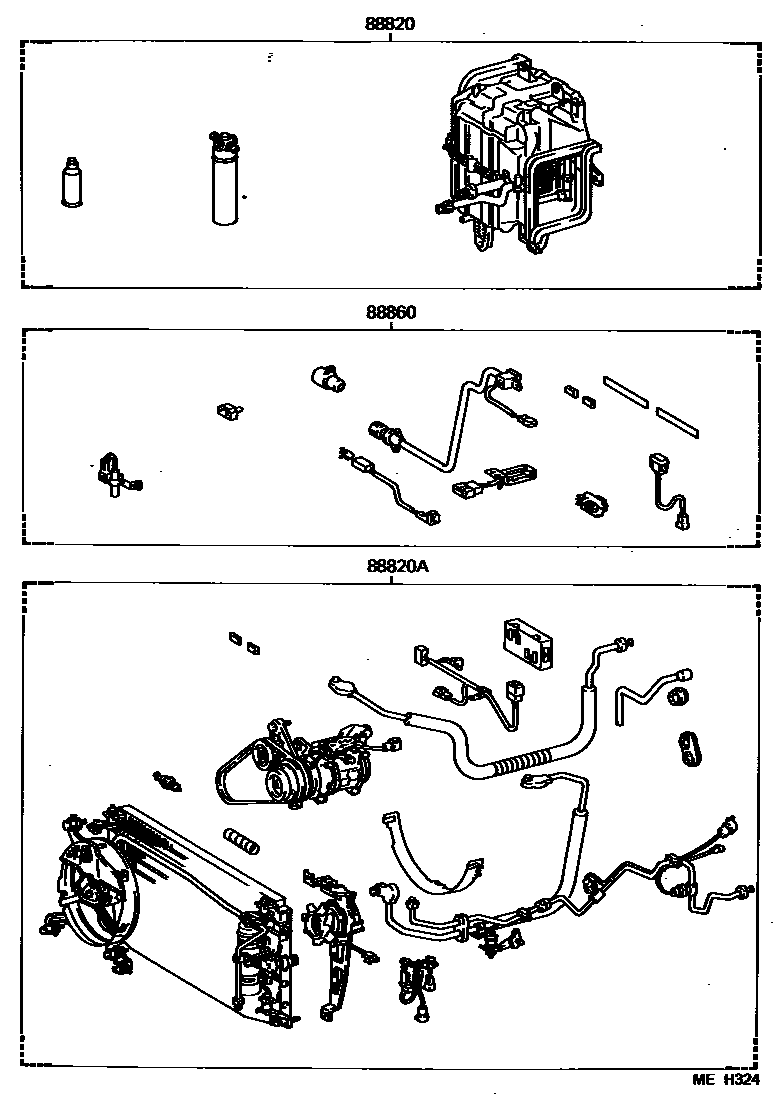

Parts diagram

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-24030i198602-198808

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-14190i198602-198701

main88830-14191i198701-198808

main88830-14200i198602-198701

main88830-14210i198602-198701

main88830-14211i198701-198808

main88830-14220i198602-198602

main88830-14221i198602-198701

main88830-14222i198701-198808

main88830-14240i198701-198808

88860ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER

main88860-14160i198602-198701

main88860-14161i198701-198808

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota SUPRA

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota SUPRA. Key components include: AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2, ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER.
