Toyota SUPRA — HEATING & AIR CONDITIONING - COMPRESSOR

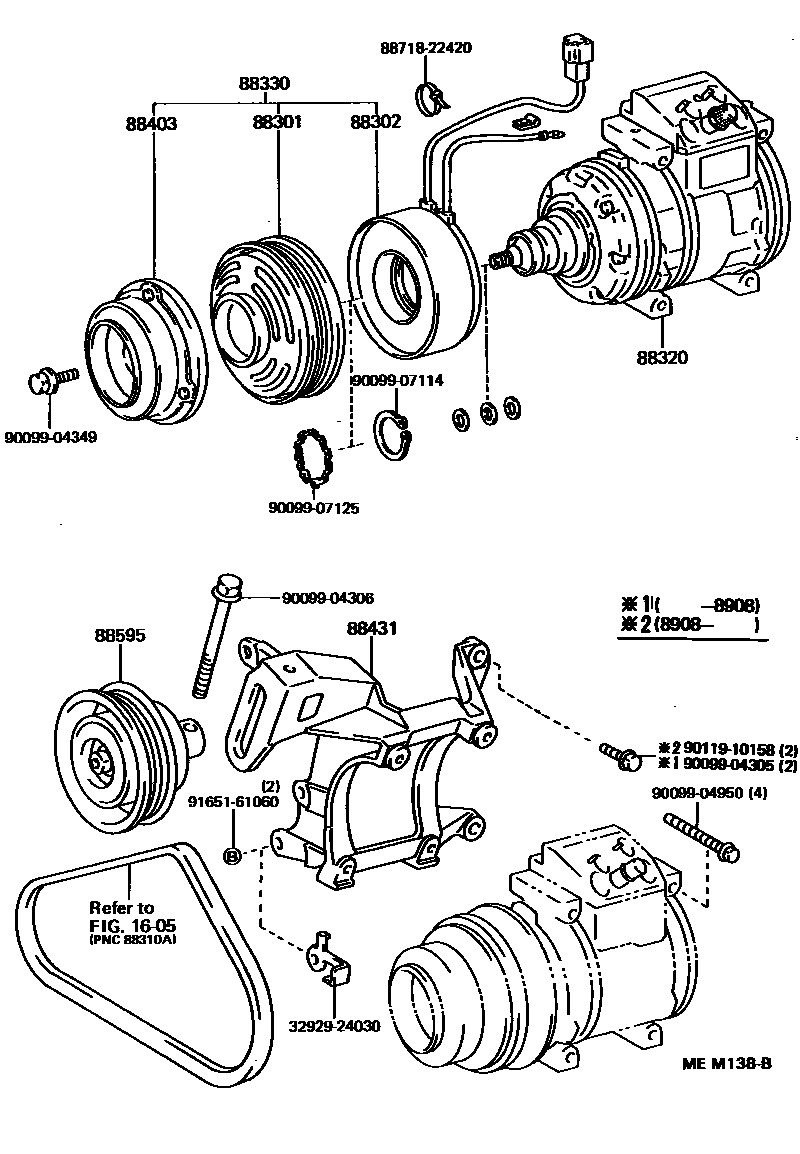

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160i198808-199305

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14111i198908-199109

main88411-14120i199109-199305

88320COMPRESSOR ASSY, COOLER

main88320-14521i198808-198908

main88320-14531i198908-199008

main88320-14532i199008-199108

main88320-14541i198808-199106

main88320-14560i198908-199008

main88320-14570i199008-199305

88330CLUTCH ASSY, MAGNET

main88410-14181i198808-198908

main88410-14210i198908-199209

main88410-14220i199008-199305

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011i198808-199305

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-24060i198808-199305

main88431-24070i198808-199008

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010i198808-199305

3292924030CLAMP, FLEXIBLE HOSE, NO.2

main32929-24030

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9009904305

main90099-04305

9009904306

main90099-04306

9009904349

main90099-04349

9009904950

main90099-04950

9009907114

main90099-07114

9009907125

main90099-07125

9011910158

main90119-10158

9165161060

main91651-61060

18 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota SUPRA

This section contains 31 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota SUPRA. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, CLUTCH ASSY, MAGNET.
