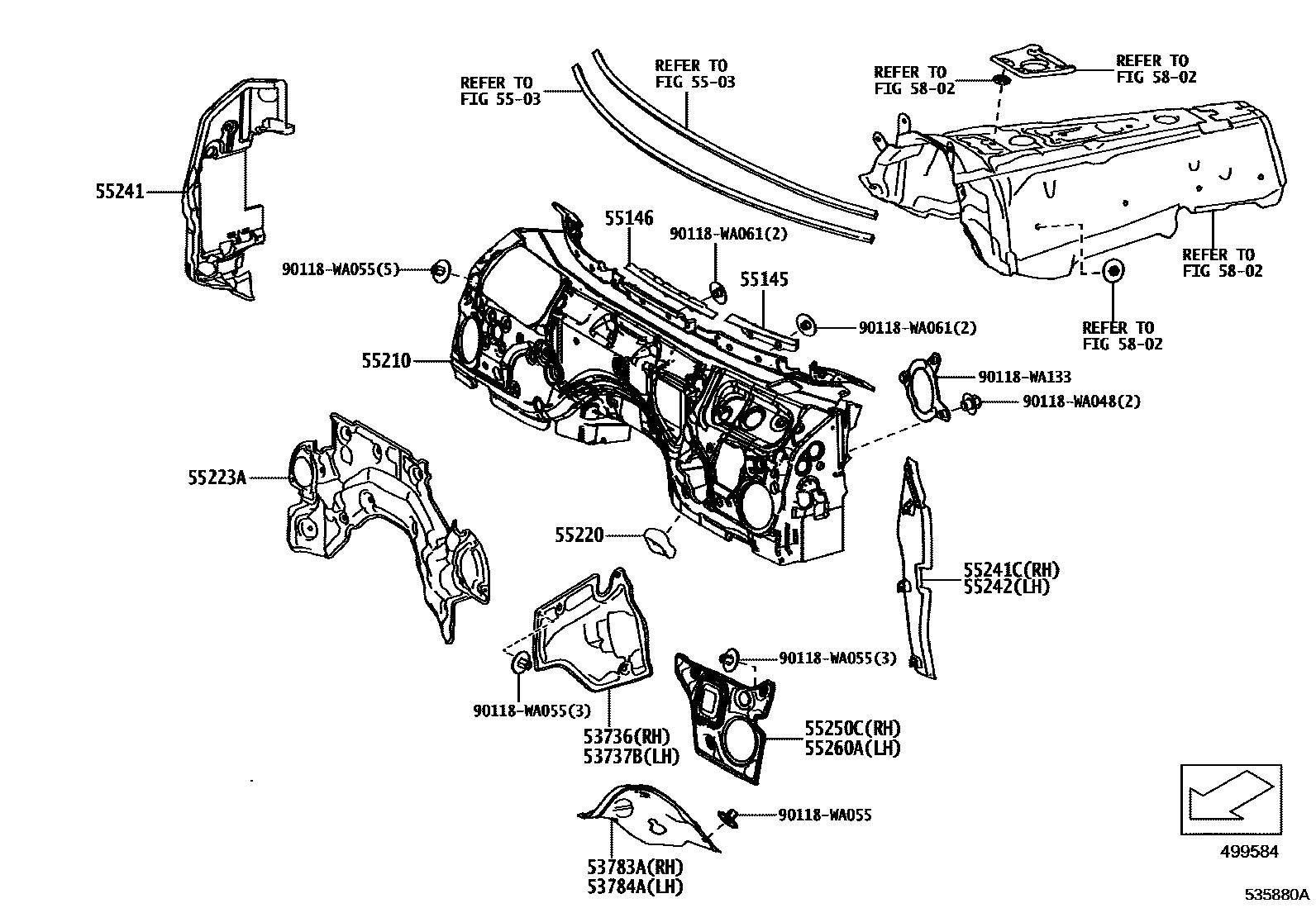

Toyota SUPRA — FRONT FENDER APRON & DASH PANEL

53736SEAL, FRONT FENDER APRON, RH

main53781-WAA01i201903-202002

53737BSEAL, FRONT FENDER APRON, LH

main53782-WAA01i201903-202002

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-WAA01i201903-202002

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-WAA01i201903-202002

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

55145PLATE, DASH PANEL HEAT INSULATOR

main55145-WAA02i201903-202002

main55145-WAA03i201903-202002

55146INSULATOR, DASH PANEL HEAT

main55145-WAA01i201903-202002

55210INSULATOR ASSY, DASH PANEL

main55210-WAA02i201903-202002

55220INSULATOR ASSY, DASH PANEL, NO.2

main53783-WAA03i201903-202002

55223AINSULATOR, DASH PANEL, OUTER

main55223-WAA01i201903-202002

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-WAA02i201903-202002

55241CSILENCER, FRONT PANEL SIDE, NO.1 RH

main53827-WAA01i201903-202002

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main53828-WAA01i201903-202002

55250CINSULATOR ASSY, DASH PANEL, LOWER RH

main55211-WAA01i201903-202002

55260AINSULATOR ASSY, DASH PANEL, LOWER LH

main55212-WAA01i201903-202002

5802FLOOR INSULATOR

→ Go to FIG 58-02

90118WA048

main90118-WA048

90118WA055

main90118-WA055

90118WA061

main90118-WA061

90118WA133

main90118-WA133

20 parts on this diagram · 6 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota SUPRA

This section contains 77 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SUPRA. Key components include: ROD SUB-ASSY, RADIATOR BRACE, FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT, RADIATOR, RH, SUPPORT, RADIATOR, LH.
