Toyota SUPRA — FRONT FENDER APRON & DASH PANEL

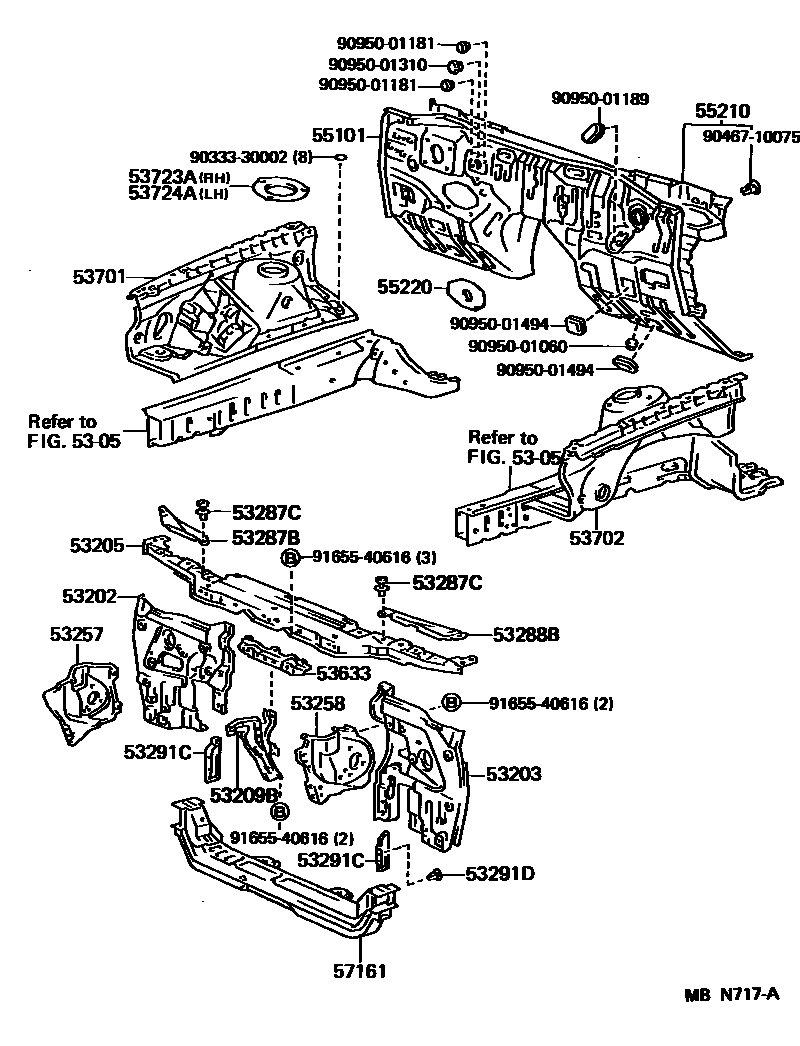

Parts diagram

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-14220i198808-199008

main53211-14221i199008-199305

main53211-14230i198808-198809

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-14200i198808-199008

main53212-14201i199008-199305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-14100i198808-199305

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-14091i198808-199305

main53209-14101i198808-198809

main53209-14110i199008-199305

53257BRACKET, FRONT END PANEL MOUNTING, RH

main53035-14020i198808-199008

main53035-14030i199008-199305

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53036-14020i198808-199008

main53036-14030i199008-199305

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-14050i198808-199305

53287CCLIP(FOR RADIATOR SOPPORT EXTENSION)

main90467-07030-01×4i199008-199305

BLACK,TRIM1#; BLACK,TRIM1#,3#

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-14060i198808-199305

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14040i198808-199305

main53292-14010i198808-199008

main53292-14020i199008-199305

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-06017-01×2i199008-199305

BLACK,TRIM1#,3#,UPPER; BLACK,TRIM1#,UPPER

main90467-06017-11×2i198808-198910

BLACK,TRIM1#,3#,8#,UPPER; BLACK,TRIM1#,UPPER

main90467-08099×2i198808-199305

LOWER

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-14050i199008-199305

main53633-22030i198808-199008

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14930i198808-199008

main53701-14934i199008-199305

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14936i198808-199008

main53702-14937i199008-199305

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-14060i198808-199305

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53723-14060i198808-199305

55101PANEL SUB-ASSY, DASH

main55101-14510i198908-199305

main55101-14540i198808-199305

main55101-14560i198808-198908

55210INSULATOR ASSY, DASH PANEL

main55210-14370i198808-199305

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-14050i198808-199305

57161CROSSMEMBER, FRONT

main57104-14120i198808-199305

main57104-14130i198808-198809

9033330002

main90333-30002

9046710075

main90467-10075

9095001060

main90950-01060

9095001181

main90950-01181

9095001189

main90950-01189

9095001310

main90950-01310

9095001494

main90950-01494

9165540616

main91655-40616

29 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota SUPRA

This section contains 29 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SUPRA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, BRACE SUB-ASSY, HOOD LOCK SUPPORT.
