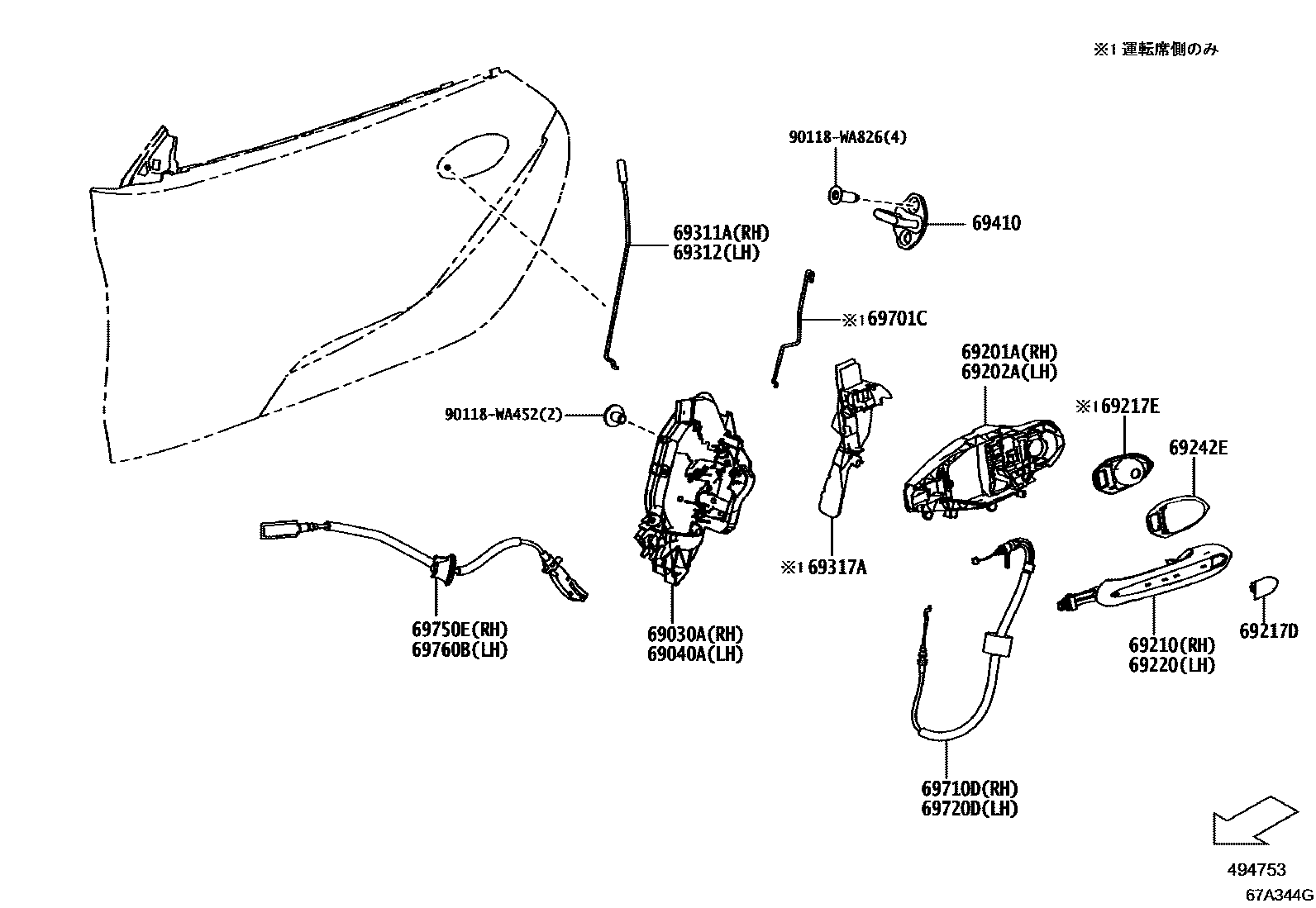

Toyota SUPRA — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69317ASPACER, DOOR LOCK
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
90118WA452
main90118-WA452
90118WA826
main90118-WA826
20 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota SUPRA
This section contains 30 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SUPRA. Key components include: FRONT DOOR PANEL & GLASS, LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH.
