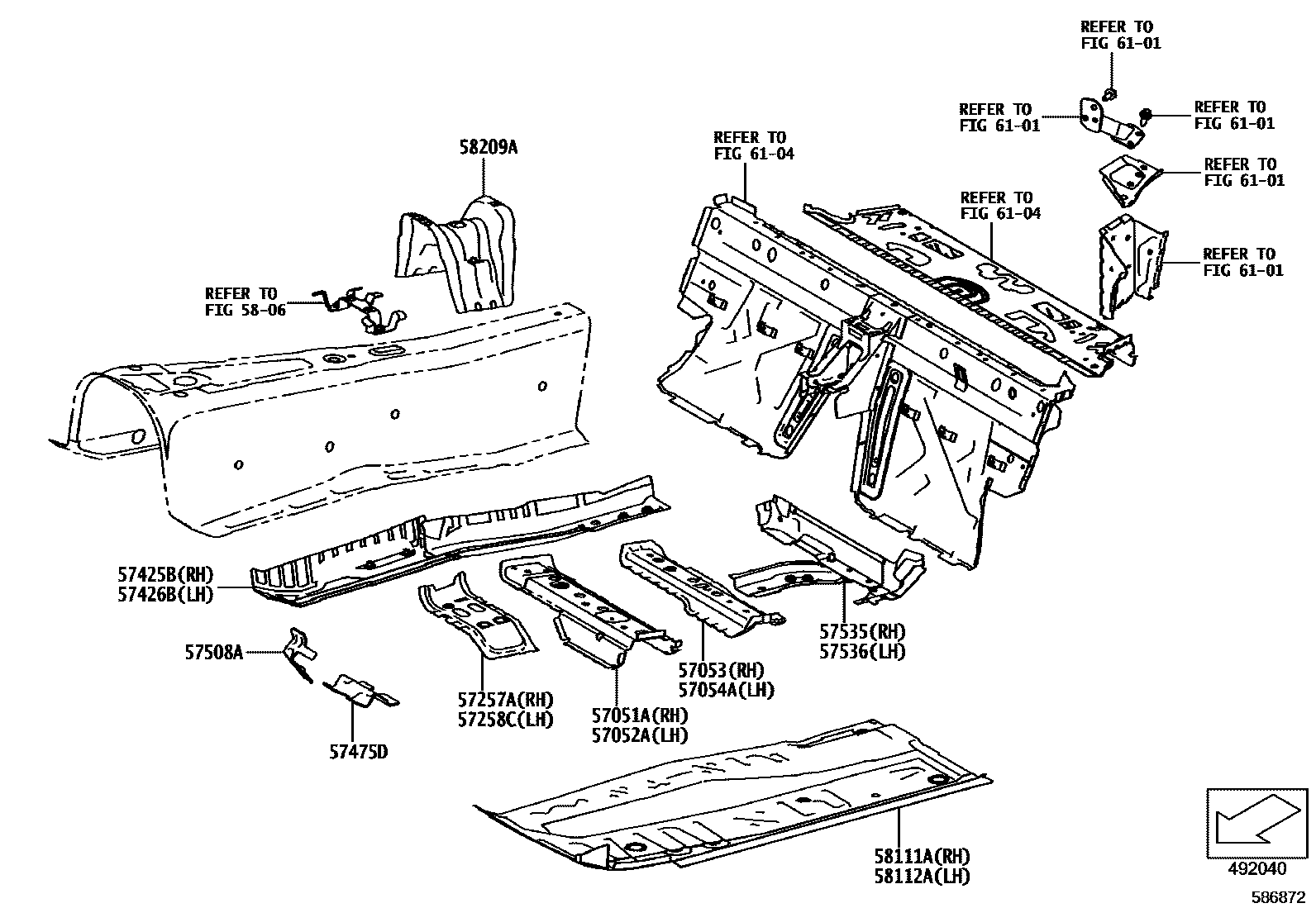

Toyota SUPRA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-WAA01iDB42201903-202002

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-WAA01iDB42201903-202002

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-WAA01iDB42201903-202002

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-WAA01iDB42201903-202002

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main58017-WAA01iDB42201903-202002

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main58018-WAA01iDB42201903-202002

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57427-WAA01iDB42201903-202002

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57428-WAA01iDB42201903-202002

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main58185-WAA02iDB42201903-202002

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main55151-WAA02iDB42201903-202002

57535BRACE, FRONT FLOOR, RH

main57505-WAA01iDB42201903-202002

57536BRACE, FRONT FLOOR, LH

main57506-WAA01iDB42201903-202002

5806

58111APAN, FRONT FLOOR, RH

main58111-WAA01iDB42201903-202002

58112APANEL, FRONT FLOOR, LH

main58112-WAA01iDB42201903-202002

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-WAA01iDB42201903-202002

6101

6104

18 parts on this diagram · 5 diagrams in section
