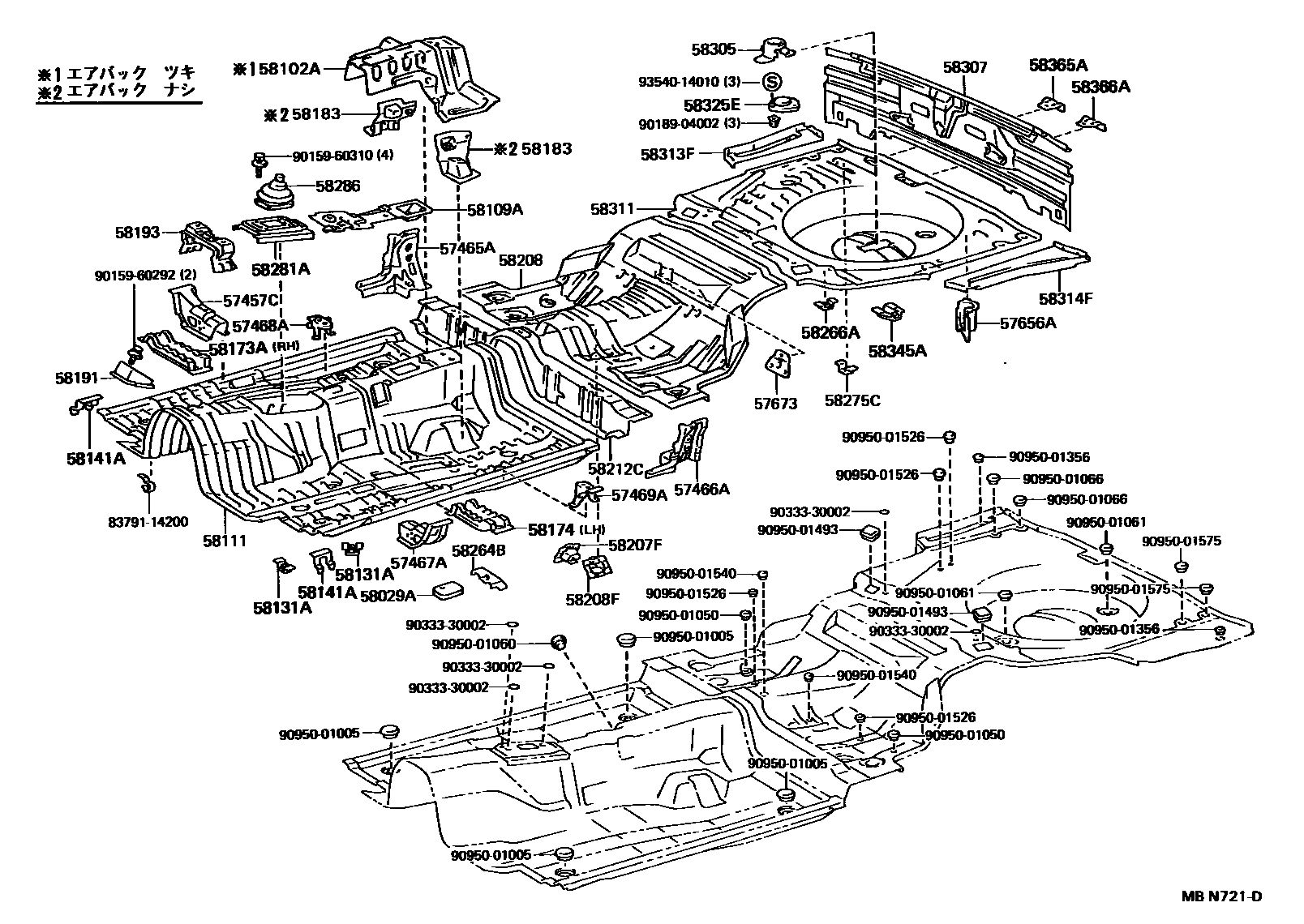

Toyota SUPRA — FLOOR PAN & LOWER BACK PANEL
57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58109ARETAINER SUB-ASSY, PARKING BRAKE
58111PAN, FRONT FLOOR
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58141APROTECTOR, FRONT FLOOR SERVICE HOLE, NO.1
58173ADEFLECTOR, FRONT FLOOR STONE, RH
58174DEFLECTOR, FRONT FLOOR STONE, LH
58183BRACKET, FRONT SEAT MOUNTING, INNER
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH
58208PAN, CENTER FLOOR
58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH
58212CPAN, CENTER FLOOR, FRONT
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58266ABRACKET, FUEL TUBE CLAMP
58275CBRACKET, WIRE HARNESS PROTECTOR
58281ACOVER, TRANSMISSION AUXILIARY
58286BOOT, SHIFT & SELECT LEVER, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58365ABRACKET, FUEL TANK SUPPORT, RH
58366ABRACKET, FUEL TANK SUPPORT, LH
8379114200
main83791-14200
9015960292
main90159-60292
9015960310
main90159-60310
9018904002
main90189-04002
9033330002
main90333-30002
9095001005
main90950-01005
9095001050
main90950-01050
9095001060
main90950-01060
9095001061
main90950-01061
9095001066
main90950-01066
9095001356
main90950-01356
9095001493
main90950-01493
9095001526
main90950-01526
9095001540
main90950-01540
9095001575
main90950-01575
9354014010
main93540-14010
53 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota SUPRA
This section contains 53 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota SUPRA. Key components include: BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH, GUSSET, CENTER FLOOR CROSSMEMBER, RH, GUSSET, CENTER FLOOR CROSSMEMBER, LH, BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH, BRACKET, FRONT SEAT, OUTSIDE, REAR RH.
