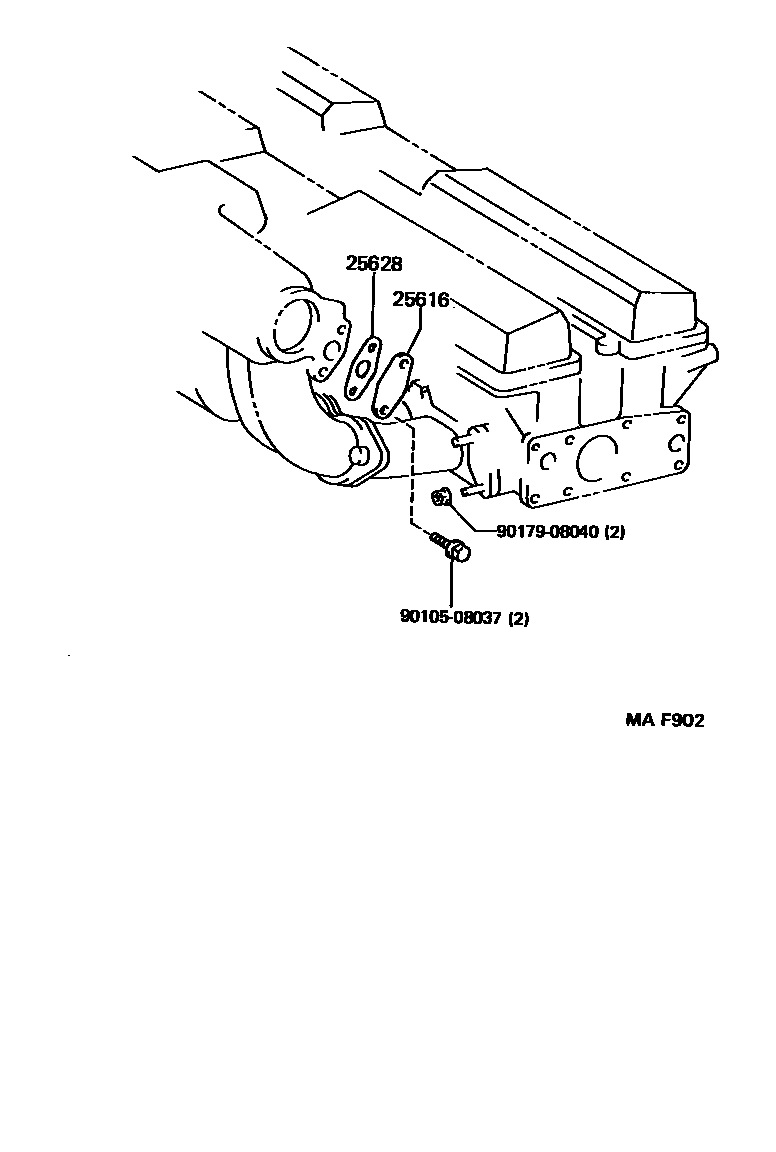

Toyota SUPRA — EXHAUST GAS RECIRCULATION SYSTEM

25616PLATE, HOLE COVER(FOR EGR PIPE)

main25617-42010i198808-199008

main25617-42020i198808-198809

25628GASKET, EGR INLET

main25628-42010i198808-198908

main25628-42020i198908-199008

9010508037

main90105-08037

9017908040

main90179-08040

4 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota SUPRA

This section contains 4 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota SUPRA. Key components include: PLATE, HOLE COVER(FOR EGR PIPE), GASKET, EGR INLET.
