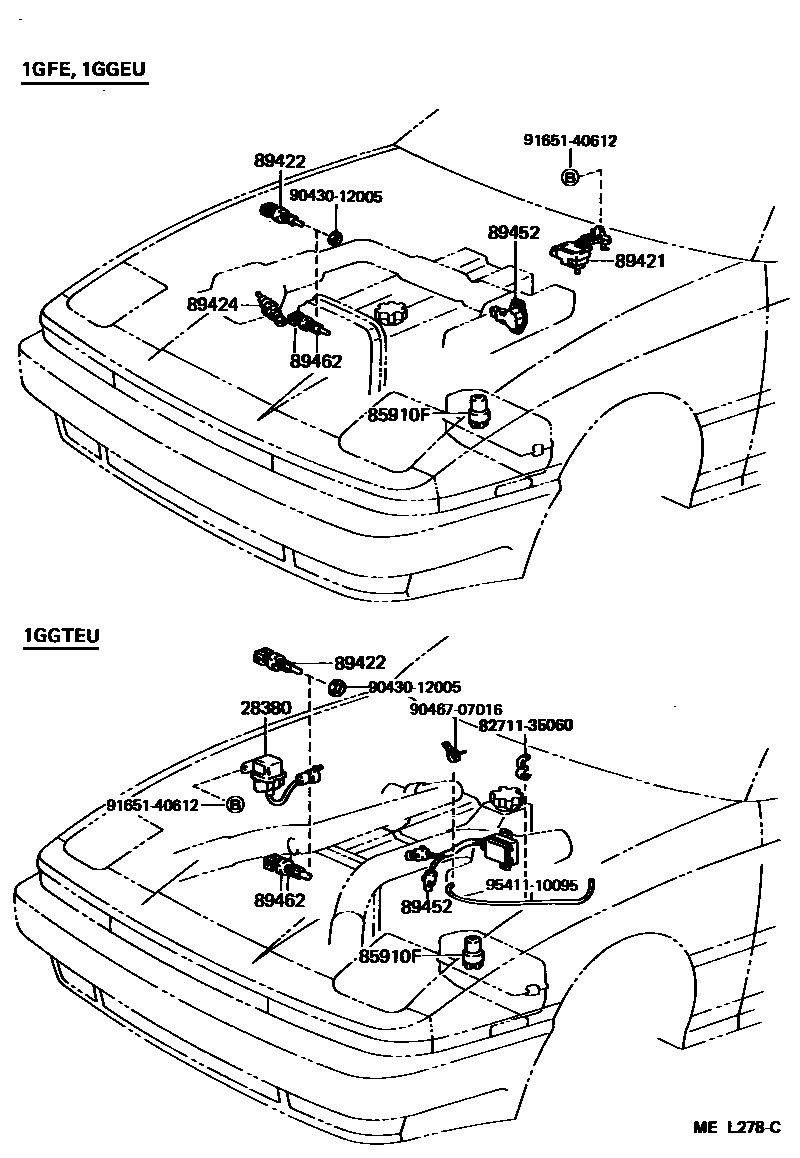

Toyota SUPRA — ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
85910FRELAY, COMPUTER (FOR EFI)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35060
9043012005
main90430-12005
9046707016
main90467-07016
9165140612
main91651-40612
9541110095
main95411-10095
12 parts on this diagram · 4 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota SUPRA
This section contains 29 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SUPRA. Key components include: RELAY ASSY, FUEL PUMP, RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI).
