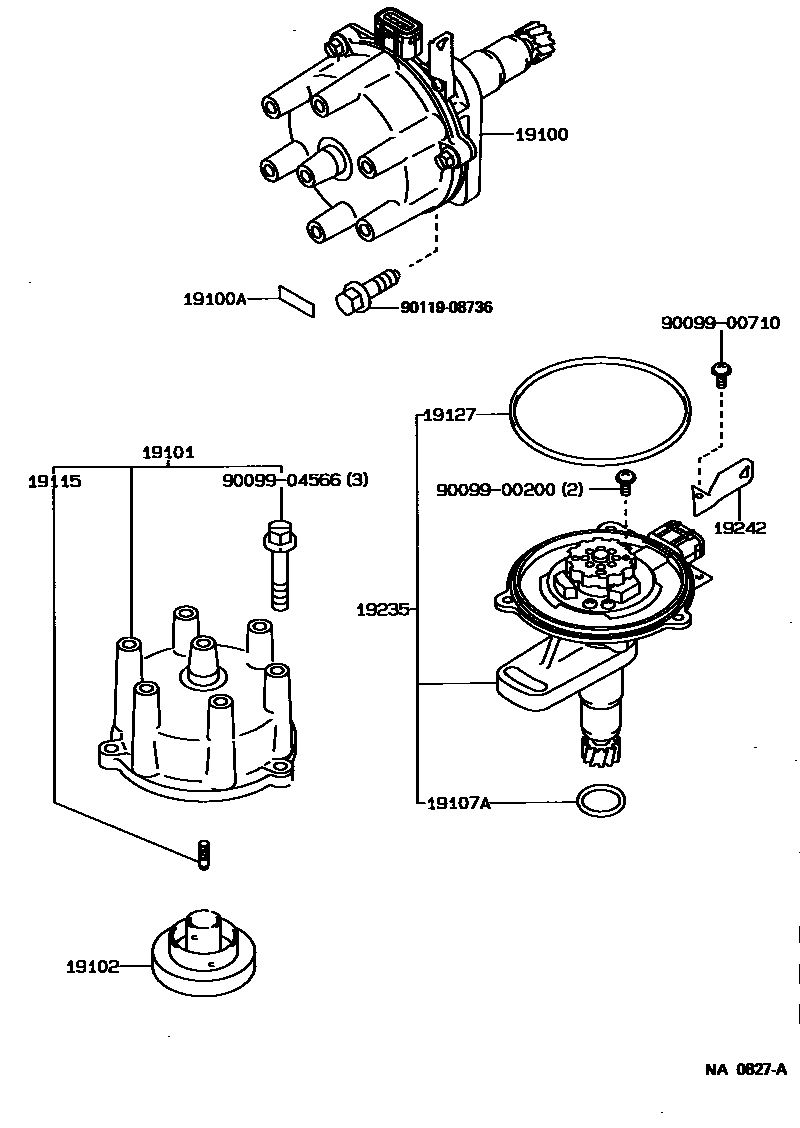

Toyota SUPRA — DISTRIBUTOR
19100DISTRIBUTOR ASSY
19100ATAPE, SEALING
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19127PACKING, DUST PROOF
19235HOUSING, DISTRIBUTOR
9009900200
main90099-00200
9009900710
main90099-00710
9009904566
main90099-04566
9011908736
main90119-08736
13 parts on this diagram · 4 diagrams in section
DISTRIBUTOR for Toyota SUPRA
This section contains 24 genuine Toyota parts for the DISTRIBUTOR system of the Toyota SUPRA. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING.
