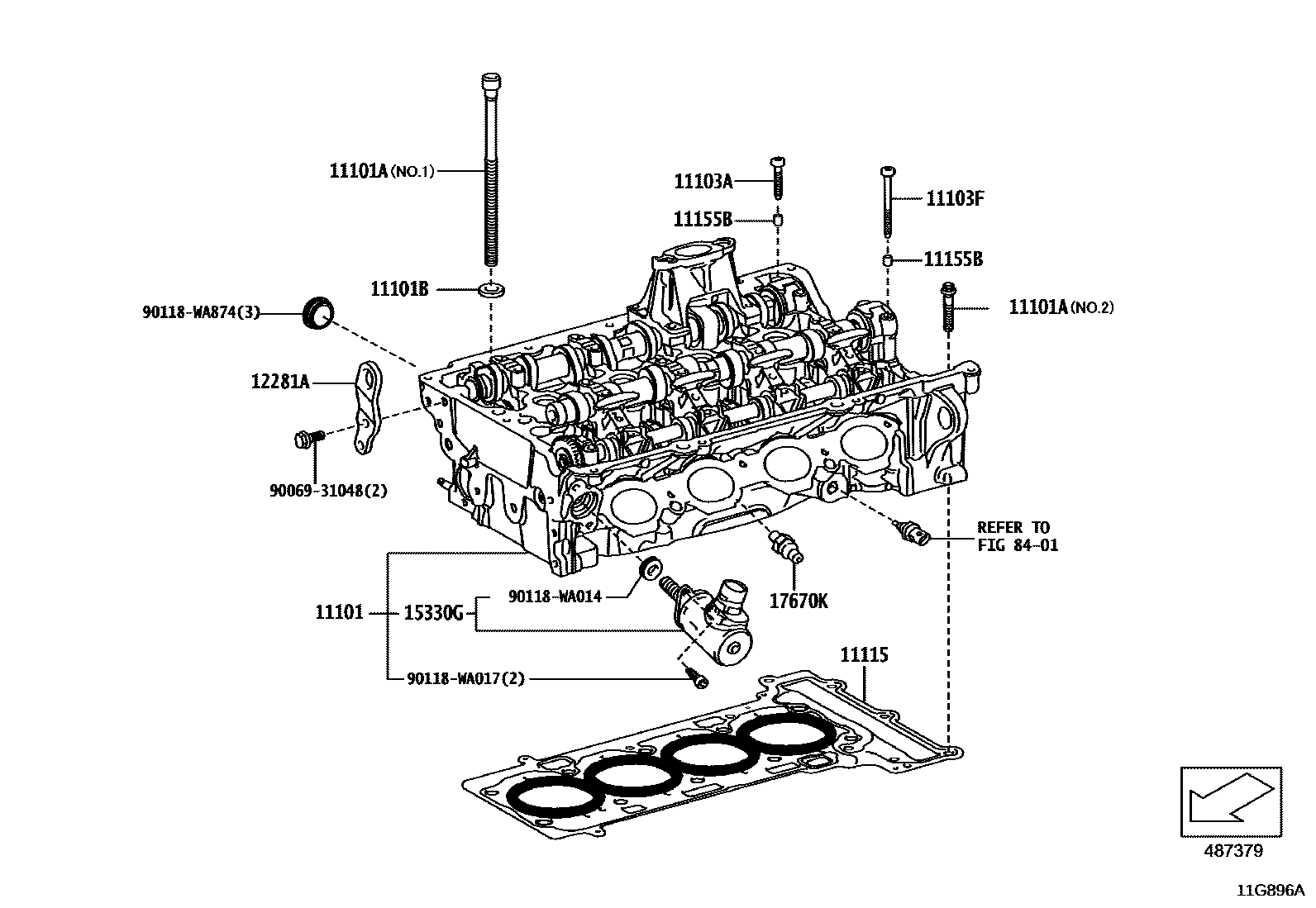

Toyota SUPRA — CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103FBOLT(FOR CAMSHAFT HOUSING SET)
11115GASKET, CYLINDER HEAD
11155BPIN, RING
12281AHANGER, ENGINE, NO.1
17670KVALVE ASSY, AIR BY-PASS
8401SWITCH & RELAY & COMPUTER
9006931048
main90069-31048
90118WA014
main90118-WA014
90118WA017
main90118-WA017
90118WA874
main90118-WA874
15 parts on this diagram · 7 diagrams in section
CYLINDER HEAD for Toyota SUPRA
This section contains 41 genuine Toyota parts for the CYLINDER HEAD system of the Toyota SUPRA. Key components include: HEAD SUB-ASSY, CYLINDER, BOLT(FOR CYLINDER HEAD SET), WASHER, PLATE(FOR CYLINDER HEAD SET), SENSOR, CAMSHAFT POSITION, BOLT(FOR CAMSHAFT HOUSING SET).
