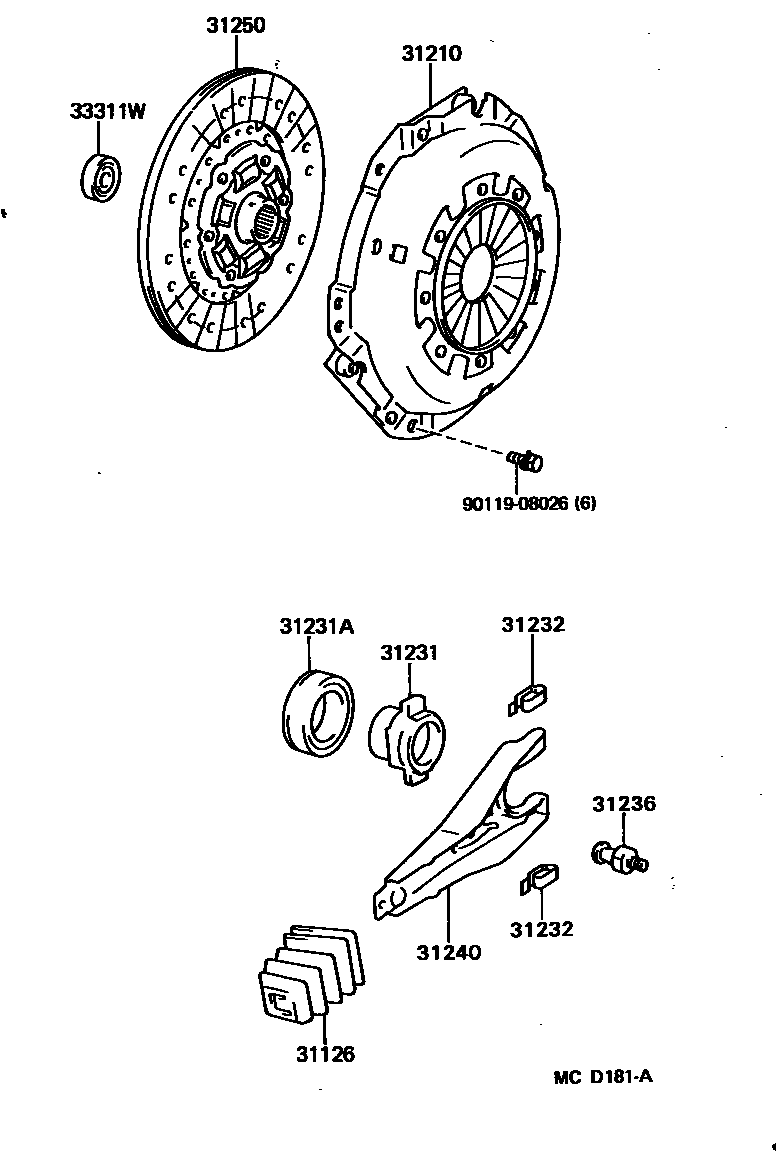

Toyota SUPRA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iGA70..5F198602-198808

31210COVER ASSY, CLUTCH

main31210-14150iMA70..5F198701-198808

main31210-22050iGA70..5F..GTT198602-198808

sub31210-35150

main31210-22070iGA70..5F..(G,S)198602-198808

sub31210-30220

main31210-22080iGA70..5F..GT198602-198808

sub31210-22100

31231HUB, CLUTCH RELEASE BEARING

main31231-14040iMA70..5F198701-198808

main31231-36070iGA70..5F198602-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iGA70..5F198602-198808

main90363-45012iMA70..5F198701-198808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iGA70..5F198602-198808

main31232-35020iGA70..5F198808-198808

31236BALL, RELEASE FORK

main31236-30060iGA70..5F198602-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-14030iMA70..5F198701-198711

main31204-14031iMA70..5F198711-198808

main31204-20090iGA70..5F198602-198808

main31204-35050iGA70..5F198808-198808

31250DISC ASSY, CLUTCH

main31250-14170iGA70..5F..(G,GT,S)198602-198808

sub31250-14171

main31250-14180iMA70..5F198701-198704

main31250-14181iMA70..5F198704-198808

sub31250-14182

main31250-22220iGA70..5F..GTT198602-198808

sub31250-22221

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iMA70..5F198701-198808

sub90363-12024

main90363-12003iGA70..5F198602-198808

9011908026

main90119-08026

10 parts on this diagram · 2 diagrams in section
